IdleController Class Reference

#include <idle_thread.h>

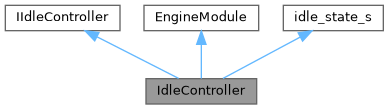

Inheritance diagram for IdleController:

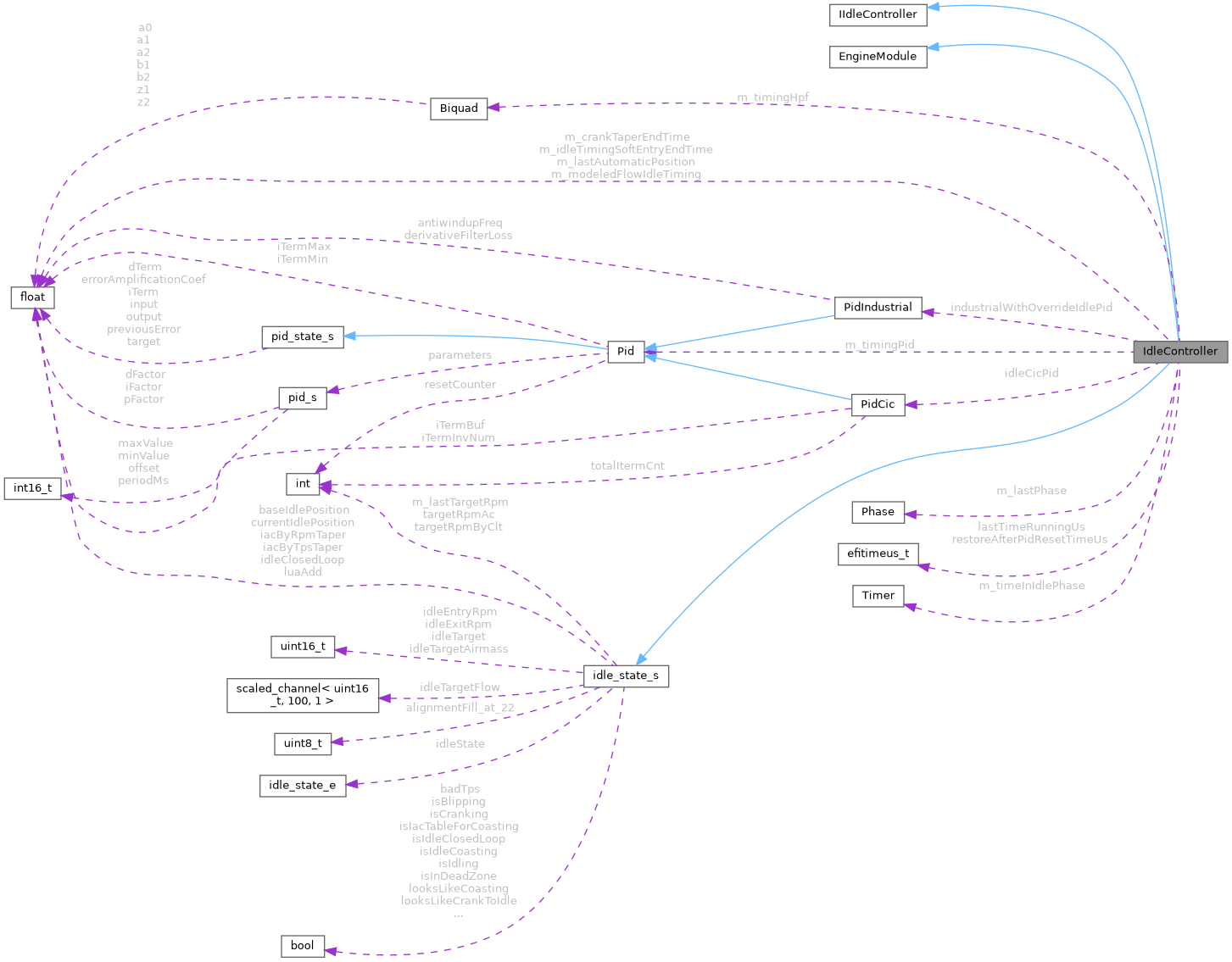

Collaboration diagram for IdleController:

Public Types
using	interface_t = IdleController
Public Types inherited from IIdleController
enum class	Phase : uint8_t {   Cranking , Idling , Coasting , CrankToIdleTaper ,   Running }

Public Member Functions
void	init ()
float	getIdlePosition (float rpm)
TargetInfo	getTargetRpm (float clt) override
Phase	determinePhase (float rpm, TargetInfo targetRpm, SensorResult tps, float vss, float crankingTaperFraction) override
float	getCrankingTaperFraction (float clt) const override
percent_t	getCrankingOpenLoop (float clt) const override
percent_t	getRunningOpenLoop (IIdleController::Phase phase, float rpm, float clt, SensorResult tps) override
percent_t	getOpenLoop (Phase phase, float rpm, float clt, SensorResult tps, float crankingTaperFraction) override
float	getIdleTimingAdjustment (float rpm) override
float	getIdleTimingAdjustment (float rpm, float targetRpm, Phase phase)
float	getClosedLoop (IIdleController::Phase phase, float tpsPos, float rpm, float targetRpm) override
void	onConfigurationChange (engine_configuration_s const *previousConfig) override final
void	onFastCallback () override final
void	onEngineStop () override final
bool	isIdlingOrTaper () const override
bool	isCoastingAdvance () const override
Phase	getCurrentPhase () const override
Pid *	getIdlePid ()
void	updateLtit (float rpm, float clt, bool acActive, bool fan1Active, bool fan2Active, float idleIntegral)
void	onIgnitionStateChanged (bool ignitionOn) override
Public Member Functions inherited from EngineModule
virtual void	initNoConfiguration ()
virtual void	setDefaultConfiguration ()
virtual void	onSlowCallback ()
virtual bool	needsDelayedShutoff ()
virtual void	onEnginePhase (float, efitick_t, angle_t, angle_t)

Data Fields
PidIndustrial	industrialWithOverrideIdlePid
PidCic	idleCicPid
Data Fields inherited from idle_state_s
idle_state_e	idleState = (idle_state_e)0
percent_t	baseIdlePosition = (percent_t)0
percent_t	iacByTpsTaper = (percent_t)0
bool	mightResetPid: 1 {}
bool	shouldResetPid: 1 {}
bool	wasResetPid: 1 {}
bool	mustResetPid: 1 {}
bool	isCranking: 1 {}
bool	isIacTableForCoasting: 1 {}
bool	needReset: 1 {}
bool	isInDeadZone: 1 {}
bool	isBlipping: 1 {}
bool	badTps: 1 {}
bool	looksLikeRunning: 1 {}
bool	looksLikeCoasting: 1 {}
bool	looksLikeCrankToIdle: 1 {}
bool	isIdleCoasting: 1 {}
bool	isIdleClosedLoop: 1 {}
bool	isIdling: 1 {}
bool	unusedBit_19_16: 1 {}
bool	unusedBit_19_17: 1 {}
bool	unusedBit_19_18: 1 {}
bool	unusedBit_19_19: 1 {}
bool	unusedBit_19_20: 1 {}
bool	unusedBit_19_21: 1 {}
bool	unusedBit_19_22: 1 {}
bool	unusedBit_19_23: 1 {}
bool	unusedBit_19_24: 1 {}
bool	unusedBit_19_25: 1 {}
bool	unusedBit_19_26: 1 {}
bool	unusedBit_19_27: 1 {}
bool	unusedBit_19_28: 1 {}
bool	unusedBit_19_29: 1 {}
bool	unusedBit_19_30: 1 {}
bool	unusedBit_19_31: 1 {}
uint16_t	idleTarget = (uint16_t)0
uint16_t	idleEntryRpm = (uint16_t)0
uint16_t	idleExitRpm = (uint16_t)0
uint8_t	alignmentFill_at_22 [2] = {}
int	targetRpmByClt = (int)0
int	targetRpmAc = (int)0
percent_t	iacByRpmTaper = (percent_t)0
percent_t	luaAdd = (percent_t)0
int	m_lastTargetRpm = (int)0
percent_t	idleClosedLoop = (percent_t)0
percent_t	currentIdlePosition = (percent_t)0
uint16_t	idleTargetAirmass = (uint16_t)0
scaled_channel< uint16_t, 100, 1 >	idleTargetFlow = (uint16_t)0

Private Attributes
Phase	m_lastPhase = Phase::Cranking
efitimeus_t	restoreAfterPidResetTimeUs = 0
efitimeus_t	lastTimeRunningUs = 0
float	m_crankTaperEndTime = 0.0f
float	m_idleTimingSoftEntryEndTime = 0.0f
Timer	m_timeInIdlePhase
float	m_lastAutomaticPosition = 0
Pid	m_timingPid
float	m_modeledFlowIdleTiming = 0
Biquad	m_timingHpf

Detailed Description

Definition at line 56 of file idle_thread.h.

Member Typedef Documentation

interface_t

using IdleController::interface_t = IdleController

Definition at line 59 of file idle_thread.h.

Member Function Documentation

determinePhase()

IIdleController::Phase IdleController::determinePhase ( float  rpm, IIdleController::TargetInfo  targetRpm, SensorResult  tps, float  vss, float  crankingTaperFraction  )

overridevirtual

Implements IIdleController.

Definition at line 61 of file idle_thread.cpp.

                                                                                                                                                            {
#if EFI_SHAFT_POSITION_INPUT
    if (!engine->rpmCalculator.isRunning()) {
        return Phase::Cranking;
    }
    badTps = !tps;

    if (badTps) {
        // If the TPS has failed, assume the engine is running
        return Phase::Running;
    }

    // if throttle pressed, we're out of the idle corner
    if (tps.Value > engineConfiguration->idlePidDeactivationTpsThreshold) {
        return Phase::Running;
    }

    // If rpm too high (but throttle not pressed), we're coasting
    // ALSO, if still in the cranking taper, disable coasting
  if (rpm > targetRpm.IdleExitRpm) {
        looksLikeCoasting = true;
    } else if (rpm < targetRpm.IdleEntryRpm) {
        looksLikeCoasting = false;
    }

    looksLikeCrankToIdle = crankingTaperFraction < 1;
    if (looksLikeCoasting && !looksLikeCrankToIdle) {
        return Phase::Coasting;
    }

    // If the vehicle is moving too quickly, disable CL idle
    auto maxVss = engineConfiguration->maxIdleVss;
    looksLikeRunning = maxVss != 0 && vss > maxVss;
    if (looksLikeRunning) {
        return Phase::Running;
    }

    // If still in the cranking taper, disable closed loop idle
    if (looksLikeCrankToIdle) {
        return Phase::CrankToIdleTaper;
    }
#endif // EFI_SHAFT_POSITION_INPUT

    // If we are entering idle, and the PID settings are aggressive, it's good to make a soft entry upon entering closed loop
    if (m_crankTaperEndTime == 0.0f) {
        m_crankTaperEndTime = engine->fuelComputer.running.timeSinceCrankingInSecs;
        m_idleTimingSoftEntryEndTime = m_crankTaperEndTime + engineConfiguration->idleTimingSoftEntryTime;
    }

    // No other conditions met, we are idling!
    return Phase::Idling;
}

Referenced by getIdlePosition().

Here is the call graph for this function:

Here is the caller graph for this function:

getClosedLoop()

float IdleController::getClosedLoop ( IIdleController::Phase  phase, float  tpsPos, float  rpm, float  targetRpm  )

overridevirtual

Returns

idle valve position percentage for automatic closed loop mode

Implements IIdleController.

Definition at line 244 of file idle_thread.cpp.

                                                                                                        {
    auto idlePid = getIdlePid();

    if (shouldResetPid && !wasResetPid) {
        needReset = idlePid->getIntegration() <= 0 || mustResetPid;
        // this is not-so valid since we have open loop first for this?
        // we reset only if I-term is negative, because the positive I-term is good - it keeps RPM from dropping too low
        if (needReset) {
            idlePid->reset();
            mustResetPid = false;
        }
        shouldResetPid = false;
        wasResetPid = true;
    }

    // todo: move this to pid_s one day
    industrialWithOverrideIdlePid.antiwindupFreq = engineConfiguration->idle_antiwindupFreq;
    industrialWithOverrideIdlePid.derivativeFilterLoss = engineConfiguration->idle_derivativeFilterLoss;

    efitimeus_t nowUs = getTimeNowUs();

    isIdleClosedLoop = phase == IIdleController::Phase::Idling;

    if (!isIdleClosedLoop) {
        // Don't store old I and D terms if PID doesn't work anymore.
        // Otherwise they will affect the idle position much later, when the throttle is closed.¿
        shouldResetPid = true;
        mustResetPid = true;
        idleState = TPS_THRESHOLD;

        // We aren't idling, so don't apply any correction.  A positive correction could inhibit a return to idle.
        m_lastAutomaticPosition = 0;
        return 0;
    }

    bool acToggleJustTouched = engine->module<AcController>().unmock().timeSinceStateChange.getElapsedSeconds() < 0.5f /*second*/;
    // check if within the dead zone
    isInDeadZone = !acToggleJustTouched && std::abs(rpm - targetRpm) <= engineConfiguration->idlePidRpmDeadZone;
    if (isInDeadZone) {
        idleState = RPM_DEAD_ZONE;
        // current RPM is close enough, no need to change anything
        return m_lastAutomaticPosition;
    }

    // When rpm < targetRpm, there's a risk of dropping RPM too low - and the engine dies out.
    // So PID reaction should be increased by adding extra percent to PID-error:
    percent_t errorAmpCoef = 1.0f;
    if (rpm < targetRpm) {
        errorAmpCoef += (float)engineConfiguration->pidExtraForLowRpm / PERCENT_MULT;
    }

    // if PID was previously reset, we store the time when it turned on back (see errorAmpCoef correction below)
    if (wasResetPid) {
        restoreAfterPidResetTimeUs = nowUs;
        wasResetPid = false;
    }
    // increase the errorAmpCoef slowly to restore the process correctly after the PID reset
    // todo: move restoreAfterPidResetTimeUs to idle?
    efitimeus_t timeSincePidResetUs = nowUs - restoreAfterPidResetTimeUs;
    // todo: add 'pidAfterResetDampingPeriodMs' setting
    errorAmpCoef = interpolateClamped(0, 0, MS2US(/*engineConfiguration->pidAfterResetDampingPeriodMs*/1000), errorAmpCoef, timeSincePidResetUs);
    // If errorAmpCoef > 1.0, then PID thinks that RPM is lower than it is, and controls IAC more aggressively
    idlePid->setErrorAmplification(errorAmpCoef);

    percent_t newValue = idlePid->getOutput(targetRpm, rpm, FAST_CALLBACK_PERIOD_MS / 1000.0f);
    idleState = PID_VALUE;

    // the state of PID has been changed, so we might reset it now, but only when needed (see idlePidDeactivationTpsThreshold)
    mightResetPid = true;

    // Apply PID Multiplier if used
    if (engineConfiguration->useIacPidMultTable) {
        float engineLoad = getFuelingLoad();
        float multCoef = interpolate3d(
            config->iacPidMultTable,
            config->iacPidMultLoadBins, engineLoad,
            config->iacPidMultRpmBins, rpm
        );
        // PID can be completely disabled of multCoef==0, or it just works as usual if multCoef==1
        newValue = interpolateClamped(0, 0, 1, newValue, multCoef);
    }

    // Apply PID Deactivation Threshold as a smooth taper for TPS transients.
    // if tps==0 then PID just works as usual, or we completely disable it if tps>=threshold
    // TODO: should we just remove this? It reduces the gain if your zero throttle stop isn't perfect,
    // which could give unstable results.
    newValue = interpolateClamped(0, newValue, engineConfiguration->idlePidDeactivationTpsThreshold, 0, tpsPos);

    m_lastAutomaticPosition = newValue;
    return newValue;
}

Referenced by getIdlePosition().

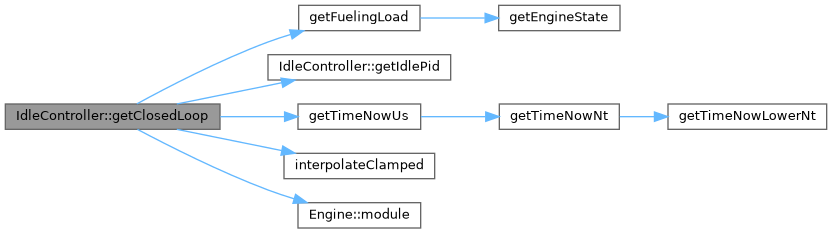

Here is the call graph for this function:

Here is the caller graph for this function:

getCrankingOpenLoop()

float IdleController::getCrankingOpenLoop ( float  clt ) const

overridevirtual

Implements IIdleController.

Definition at line 119 of file idle_thread.cpp.

                                                         {
    return interpolate2d(clt, config->cltCrankingCorrBins, config->cltCrankingCorr);
}

Referenced by getOpenLoop().

Here is the call graph for this function:

Here is the caller graph for this function:

getCrankingTaperFraction()

float IdleController::getCrankingTaperFraction ( float  clt ) const

overridevirtual

Implements IIdleController.

Definition at line 114 of file idle_thread.cpp.

                                                              {
    float taperDuration = interpolate2d(clt, config->afterCrankingIACtaperDurationBins, config->afterCrankingIACtaperDuration);
    return (float)engine->rpmCalculator.getRevolutionCounterSinceStart() / taperDuration;
}

Referenced by getIdlePosition().

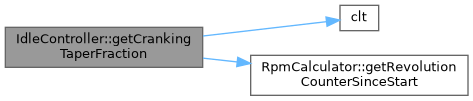

Here is the call graph for this function:

Here is the caller graph for this function:

getCurrentPhase()

Phase IdleController::getCurrentPhase ( ) const

inlineoverridevirtual

Implements IIdleController.

Definition at line 96 of file idle_thread.h.

                                           {
        return m_lastPhase;
    }

Referenced by LongTermIdleTrim::update().

Here is the caller graph for this function:

getIdlePid()

Pid * IdleController::getIdlePid ( )

inline

Definition at line 107 of file idle_thread.h.

                       {
    #if EFI_IDLE_PID_CIC
        if (engineConfiguration->useCicPidForIdle) {
            return &idleCicPid;
        }
    #endif /* EFI_IDLE_PID_CIC */
        return &industrialWithOverrideIdlePid;
    }

Referenced by applyPidSettings(), getClosedLoop(), getIdlePosition(), init(), onConfigurationChange(), and onEngineStop().

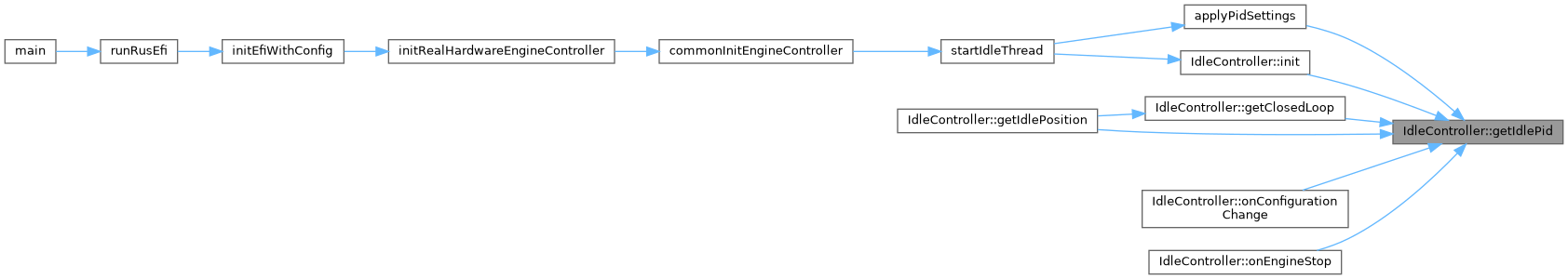

Here is the caller graph for this function:

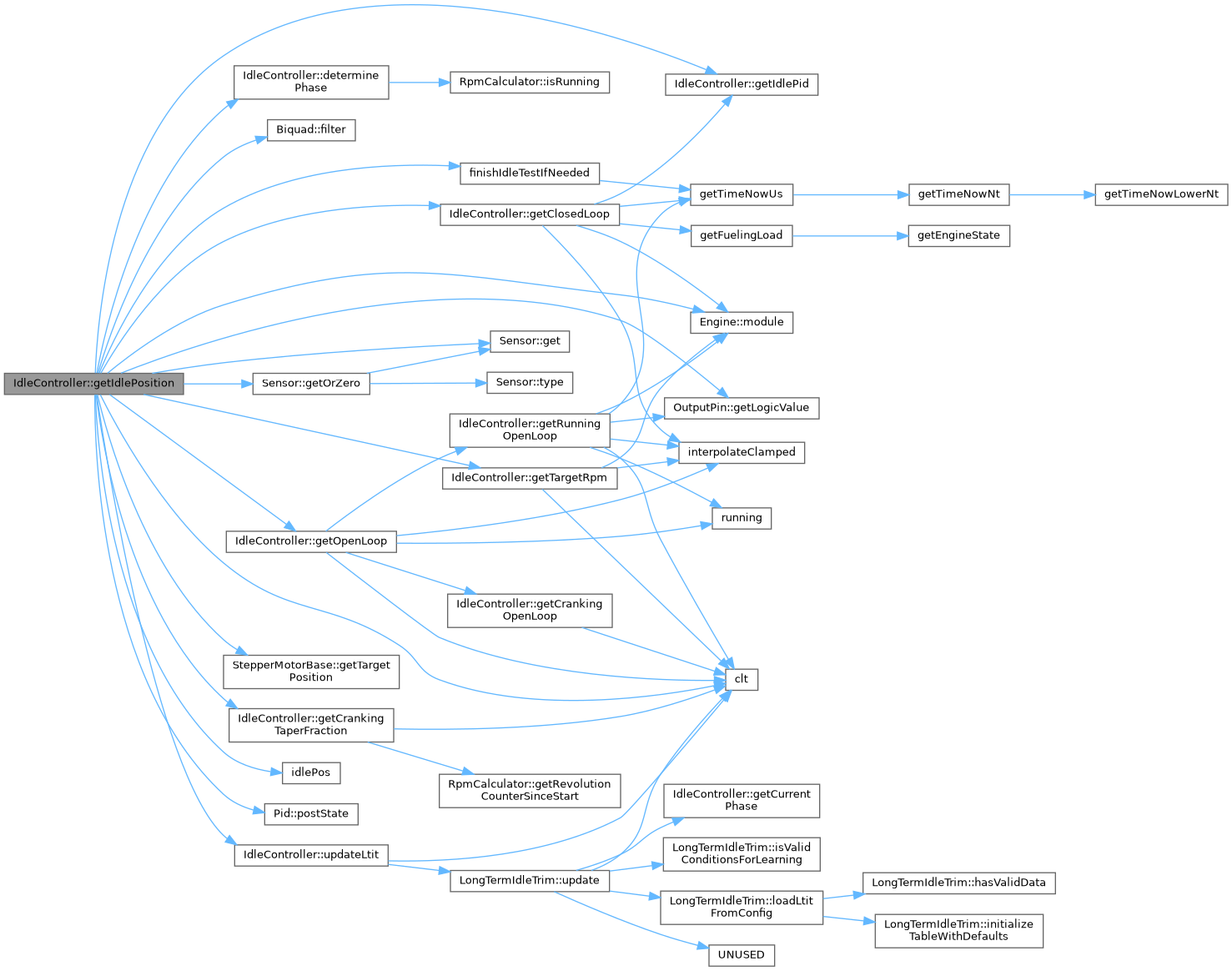

getIdlePosition()

float IdleController::getIdlePosition

(

float

rpm

)

Definition at line 336 of file idle_thread.cpp.

                                               {
#if EFI_SHAFT_POSITION_INPUT

        // Simplify hardware CI: we borrow the idle valve controller as a PWM source for various stimulation tasks
        // The logic in this function is solidly unit tested, so it's not necessary to re-test the particulars on real hardware.
        #ifdef HARDWARE_CI
            return config->cltIdleCorrTable[0][0];
        #endif

        bool useModeledFlow = engineConfiguration->modeledFlowIdle;

    /*
     * Here we have idle logic thread - actual stepper movement is implemented in a separate
     * working thread see stepper.cpp
     */
        getIdlePid()->iTermMin = engineConfiguration->idlerpmpid_iTermMin;
        getIdlePid()->iTermMax = engineConfiguration->idlerpmpid_iTermMax;

        // On failed sensor, use 0 deg C - should give a safe highish idle
        float clt = Sensor::getOrZero(SensorType::Clt);
        auto tps = Sensor::get(SensorType::DriverThrottleIntent);

        // Compute the target we're shooting for
        auto targetRpm = getTargetRpm(clt);
        m_lastTargetRpm = targetRpm.ClosedLoopTarget;

        // Determine cranking taper (modeled flow does no taper of open loop)
        float crankingTaper = useModeledFlow ? 1 : getCrankingTaperFraction(clt);

        // Determine what operation phase we're in - idling or not
        float vehicleSpeed = Sensor::getOrZero(SensorType::VehicleSpeed);
        auto phase = determinePhase(rpm, targetRpm, tps, vehicleSpeed, crankingTaper);

        // update TS flag
        isIdling = (phase == Phase::Idling) || (phase == Phase::CrankToIdleTaper);

    if (phase != m_lastPhase && phase == Phase::Idling) {
        // Just entered idle, reset timer
            m_timeInIdlePhase.reset();
      }

        m_lastPhase = phase;

        finishIdleTestIfNeeded();

            // Always apply open loop correction
        percent_t iacPosition = getOpenLoop(phase, rpm, clt, tps, crankingTaper);
            baseIdlePosition = iacPosition;
            // Force closed loop operation for modeled flow
            auto idleMode = useModeledFlow ? IM_AUTO : engineConfiguration->idleMode;

            // If TPS is working and automatic mode enabled, add any closed loop correction
            if (tps.Valid && idleMode == IM_AUTO) {
                if (useModeledFlow && phase != Phase::Idling) {
                    auto idlePid = getIdlePid();
                    idlePid->reset();
                }
                auto closedLoop = getClosedLoop(phase, tps.Value, rpm, targetRpm.ClosedLoopTarget);
                idleClosedLoop = closedLoop;
                iacPosition += closedLoop;
            } else {
              isIdleClosedLoop = false;
            }

            iacPosition = clampPercentValue(iacPosition);

// todo: while is below disabled for unit tests?
#if EFI_TUNER_STUDIO && (EFI_PROD_CODE || EFI_SIMULATOR)

            // see also tsOutputChannels->idlePosition
            getIdlePid()->postState(engine->outputChannels.idleStatus);


        extern StepperMotor iacMotor;
        engine->outputChannels.idleStepperTargetPosition = iacMotor.getTargetPosition();
#endif /* EFI_TUNER_STUDIO */
        if (useModeledFlow && phase != Phase::Cranking) {
            float totalAirmass = 0.01 * iacPosition * engineConfiguration->idleMaximumAirmass;
            idleTargetAirmass = totalAirmass;

            bool shouldAdjustTiming = engineConfiguration->useIdleTimingPidControl && phase == Phase::Idling;

            // extract hiqh frequency content to be handled by timing
            float timingAirmass = shouldAdjustTiming ? m_timingHpf.filter(totalAirmass) : 0;

            // Convert from airmass delta -> timing
            m_modeledFlowIdleTiming = interpolate2d(timingAirmass, engineConfiguration->airmassToTimingBins, engineConfiguration->airmassToTimingValues);

            // Handle the residual low frequency content with airflow
            float idleAirmass = totalAirmass - timingAirmass;
            float airflowKgPerH = 3.6 * 0.001 * idleAirmass * rpm / 60 * engineConfiguration->cylindersCount / 2;
            idleTargetFlow = airflowKgPerH;

            // Convert from desired flow -> idle valve position
            float idlePos = interpolate2d(
                airflowKgPerH,
                engineConfiguration->idleFlowEstimateFlow,
                engineConfiguration->idleFlowEstimatePosition
            );

            iacPosition = idlePos;
        }

        currentIdlePosition = iacPosition;

    bool acActive = engine->module<AcController>().unmock().acButtonState;
    bool fan1Active = enginePins.fanRelay.getLogicValue();
    bool fan2Active = enginePins.fanRelay2.getLogicValue();
    updateLtit(rpm, clt, acActive, fan1Active, fan2Active, getIdlePid()->getIntegration());

        return iacPosition;
#else
        return 0;
#endif // EFI_SHAFT_POSITION_INPUT

}

Here is the call graph for this function:

getIdleTimingAdjustment() [1/2]

float IdleController::getIdleTimingAdjustment ( float  rpm )

overridevirtual

Implements IIdleController.

Definition at line 207 of file idle_thread.cpp.

                                                       {
    return getIdleTimingAdjustment(rpm, m_lastTargetRpm, m_lastPhase);
}

Referenced by getIdleTimingAdjustment().

Here is the call graph for this function:

Here is the caller graph for this function:

getIdleTimingAdjustment() [2/2]

float IdleController::getIdleTimingAdjustment	(	float	rpm,
		float	targetRpm,
		Phase	phase
	)

Definition at line 211 of file idle_thread.cpp.

                                                                                     {
    // if not enabled, do nothing
    if (!engineConfiguration->useIdleTimingPidControl) {
        return 0;
    }

    // If not idling, do nothing
    if (phase != Phase::Idling) {
        m_timingPid.reset();
        return 0;
    }

    if (engineConfiguration->idleTimingSoftEntryTime > 0.0f) {
        // Use interpolation for correction taper
        m_timingPid.setErrorAmplification(interpolateClamped(m_crankTaperEndTime, 0.0f, m_idleTimingSoftEntryEndTime, 1.0f, engine->fuelComputer.running.timeSinceCrankingInSecs));
    }

    if (engineConfiguration->modeledFlowIdle) {
        return m_modeledFlowIdleTiming;
    } else {
        // We're now in the idle mode, and RPM is inside the Timing-PID regulator work zone!
        return m_timingPid.getOutput(targetRpm, rpm, FAST_CALLBACK_PERIOD_MS / 1000.0f);
    }
}

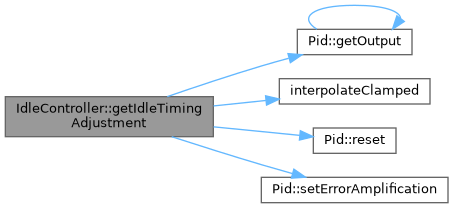

Here is the call graph for this function:

getOpenLoop()

percent_t IdleController::getOpenLoop ( Phase  phase, float  rpm, float  clt, SensorResult  tps, float  crankingTaperFraction  )

overridevirtual

Implements IIdleController.

Definition at line 183 of file idle_thread.cpp.

                                                                                                                      {
    percent_t crankingValvePosition = getCrankingOpenLoop(clt);

    isCranking = phase == Phase::Cranking;
    isIdleCoasting = phase == Phase::Coasting || (phase == Phase::Running && engineConfiguration->modeledFlowIdle);

    // if we're cranking, nothing more to do.
    if (isCranking) {
        return crankingValvePosition;
    }

    // If coasting (and enabled), use the coasting position table instead of normal open loop
    isIacTableForCoasting = engineConfiguration->useIacTableForCoasting && isIdleCoasting;
    if (isIacTableForCoasting) {
        return interpolate2d(rpm, config->iacCoastingRpmBins, config->iacCoasting);
    }

    percent_t running = getRunningOpenLoop(phase, rpm, clt, tps);

    // Interpolate between cranking and running over a short time
    // This clamps once you fall off the end, so no explicit check for >1 required
    return interpolateClamped(0, crankingValvePosition, 1, running, crankingTaperFraction);
}

Referenced by getIdlePosition().

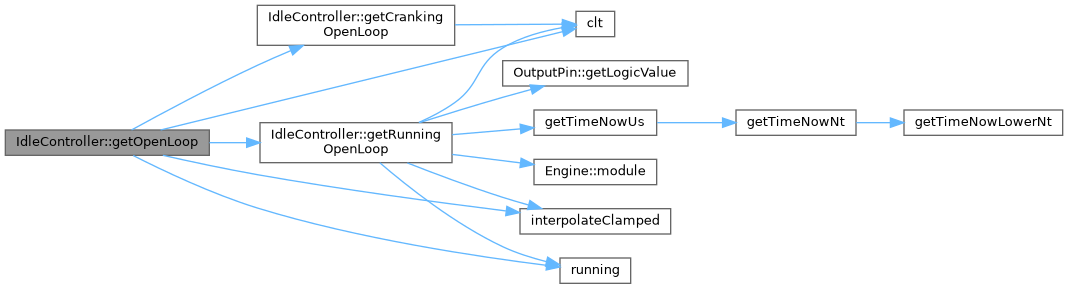

Here is the call graph for this function:

Here is the caller graph for this function:

getRunningOpenLoop()

percent_t IdleController::getRunningOpenLoop ( IIdleController::Phase  phase, float  rpm, float  clt, SensorResult  tps  )

overridevirtual

Implements IIdleController.

Definition at line 123 of file idle_thread.cpp.

                                                                                                               {
    float running = interpolate3d(
        config->cltIdleCorrTable,
        config->rpmIdleCorrBins, m_lastTargetRpm,
        config->cltIdleCorrBins, clt
    );

    // Now we bump it by the AC/fan amount if necessary
    if (engine->module<AcController>().unmock().acButtonState && (phase == Phase::Idling || phase == Phase::CrankToIdleTaper)) {
        running += engineConfiguration->acIdleExtraOffset;
    }

    running += enginePins.fanRelay.getLogicValue() ? engineConfiguration->fan1ExtraIdle : 0;
    running += enginePins.fanRelay2.getLogicValue() ? engineConfiguration->fan2ExtraIdle : 0;

    running += luaAdd;

#if EFI_ANTILAG_SYSTEM
if (engine->antilagController.isAntilagCondition) {
    running += engineConfiguration->ALSIdleAdd;
}
#endif /* EFI_ANTILAG_SYSTEM */

    // 'dashpot' (hold+decay) logic for coasting->idle
    float tpsForTaper = tps.value_or(0);
    efitimeus_t nowUs = getTimeNowUs();
    if (phase == Phase::Running) {
        lastTimeRunningUs = nowUs;
    }
    // imitate a slow pedal release for TPS taper (to avoid engine stalls)
    if (tpsForTaper <= engineConfiguration->idlePidDeactivationTpsThreshold) {
        // make sure the time is not zero
        float timeSinceRunningPhaseSecs = (nowUs - lastTimeRunningUs + 1) / US_PER_SECOND_F;
        // we shift the time to implement the hold correction (time can be negative)
        float timeSinceRunningAfterHoldSecs = timeSinceRunningPhaseSecs - engineConfiguration->iacByTpsHoldTime;
        // implement the decay correction (from tpsForTaper to 0)
        tpsForTaper = interpolateClamped(0, engineConfiguration->idlePidDeactivationTpsThreshold, engineConfiguration->iacByTpsDecayTime, tpsForTaper, timeSinceRunningAfterHoldSecs);
    }

    // Now bump it by the specified amount when the throttle is opened (if configured)
    // nb: invalid tps will make no change, no explicit check required
    iacByTpsTaper = interpolateClamped(
        0, 0,
        engineConfiguration->idlePidDeactivationTpsThreshold, engineConfiguration->iacByTpsTaper,
        tpsForTaper);

    running += iacByTpsTaper;

    float airTaperRpmUpperLimit = engineConfiguration->idlePidRpmUpperLimit;
    iacByRpmTaper = interpolateClamped(
        engineConfiguration->idlePidRpmUpperLimit, 0,
        airTaperRpmUpperLimit, engineConfiguration->airByRpmTaper,
        rpm);

    running += iacByRpmTaper;

  // are we clamping open loop part separately? should not we clamp once we have total value?
    return clampPercentValue(running);
}

Referenced by getOpenLoop().

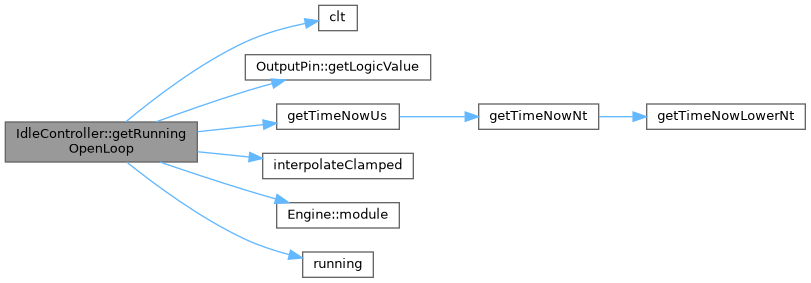

Here is the call graph for this function:

Here is the caller graph for this function:

getTargetRpm()

IIdleController::TargetInfo IdleController::getTargetRpm ( float  clt )

overridevirtual

Implements IIdleController.

Definition at line 27 of file idle_thread.cpp.

                                                                {
    targetRpmByClt = interpolate2d(clt, config->cltIdleRpmBins, config->cltIdleRpm);

  // FIXME: this is running as "RPM target" not "RPM bump" [ie adding to the CLT rpm target]
    // idle air Bump for AC
    // Why do we bump based on button not based on actual A/C relay state?
    // Because AC output has a delay to allow idle bump to happen first, so that the airflow increase gets a head start on the load increase
    // alternator duty cycle has a similar logic
    targetRpmAc = engine->module<AcController>().unmock().acButtonState ? engineConfiguration->acIdleRpmTarget : 0;

    float target = (targetRpmByClt < targetRpmAc) ? targetRpmAc : targetRpmByClt;
    float rpmUpperLimit = engineConfiguration->idlePidRpmUpperLimit;
    float entryRpm = target + rpmUpperLimit;

  // Higher exit than entry to add some hysteresis to avoid bouncing around upper threshold
    float exitRpm = target + 1.5 * rpmUpperLimit;

    // Ramp the target down from the transition RPM to normal over a few seconds
  if (engineConfiguration->idleReturnTargetRamp) {
        // Ramp the target down from the transition RPM to normal over a few seconds
        float timeSinceIdleEntry = m_timeInIdlePhase.getElapsedSeconds();
        target += interpolateClamped(
            0, rpmUpperLimit,
            engineConfiguration->idleReturnTargetRampDuration, 0,
            timeSinceIdleEntry
        );
    }

    idleTarget = target;
    idleEntryRpm = entryRpm;
    idleExitRpm = exitRpm;
    return { target, entryRpm, exitRpm };
}

Referenced by getIdlePosition().

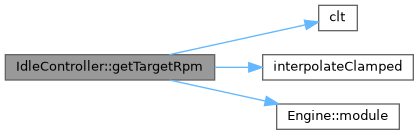

Here is the call graph for this function:

Here is the caller graph for this function:

init()

void IdleController::init

(

)

Definition at line 473 of file idle_thread.cpp.

                          {
    shouldResetPid = false;
    mightResetPid = false;
    wasResetPid = false;
    m_timingPid.initPidClass(&engineConfiguration->idleTimingPid);
    m_timingHpf.configureHighpass(20, 1);
    getIdlePid()->initPidClass(&engineConfiguration->idleRpmPid);
    engine->m_ltit.loadLtitFromConfig();
}

Referenced by startIdleThread().

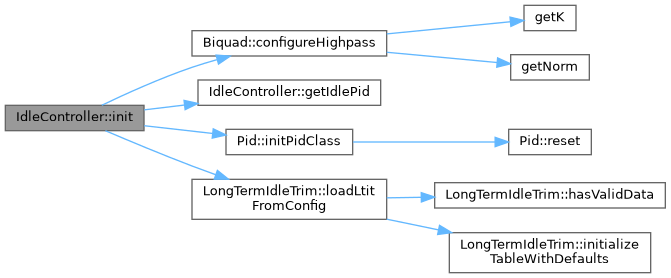

Here is the call graph for this function:

Here is the caller graph for this function:

isCoastingAdvance()

bool IdleController::isCoastingAdvance ( ) const

inlineoverridevirtual

Implements IIdleController.

Definition at line 92 of file idle_thread.h.

                                            {
        return m_lastPhase == Phase::Coasting && engineConfiguration->useIdleAdvanceWhileCoasting;
    }

Referenced by getRunningAdvance().

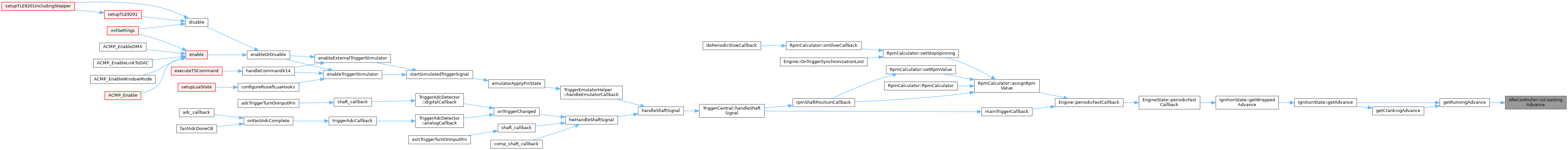

Here is the caller graph for this function:

isIdlingOrTaper()

bool IdleController::isIdlingOrTaper ( ) const

inlineoverridevirtual

Implements IIdleController.

Definition at line 88 of file idle_thread.h.

                                          {
        return m_lastPhase == Phase::Idling || (engineConfiguration->useSeparateIdleTablesForCrankingTaper && m_lastPhase == Phase::CrankToIdleTaper);
    }

Referenced by getRunningAdvance(), and AirmassVeModelBase::getVe().

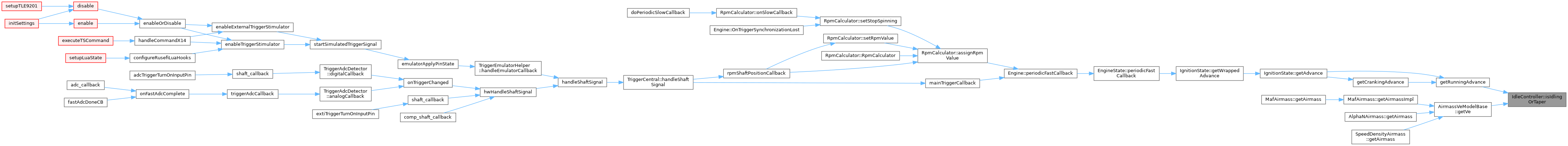

Here is the caller graph for this function:

onConfigurationChange()

void IdleController::onConfigurationChange ( engine_configuration_s const *  previousConfig )

finaloverridevirtual

Reimplemented from EngineModule.

Definition at line 466 of file idle_thread.cpp.

                                                                                               {
#if ! EFI_UNIT_TEST
    shouldResetPid = !previousConfiguration || !getIdlePid()->isSame(&previousConfiguration->idleRpmPid);
    mustResetPid = shouldResetPid;
#endif
}

Here is the call graph for this function:

onEngineStop()

void IdleController::onEngineStop ( )

finaloverridevirtual

Reimplemented from EngineModule.

Definition at line 462 of file idle_thread.cpp.

                                  {
    getIdlePid()->reset();
}

Here is the call graph for this function:

onFastCallback()

void IdleController::onFastCallback ( )

finaloverridevirtual

Reimplemented from EngineModule.

Definition at line 453 of file idle_thread.cpp.

                                    {
#if EFI_SHAFT_POSITION_INPUT
    float position = getIdlePosition(engine->triggerCentral.instantRpm.getInstantRpm());
    applyIACposition(position);
    // huh: why not onIgnitionStateChanged?
    engine->m_ltit.checkIfShouldSave();
#endif // EFI_SHAFT_POSITION_INPUT
}

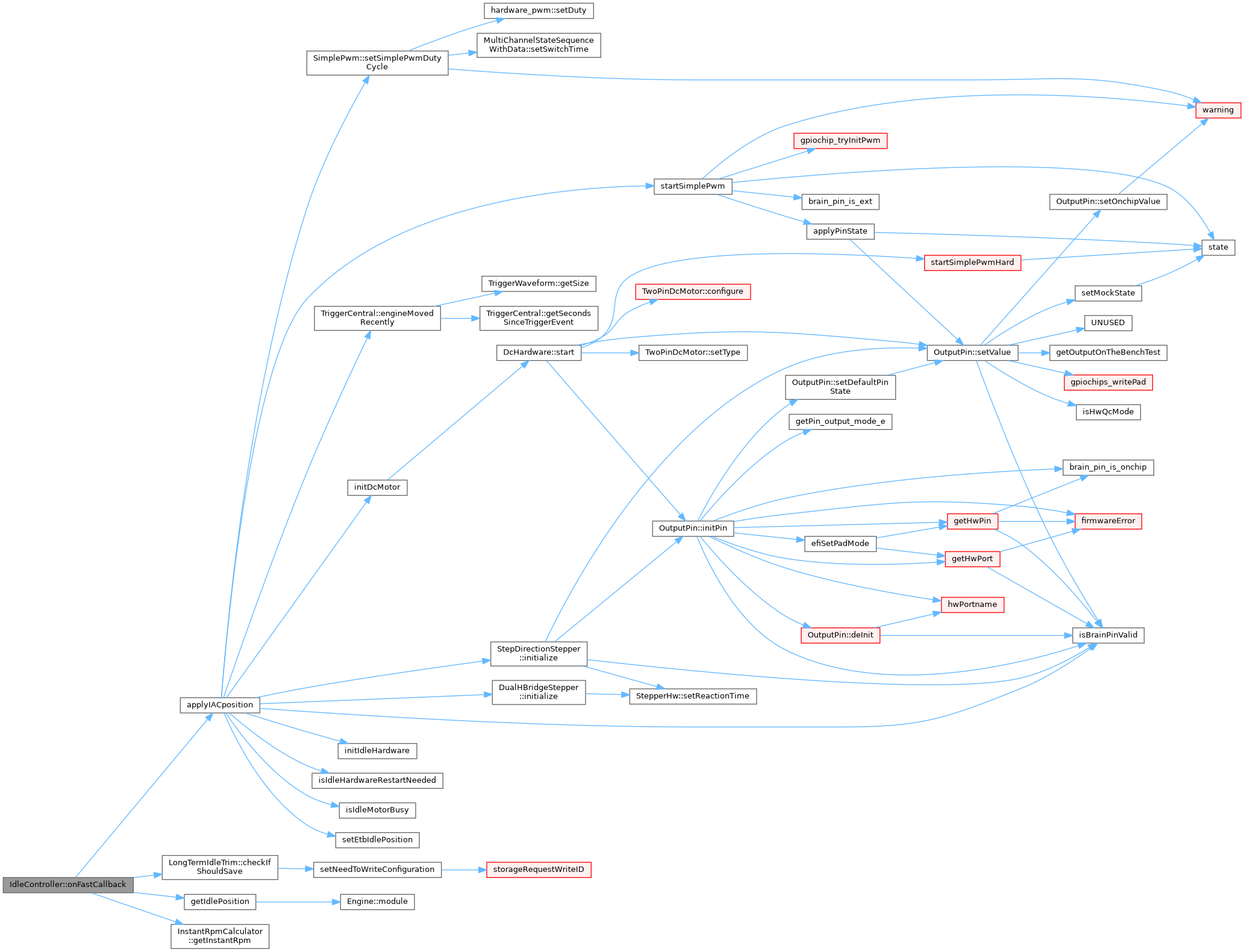

Here is the call graph for this function:

onIgnitionStateChanged()

void IdleController::onIgnitionStateChanged ( bool  ignitionOn )

overridevirtual

Reimplemented from EngineModule.

Definition at line 489 of file idle_thread.cpp.

                                                           {
    engine->m_ltit.onIgnitionStateChanged(ignitionOn);
}

Here is the call graph for this function:

updateLtit()

void IdleController::updateLtit	(	float	rpm,
		float	clt,
		bool	acActive,
		bool	fan1Active,
		bool	fan2Active,
		float	idleIntegral
	)

Definition at line 483 of file idle_thread.cpp.

                                                                                                                         {
    if (engineConfiguration->ltitEnabled) {
        engine->m_ltit.update(rpm, clt, acActive, fan1Active, fan2Active, idleIntegral);
    }
}

Referenced by getIdlePosition().

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

idleCicPid

PidCic IdleController::idleCicPid

Definition at line 104 of file idle_thread.h.

Referenced by getIdlePid().

industrialWithOverrideIdlePid

PidIndustrial IdleController::industrialWithOverrideIdlePid

Definition at line 100 of file idle_thread.h.

Referenced by getClosedLoop(), and getIdlePid().

lastTimeRunningUs

efitimeus_t IdleController::lastTimeRunningUs = 0

private

Definition at line 125 of file idle_thread.h.

Referenced by getRunningOpenLoop().

m_crankTaperEndTime

float IdleController::m_crankTaperEndTime = 0.0f

private

Definition at line 127 of file idle_thread.h.

Referenced by determinePhase(), and getIdleTimingAdjustment().

m_idleTimingSoftEntryEndTime

float IdleController::m_idleTimingSoftEntryEndTime = 0.0f

private

Definition at line 128 of file idle_thread.h.

Referenced by determinePhase(), and getIdleTimingAdjustment().

m_lastAutomaticPosition

float IdleController::m_lastAutomaticPosition = 0

private

Definition at line 133 of file idle_thread.h.

Referenced by getClosedLoop().

m_lastPhase

Phase IdleController::m_lastPhase = Phase::Cranking

private

Definition at line 122 of file idle_thread.h.

Referenced by getCurrentPhase(), getIdlePosition(), getIdleTimingAdjustment(), isCoastingAdvance(), and isIdlingOrTaper().

m_modeledFlowIdleTiming

float IdleController::m_modeledFlowIdleTiming = 0

private

Definition at line 136 of file idle_thread.h.

Referenced by getIdlePosition(), and getIdleTimingAdjustment().

m_timeInIdlePhase

Timer IdleController::m_timeInIdlePhase

private

Definition at line 130 of file idle_thread.h.

Referenced by getIdlePosition(), and getTargetRpm().

m_timingHpf

Biquad IdleController::m_timingHpf

private

Definition at line 137 of file idle_thread.h.

Referenced by getIdlePosition(), and init().

m_timingPid

Pid IdleController::m_timingPid

private

Definition at line 135 of file idle_thread.h.

Referenced by getIdleTimingAdjustment(), and init().

restoreAfterPidResetTimeUs

efitimeus_t IdleController::restoreAfterPidResetTimeUs = 0

private

Definition at line 123 of file idle_thread.h.

Referenced by getClosedLoop().

---

The documentation for this class was generated from the following files:

• controllers/actuators/idle_thread.h
• controllers/actuators/idle_thread.cpp
