board_configuration.cpp File Reference

Functions
static void	setupDefaultSensorInputs ()
void	setBoardConfigOverrides ()
void	setBoardDefaultConfiguration ()
	Hardware board-specific default configuration (GPIO pins, ADC channels, SPI configs etc.) More...
int	getBoardMetaDcOutputsCount ()
int	getBoardMetaOutputsCount ()
int	getBoardMetaLowSideOutputsCount ()
Gpio *	getBoardMetaOutputs ()

Variables
static Gpio	OUTPUTS []
static Gpio	SBC_OUTPUTS []

Function Documentation

getBoardMetaDcOutputsCount()

int getBoardMetaDcOutputsCount

(

)

Definition at line 77 of file board_configuration.cpp.

                                 {
    return 2;
}

getBoardMetaLowSideOutputsCount()

int getBoardMetaLowSideOutputsCount

(

)

Definition at line 125 of file board_configuration.cpp.

                                      {
    if (engineConfiguration->engineType == engine_type_e::GM_SBC) {
        return getBoardMetaOutputsCount();
    }
    return getBoardMetaOutputsCount() - 1 - 6;
}

Here is the call graph for this function:

getBoardMetaOutputs()

Gpio* getBoardMetaOutputs

(

)

Definition at line 132 of file board_configuration.cpp.

                            {
    if (engineConfiguration->engineType == engine_type_e::GM_SBC) {
        return SBC_OUTPUTS;
    }
    return OUTPUTS;
}

getBoardMetaOutputsCount()

int getBoardMetaOutputsCount

(

)

Definition at line 118 of file board_configuration.cpp.

                               {
    if (engineConfiguration->engineType == engine_type_e::GM_SBC) {
        return efi::size(SBC_OUTPUTS);
    }
    return efi::size(OUTPUTS);
}

setBoardConfigOverrides()

void setBoardConfigOverrides

(

)

Definition at line 29 of file board_configuration.cpp.

                               {
    setHellenMegaEnPin();
    setHellenVbatt();

    hellenMegaAccelerometerPreInitCS2Pin();
  engineConfiguration->isSdCardEnabled = true;
  engineConfiguration->sdCardCsPin = Gpio::H_SPI1_CS1;
    engineConfiguration->sdCardSpiDevice = SPI_DEVICE_1;
    engineConfiguration->spi1mosiPin = Gpio::A7; // not the usual H_SPI1_MOSI since that's CAN2RX
    engineConfiguration->spi1misoPin = Gpio::H_SPI1_MISO;
    engineConfiguration->spi1sckPin = Gpio::H_SPI1_SCK;
    engineConfiguration->is_enabled_spi_1 = true;
    setDefaultHellenAtPullUps();

    engineConfiguration->canTxPin = Gpio::B13;
    engineConfiguration->canRxPin = Gpio::B5;


}

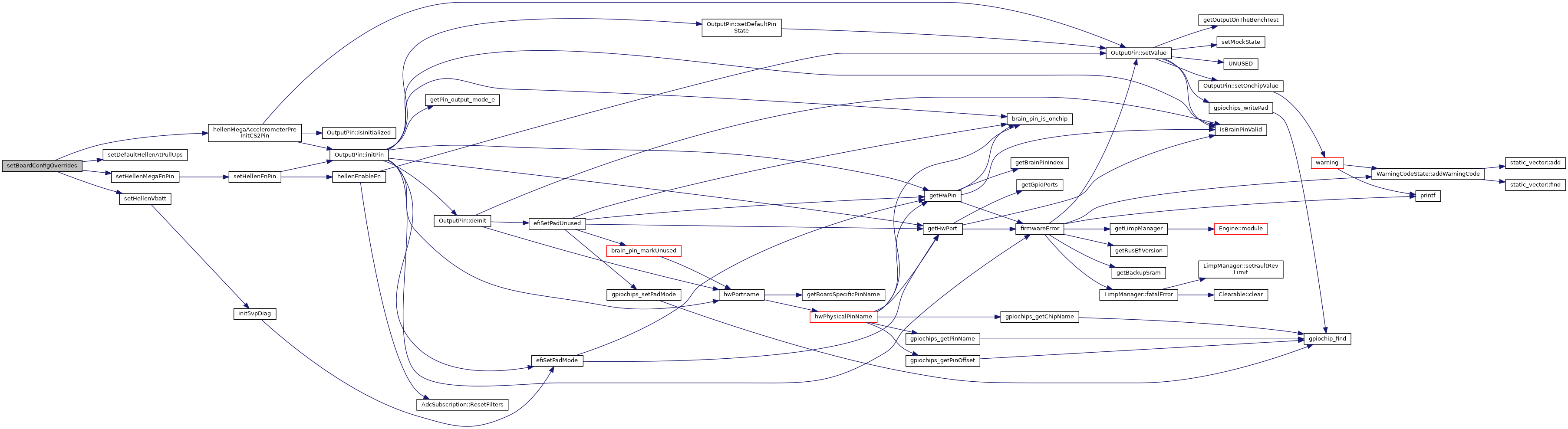

Here is the call graph for this function:

setBoardDefaultConfiguration()

void setBoardDefaultConfiguration

(

)

Hardware board-specific default configuration (GPIO pins, ADC channels, SPI configs etc.)

Hardware board-specific default configuration (GPIO pins, ADC channels, SPI configs etc.)

Hardware board-specific default configuration (GPIO pins, ADC channels, SPI configs etc.)

See also setDefaultEngineConfiguration

!!!!!!!!!!!!!!!!!!

Jimmy best tune https://rusefi.com/online/view.php?msq=626 md_sanci latest tune https://rusefi.com/online/view.php?msq=630

Definition at line 49 of file board_configuration.cpp.

                                    {
    // GM stepper: DC2 positive#4/negative#5 to pins A/B
  // DC1 positive#1/negative#2 to pin D/C
  setupTLE9201IncludingStepper(/*PWM controlPin*/Gpio::MM100_OUT_PWM3, Gpio::MM100_OUT_PWM4, Gpio::MM100_SPI2_MISO);
  setupTLE9201IncludingStepper(/*PWM controlPin*/Gpio::MM100_OUT_PWM5, Gpio::MM100_SPI2_MOSI, Gpio::MM100_USB1ID, 1);

  setHellenMMbaro();

  engineConfiguration->mainRelayPin = Gpio::MM100_IGN7;
  engineConfiguration->fuelPumpPin = Gpio::MM100_IGN8;

        engineConfiguration->injectionPins[0] = Gpio::MM100_COATED_INJ1;
    engineConfiguration->injectionPins[1] = Gpio::MM100_INJ2;
    engineConfiguration->injectionPins[2] = Gpio::MM100_INJ3;
    engineConfiguration->injectionPins[3] = Gpio::MM100_INJ4;
    engineConfiguration->injectionPins[4] = Gpio::MM100_INJ5;
    engineConfiguration->injectionPins[5] = Gpio::MM100_INJ6;

    engineConfiguration->ignitionPins[0] = Gpio::MM100_IGN1;
    engineConfiguration->ignitionPins[1] = Gpio::MM100_IGN2;
    engineConfiguration->ignitionPins[2] = Gpio::MM100_IGN3;
    engineConfiguration->ignitionPins[3] = Gpio::MM100_IGN4;
    engineConfiguration->ignitionPins[4] = Gpio::MM100_IGN5;
    engineConfiguration->ignitionPins[5] = Gpio::MM100_IGN6;

    setupDefaultSensorInputs();
}

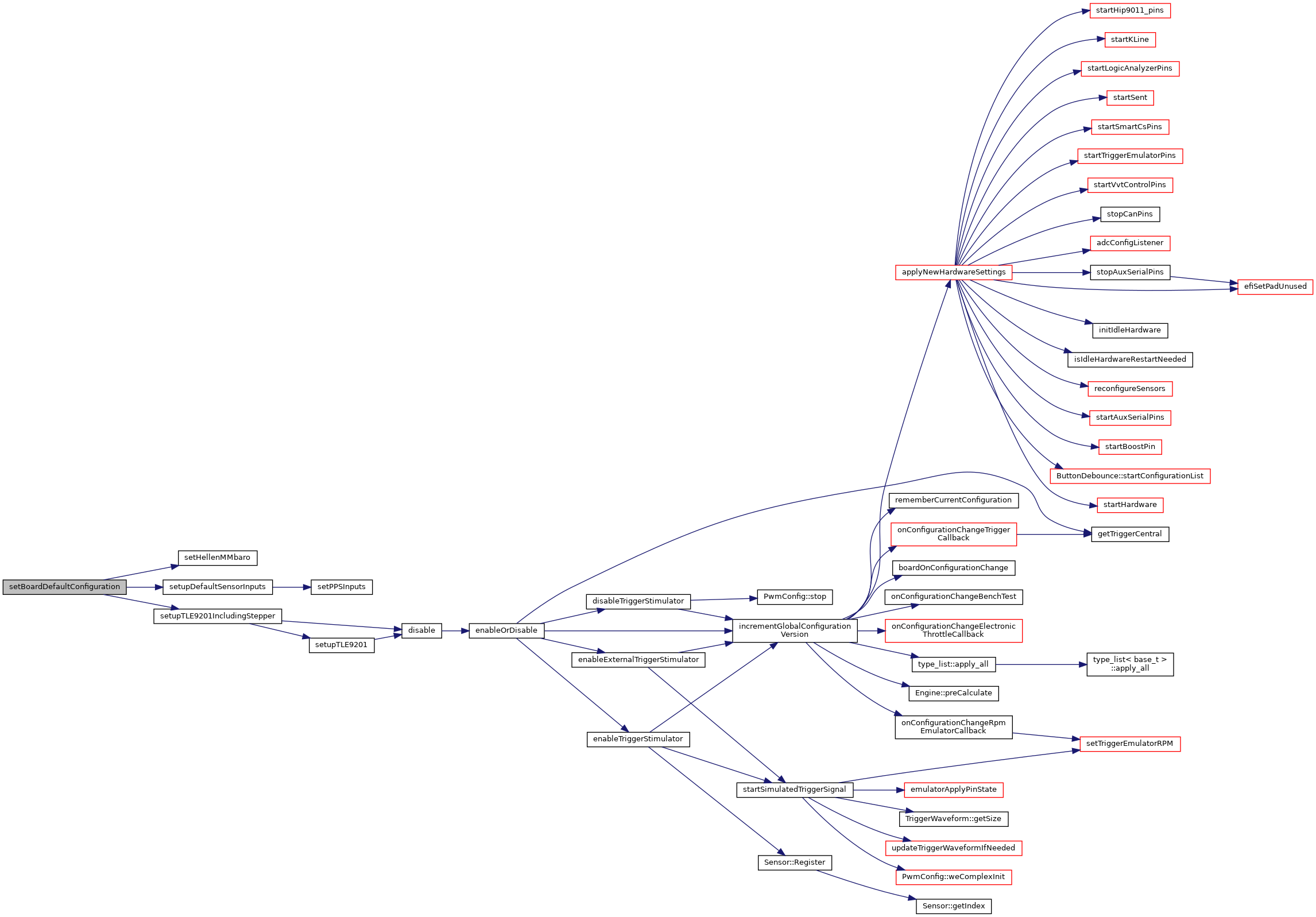

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

See https://rusefi.com/s/uaefi121

Author

Andrey Belomutskiy, (c) 2012-2023

Definition at line 12 of file board_configuration.cpp.

                                       {
    engineConfiguration->tps1_1AdcChannel = MM100_IN_TPS_ANALOG;
    engineConfiguration->tps1_2AdcChannel = MM100_IN_AUX1_ANALOG;
    engineConfiguration->map.sensor.hwChannel = MM100_IN_MAP1_ANALOG;

    setPPSInputs(MM100_IN_PPS_ANALOG, MM100_IN_AUX2_ANALOG);

    engineConfiguration->clt.adcChannel = MM100_IN_CLT_ANALOG;
    engineConfiguration->iat.adcChannel = MM100_IN_IAT_ANALOG;

    engineConfiguration->triggerInputPins[0] = Gpio::MM100_UART8_TX; // VR2 max9924 is the safer default
    engineConfiguration->camInputs[0] = Gpio::MM100_IN_D2; // HALL2
    engineConfiguration->camInputs[1] = Gpio::MM100_IN_D3; // HALL3

  engineConfiguration->vehicleSpeedSensorInputPin = Gpio::MM100_IN_D1;  // HALL1
}

Referenced by setBoardDefaultConfiguration().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

OUTPUTS

Gpio OUTPUTS[]

static

Initial value:

= {
    Gpio::MM100_COATED_INJ1,
    Gpio::MM100_INJ2,
    Gpio::MM100_INJ3,
    Gpio::MM100_INJ4,
    Gpio::MM100_INJ5,
    Gpio::MM100_INJ6,
    Gpio::MM100_SPI2_CS,
    Gpio::MM100_COATED_SPI2_SCK,
    Gpio::MM100_INJ7,
    Gpio::MM100_INJ8,
    Gpio::MM100_OUT_PWM1,
    Gpio::MM100_OUT_PWM2,
    Gpio::MM100_IGN7,
    Gpio::MM100_IGN8,
    Gpio::MM100_LED2_GREEN,
    Gpio::MM100_IGN1,
    Gpio::MM100_IGN2,
    Gpio::MM100_IGN3,
    Gpio::MM100_IGN4,
    Gpio::MM100_IGN5,
    Gpio::MM100_IGN6,
}

Definition at line 81 of file board_configuration.cpp.

Referenced by getBoardMetaOutputs(), and getBoardMetaOutputsCount().

SBC_OUTPUTS

Gpio SBC_OUTPUTS[]

static

Initial value:

= {
    Gpio::MM100_COATED_INJ1,
    Gpio::MM100_INJ2,
    Gpio::MM100_INJ3,
    Gpio::MM100_INJ4,
    Gpio::MM100_INJ5,
    Gpio::MM100_INJ6,
    Gpio::MM100_SPI2_CS,
    Gpio::MM100_COATED_SPI2_SCK,
  Gpio::MM100_IGN8,

}

Definition at line 105 of file board_configuration.cpp.

Referenced by getBoardMetaOutputs(), and getBoardMetaOutputsCount().
