board_configuration.cpp File Reference

Detailed Description

Configuration defaults for the hellen121nissan board.

All fabricated boards use 144 pin MCU

See https://rusefi.com/s/hellen121nissan

Author

andreika prome.nosp@m.theu.nosp@m.s.pcb.nosp@m.@gma.nosp@m.il.co.nosp@m.m

Andrey Belomutskiy, (c) 2012-2020

Definition in file board_configuration.cpp.

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
static void	setupDefaultSensorInputs ()
static void	hellen121_nissan_boardConfigOverrides ()
static void	hellen121_nissan_boardDefaultConfiguration ()
	Board-specific configuration defaults.
int	getBoardMetaOutputsCount ()
Gpio *	getBoardMetaOutputs ()
int	getBoardMetaDcOutputsCount ()
void	setup_custom_board_overrides ()

Variables
static Gpio	OUTPUTS []

Function Documentation

getBoardMetaDcOutputsCount()

int getBoardMetaDcOutputsCount

(

)

Definition at line 160 of file board_configuration.cpp.

                                 {
    return 1;
}

getBoardMetaOutputs()

Gpio * getBoardMetaOutputs

(

)

Definition at line 156 of file board_configuration.cpp.

                            {
    return OUTPUTS;
}

getBoardMetaOutputsCount()

int getBoardMetaOutputsCount

(

)

Definition at line 152 of file board_configuration.cpp.

                               {
    return efi::size(OUTPUTS);
}

hellen121_nissan_boardConfigOverrides()

static void hellen121_nissan_boardConfigOverrides ( )

static

Definition at line 58 of file board_configuration.cpp.

                                                    {
    setHellenVbatt();
    setHellenSdCardSpi3();

    engineConfiguration->etbIo[0].directionPin1 = Gpio::H144_OUT_PWM7;
    engineConfiguration->etbIo[0].directionPin2 = Gpio::H144_OUT_PWM6;
    engineConfiguration->etbIo[0].controlPin = Gpio::D13; // ETB_EN out_pwm1
    engineConfiguration->etb_use_two_wires = true;

    setDefaultHellenAtPullUps();
}

Referenced by setup_custom_board_overrides().

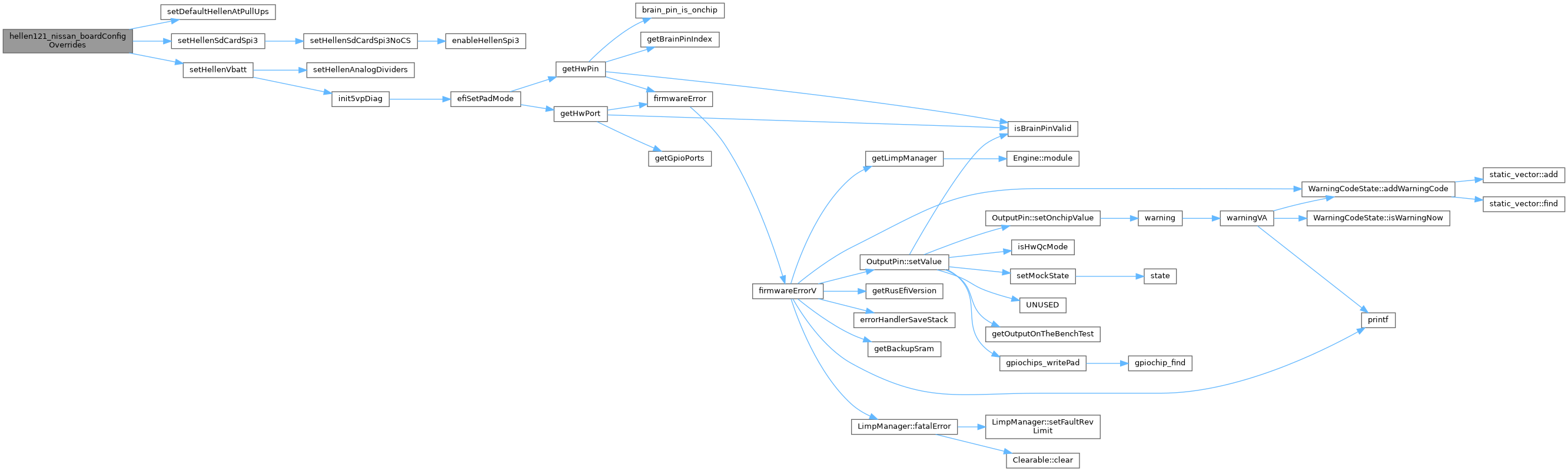

Here is the call graph for this function:

Here is the caller graph for this function:

hellen121_nissan_boardDefaultConfiguration()

static void hellen121_nissan_boardDefaultConfiguration ( )

static

Board-specific configuration defaults.

See also setDefaultEngineConfiguration

Definition at line 77 of file board_configuration.cpp.

                                                         {
    setInjectorPins();
    setIgnitionPins();

    engineConfiguration->displayLogicLevelsInEngineSniffer = true;

    engineConfiguration->enableSoftwareKnock = true;
    engineConfiguration->canNbcType = CAN_BUS_NBC_NONE; // none because handled by Lua!

    setHellenCan();

    engineConfiguration->fuelPumpPin = Gpio::D12;   // OUT_IO9 // 113 Fuel Pump Relay
    engineConfiguration->idle.solenoidPin = Gpio::Unassigned;
//  engineConfiguration->fanPin = Gpio::D12;    // OUT_PWM8
    engineConfiguration->mainRelayPin = Gpio::H144_OUT_IO3;

    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();


    // Some sensible defaults for other options
    setCrankOperationMode();

//  setAlgorithm(engine_load_mode_e::LM_SPEED_DENSITY);
    // at least this starts
    engineConfiguration->fuelAlgorithm = engine_load_mode_e::LM_ALPHA_N;

    engineConfiguration->cranking.rpm = 400;
    engineConfiguration->fanOnTemperature = 85;
    engineConfiguration->fanOffTemperature = 81;

    engineConfiguration->cutFuelOnHardLimit = false;
    engineConfiguration->idlePidRpmUpperLimit = 300;
    engineConfiguration->mapErrorDetectionTooLow = 10;


    // Bosch VQ40 VR56 VK56 0280158007
    engineConfiguration->injector.flow = 296.2;

    strcpy(engineConfiguration->engineMake, ENGINE_MAKE_NISSAN);

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS; // IM_WASTED_SPARK
    engineConfiguration->injectionMode = IM_SEQUENTIAL;

    engineConfiguration->luaOutputPins[0] = Gpio::H144_OUT_IO4; // 104 ETB Relay
    engineConfiguration->luaOutputPins[1] = Gpio::H144_OUT_PWM2; // aux LS1, upstream oxygen heaters

    setPPSCalibration(0.75, 4.45, 0.43, 2.20);

    engineConfiguration->startUpFuelPumpDuration = 4;

    setEtbPID(6.1350, 87.7182, 0.0702);

    // this calibration reminds me of VAG just flipped?
    engineConfiguration->tpsMin = 100;
    engineConfiguration->tpsMax = 889;

    engineConfiguration->tps1SecondaryMin = 891;
    engineConfiguration->tps1SecondaryMax = 102;
    hellenWbo();
}

Referenced by setup_custom_board_overrides().

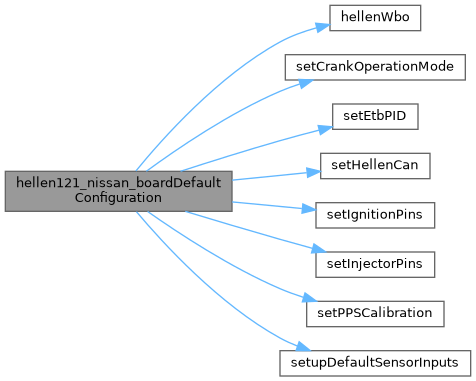

Here is the call graph for this function:

Here is the caller graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 28 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = Gpio::H144_IGN_1;
    engineConfiguration->ignitionPins[1] = Gpio::H144_IGN_2;
    engineConfiguration->ignitionPins[2] = Gpio::H144_IGN_3;
    engineConfiguration->ignitionPins[3] = Gpio::H144_IGN_4;
    engineConfiguration->ignitionPins[4] = Gpio::H144_IGN_5;
    engineConfiguration->ignitionPins[5] = Gpio::H144_IGN_6;
}

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 19 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = Gpio::H144_LS_1;
    engineConfiguration->injectionPins[1] = Gpio::H144_LS_2;
    engineConfiguration->injectionPins[2] = Gpio::H144_LS_3;
    engineConfiguration->injectionPins[3] = Gpio::H144_LS_4;
    engineConfiguration->injectionPins[4] = Gpio::H144_LS_5;
    engineConfiguration->injectionPins[5] = Gpio::H144_LS_6;
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 164 of file board_configuration.cpp.

                                    {
    custom_board_DefaultConfiguration = hellen121_nissan_boardDefaultConfiguration;
    custom_board_ConfigOverrides =  hellen121_nissan_boardConfigOverrides;
}

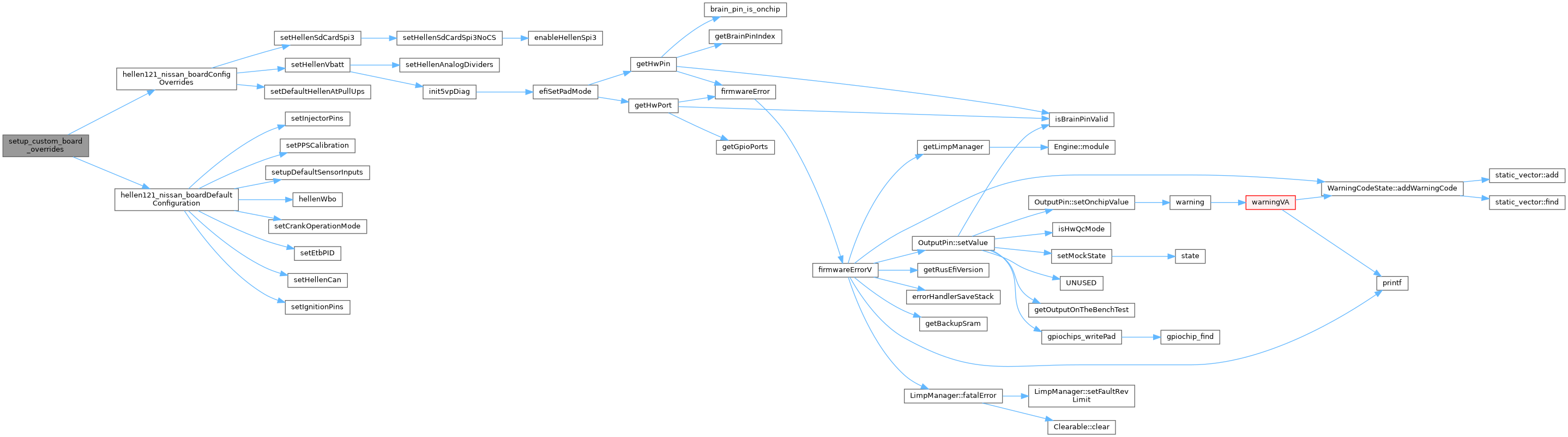

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 37 of file board_configuration.cpp.

                                       {
    // trigger inputs
    engineConfiguration->triggerInputPins[0] = Gpio::H144_IN_CRANK;
    engineConfiguration->triggerInputPins[1] = Gpio::Unassigned;
    // Direct hall-only cam input
    engineConfiguration->camInputs[0] = Gpio::H144_IN_CAM;
    // todo: remove from default since 4 cylinder does not use it
    // todo: this requires unit test change
    engineConfiguration->camInputs[1 * CAMS_PER_BANK] = Gpio::H144_ORIGINAL_MCU_IN_D_AUX4;

    setTPS1Inputs(H144_IN_TPS, H144_IN_AUX1_ANALOG);

    setPPSInputs(H144_IN_PPS, EFI_ADC_14);
    engineConfiguration->mafAdcChannel = H144_IN_O2S;
    engineConfiguration->map.sensor.hwChannel = H144_IN_MAP2;

    engineConfiguration->clt.adcChannel = H144_IN_CLT;

    engineConfiguration->iat.adcChannel = H144_IN_IAT;
}

Here is the call graph for this function:

Variable Documentation

OUTPUTS

Gpio OUTPUTS[]

static

Initial value:

= {
    Gpio::G14,
    Gpio::D12,
    Gpio::D9,
    Gpio::D11,
    Gpio::G7,
    Gpio::F12,
    Gpio::D10,
    Gpio::G8,
    Gpio::F13,
    Gpio::F14,
}

Definition at line 139 of file board_configuration.cpp.

                        {
    Gpio::G14, // 111 Main Relay
    Gpio::D12, // 113 Fuel Pump Relay
    Gpio::D9, // 21 - INJ_5
    Gpio::D11, // 22 - INJ_3
    Gpio::G7, // 23 - INJ_1
    Gpio::F12, // 40 - INJ_6
    Gpio::D10, // 41 - INJ_4
    Gpio::G8, // 42 - INJ_2
    Gpio::F13, // 10 - VTC Left
    Gpio::F14, // 11 - VTC Right
};

Go to the source code of this file.
