board_configuration.cpp File Reference

Detailed Description

Configuration defaults for the Proteus board.

Author

Matthew Kennedy, (c) 2019

Definition in file board_configuration.cpp.

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
Gpio	getCommsLedPin ()
Gpio	getRunningLedPin ()
Gpio	getWarningLedPin ()
static void	setupVbatt ()
static void	setupEtb ()
static void	setupDefaultSensorInputs ()
static void	setupSdCard ()
static void	proteus_boardConfigOverrides ()
static void	proteus_boardDefaultConfiguration ()
	Board-specific configuration defaults.
void	boardPrepareForStop ()
int	getBoardMetaLowSideOutputsCount ()
int	getBoardMetaOutputsCount ()
int	getBoardMetaDcOutputsCount ()
Gpio *	getBoardMetaOutputs ()
void	setup_custom_board_overrides ()

Variables
static const brain_pin_e	injPins []
static const brain_pin_e	ignPins []
static Gpio	PROTEUS_SLINGSHOT_OUTPUTS []
static Gpio	PROTEUS_SBC_OUTPUTS []
static Gpio	PROTEUS_M73_OUTPUTS []
static Gpio	PROTEUS_SUBARU_OUTPUTS []
static Gpio	PROTEUS_CANAM_OUTPUTS []
static Gpio	PROTEUS_HARLEY_OUTPUTS []
static Gpio	PROTEUS_OUTPUTS []

Function Documentation

boardPrepareForStop()

void boardPrepareForStop

(

)

Definition at line 186 of file board_configuration.cpp.

                           {
    // Wake on the CAN RX pin
    palEnableLineEvent(PAL_LINE(GPIOD, 0), PAL_EVENT_MODE_RISING_EDGE);
}

getBoardMetaDcOutputsCount()

int getBoardMetaDcOutputsCount

(

)

Definition at line 340 of file board_configuration.cpp.

                                 {
    if (engineConfiguration->engineType == engine_type_e::PROTEUS_BMW_M73) {
        return 2;
    }
    if (engineConfiguration->engineType == engine_type_e::ME17_9_MISC ||
        engineConfiguration->engineType == engine_type_e::HARLEY ||
        engineConfiguration->engineType == engine_type_e::SUBARU_2011 ||
        engineConfiguration->engineType == engine_type_e::MAVERICK_X3
        ) {
        return 1;
    }
    return 1;
/*    return 2; proteus has two h-b ridges but stim board is short on channels to test :( */
}

getBoardMetaLowSideOutputsCount()

int getBoardMetaLowSideOutputsCount

(

)

Definition at line 264 of file board_configuration.cpp.

                                      {
    if (engineConfiguration->engineType == engine_type_e::SUBARU_2011) {
        return getBoardMetaOutputsCount();
    }
    if (engineConfiguration->engineType == engine_type_e::MAVERICK_X3) {
        return getBoardMetaOutputsCount();
    }
    if (engineConfiguration->engineType == engine_type_e::HARLEY) {
        return getBoardMetaOutputsCount();
    }
    if (engineConfiguration->engineType == engine_type_e::GM_SBC) {
        return getBoardMetaOutputsCount();
    }
    if (engineConfiguration->engineType == engine_type_e::ME17_9_MISC) {
        return getBoardMetaOutputsCount();
    }
    return 16;
}

Here is the call graph for this function:

getBoardMetaOutputs()

Gpio * getBoardMetaOutputs

(

)

Definition at line 355 of file board_configuration.cpp.

                            {
    if (engineConfiguration->engineType == engine_type_e::SUBARU_2011) {
        return PROTEUS_SUBARU_OUTPUTS;
    }
    if (engineConfiguration->engineType == engine_type_e::MAVERICK_X3) {
        return PROTEUS_CANAM_OUTPUTS;
    }
    if (engineConfiguration->engineType == engine_type_e::ME17_9_MISC) {
        return PROTEUS_SLINGSHOT_OUTPUTS;
    }
    if (engineConfiguration->engineType == engine_type_e::HARLEY) {
        return PROTEUS_HARLEY_OUTPUTS;
    }
    if (engineConfiguration->engineType == engine_type_e::GM_SBC) {
        return PROTEUS_SBC_OUTPUTS;
    }
    if (engineConfiguration->engineType == engine_type_e::PROTEUS_BMW_M73) {
        return PROTEUS_M73_OUTPUTS;
    }
    return PROTEUS_OUTPUTS;
}

getBoardMetaOutputsCount()

int getBoardMetaOutputsCount

(

)

Definition at line 318 of file board_configuration.cpp.

                               {
    if (engineConfiguration->engineType == engine_type_e::SUBARU_2011) {
        return efi::size(PROTEUS_SUBARU_OUTPUTS);
    }
    if (engineConfiguration->engineType == engine_type_e::MAVERICK_X3) {
        return efi::size(PROTEUS_CANAM_OUTPUTS);
    }
    if (engineConfiguration->engineType == engine_type_e::ME17_9_MISC) {
        return efi::size(PROTEUS_SLINGSHOT_OUTPUTS);
    }
    if (engineConfiguration->engineType == engine_type_e::HARLEY) {
        return efi::size(PROTEUS_HARLEY_OUTPUTS);
    }
    if (engineConfiguration->engineType == engine_type_e::GM_SBC) {
        return efi::size(PROTEUS_SBC_OUTPUTS);
    }
    if (engineConfiguration->engineType == engine_type_e::PROTEUS_BMW_M73) {
        return efi::size(PROTEUS_M73_OUTPUTS);
    }
    return efi::size(PROTEUS_OUTPUTS);
}

getCommsLedPin()

Gpio getCommsLedPin

(

)

Definition at line 52 of file board_configuration.cpp.

                      {
    return Gpio::E4;
}

getRunningLedPin()

Gpio getRunningLedPin

(

)

Definition at line 56 of file board_configuration.cpp.

                        {
    return Gpio::E5;
}

getWarningLedPin()

Gpio getWarningLedPin

(

)

Definition at line 60 of file board_configuration.cpp.

                        {
    return Gpio::E6;
}

proteus_boardConfigOverrides()

static void proteus_boardConfigOverrides ( )

static

Definition at line 138 of file board_configuration.cpp.

                                           {
    setupSdCard();
    setupVbatt();

    engineConfiguration->clt.config.bias_resistor = PROTEUS_DEFAULT_AT_PULLUP;
    engineConfiguration->iat.config.bias_resistor = PROTEUS_DEFAULT_AT_PULLUP;

    engineConfiguration->canTxPin = Gpio::D1;
    engineConfiguration->canRxPin = Gpio::D0;
    engineConfiguration->can2RxPin = Gpio::B12;
    engineConfiguration->can2TxPin = Gpio::B13;

    engineConfiguration->lps25BaroSensorScl = Gpio::B10;
    engineConfiguration->lps25BaroSensorSda = Gpio::B11;
}

Referenced by setup_custom_board_overrides().

Here is the call graph for this function:

Here is the caller graph for this function:

proteus_boardDefaultConfiguration()

static void proteus_boardDefaultConfiguration ( )

static

Board-specific configuration defaults.

See also setDefaultEngineConfiguration

Definition at line 161 of file board_configuration.cpp.

                                                {
    setInjectorPins();
    setIgnitionPins();
    setupEtb();

    engineConfiguration->isSdCardEnabled = true;

    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();

    engineConfiguration->enableSoftwareKnock = true;

#if HW_PROTEUS & EFI_PROD_CODE
    engineConfiguration->mainRelayPin = Gpio::PROTEUS_LS_12;
    engineConfiguration->fanPin = Gpio::PROTEUS_LS_11;
    engineConfiguration->fuelPumpPin = Gpio::PROTEUS_LS_10;
#endif // HW_PROTEUS

    // If we're running as hardware CI, borrow a few extra pins for that
#ifdef HARDWARE_CI
    engineConfiguration->triggerSimulatorPins[0] = Gpio::G3;
    engineConfiguration->triggerSimulatorPins[1] = Gpio::G2;
#endif
}

Referenced by setup_custom_board_overrides().

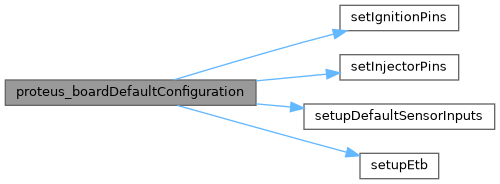

Here is the call graph for this function:

Here is the caller graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 47 of file board_configuration.cpp.

                              {
    copyArray(engineConfiguration->ignitionPins, ignPins);
}

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 43 of file board_configuration.cpp.

                              {
    copyArray(engineConfiguration->injectionPins, injPins);
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

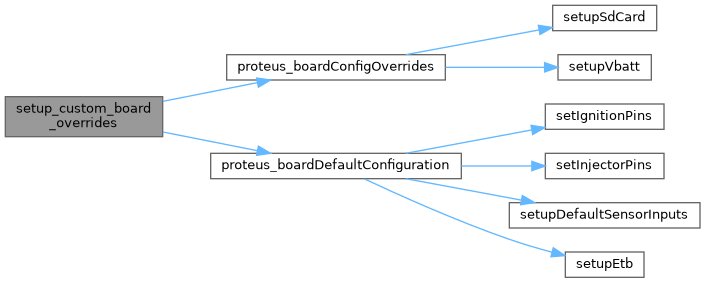

Definition at line 378 of file board_configuration.cpp.

                                    {
    custom_board_DefaultConfiguration = proteus_boardDefaultConfiguration;
    custom_board_ConfigOverrides =  proteus_boardConfigOverrides;
}

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 104 of file board_configuration.cpp.

                                       {
    // trigger inputs
    // Digital channel 1 as default - others not set
    engineConfiguration->triggerInputPins[0] = PROTEUS_DIGITAL_1;
    engineConfiguration->camInputs[0] = Gpio::Unassigned;

    engineConfiguration->triggerInputPins[1] = Gpio::Unassigned;


    engineConfiguration->clt.adcChannel = PROTEUS_IN_CLT;
    engineConfiguration->iat.adcChannel = PROTEUS_IN_IAT;
    engineConfiguration->tps1_1AdcChannel = PROTEUS_IN_TPS;
    engineConfiguration->map.sensor.hwChannel = PROTEUS_IN_MAP;

    // see also enableAemXSeries
    // pin #28 WBO AFR "Analog Volt 10"
    engineConfiguration->afr.hwChannel = PROTEUS_IN_ANALOG_VOLT_10;
}

setupEtb()

static void setupEtb ( )

static

Definition at line 77 of file board_configuration.cpp.

                       {
    // TLE9201 driver
    // This chip has three control pins:
    // DIR - sets direction of the motor
    // PWM - pwm control (enable high, coast low)
    // DIS - disables motor (enable low)

    // Throttle #1
    // PWM pin
    engineConfiguration->etbIo[0].controlPin = Gpio::D12;
    // DIR pin
    engineConfiguration->etbIo[0].directionPin1 = Gpio::D10;
    // Disable pin
    engineConfiguration->etbIo[0].disablePin = Gpio::D11;

    // Throttle #2
    // PWM pin
    engineConfiguration->etbIo[1].controlPin = Gpio::D13;
    // DIR pin
    engineConfiguration->etbIo[1].directionPin1 = Gpio::D9;
    // Disable pin
    engineConfiguration->etbIo[1].disablePin = Gpio::D8;

    // we only have pwm/dir, no dira/dirb
    engineConfiguration->etb_use_two_wires = false;
}

setupSdCard()

static void setupSdCard ( )

static

Definition at line 123 of file board_configuration.cpp.

                          {
    engineConfiguration->sdCardSpiDevice = SPI_DEVICE_3;
    engineConfiguration->sdCardCsPin = Gpio::D2;

    engineConfiguration->is_enabled_spi_3 = true;
    engineConfiguration->spi3sckPin = Gpio::C10;
    engineConfiguration->spi3misoPin = Gpio::C11;
    engineConfiguration->spi3mosiPin = Gpio::C12;

    engineConfiguration->is_enabled_spi_5 = true;
    engineConfiguration->spi5sckPin = Gpio::F7;
    engineConfiguration->spi5misoPin = Gpio::F8;
    engineConfiguration->spi5mosiPin = Gpio::F9;
}

Referenced by proteus_boardConfigOverrides().

Here is the caller graph for this function:

setupVbatt()

static void setupVbatt ( )

static

Definition at line 64 of file board_configuration.cpp.

                         {
    // 5.6k high side/10k low side = 1.56 ratio divider
    engineConfiguration->analogInputDividerCoefficient = 1.56f;

    // 82k high side/10k low side = 9.2
    engineConfiguration->vbattDividerCoeff = (92.0f / 10.0f);

    // Battery sense on PA7
    engineConfiguration->vbattAdcChannel = EFI_ADC_7;

    engineConfiguration->adcVcc = 3.3f;
}

Variable Documentation

ignPins

const brain_pin_e ignPins[]

static

Initial value:

= {
    Gpio::PROTEUS_IGN_1,
    Gpio::PROTEUS_IGN_2,
    Gpio::PROTEUS_IGN_3,
    Gpio::PROTEUS_IGN_4,
    Gpio::PROTEUS_IGN_5,
    Gpio::PROTEUS_IGN_6,
    Gpio::PROTEUS_IGN_7,
    Gpio::PROTEUS_IGN_8,
    Gpio::PROTEUS_IGN_9,
    Gpio::PROTEUS_IGN_10,
    Gpio::PROTEUS_IGN_11,
    Gpio::PROTEUS_IGN_12,
}

Definition at line 28 of file board_configuration.cpp.

                                     {
    Gpio::PROTEUS_IGN_1,
    Gpio::PROTEUS_IGN_2,
    Gpio::PROTEUS_IGN_3,
    Gpio::PROTEUS_IGN_4,
    Gpio::PROTEUS_IGN_5,
    Gpio::PROTEUS_IGN_6,
    Gpio::PROTEUS_IGN_7,
    Gpio::PROTEUS_IGN_8,
    Gpio::PROTEUS_IGN_9,
    Gpio::PROTEUS_IGN_10,
    Gpio::PROTEUS_IGN_11,
    Gpio::PROTEUS_IGN_12,
};

Referenced by setIgnitionPins().

injPins

const brain_pin_e injPins[]

static

Initial value:

= {
    Gpio::PROTEUS_LS_1,
    Gpio::PROTEUS_LS_2,
    Gpio::PROTEUS_LS_3,
    Gpio::PROTEUS_LS_4,
    Gpio::PROTEUS_LS_5,
    Gpio::PROTEUS_LS_6,
    Gpio::PROTEUS_LS_7,
    Gpio::PROTEUS_LS_8,
    Gpio::PROTEUS_LS_9,
    Gpio::PROTEUS_LS_10,
    Gpio::PROTEUS_LS_11,
    Gpio::PROTEUS_LS_12
}

Definition at line 13 of file board_configuration.cpp.

                                     {
    Gpio::PROTEUS_LS_1,
    Gpio::PROTEUS_LS_2,
    Gpio::PROTEUS_LS_3,
    Gpio::PROTEUS_LS_4,
    Gpio::PROTEUS_LS_5,
    Gpio::PROTEUS_LS_6,
    Gpio::PROTEUS_LS_7,
    Gpio::PROTEUS_LS_8,
    Gpio::PROTEUS_LS_9,
    Gpio::PROTEUS_LS_10,
    Gpio::PROTEUS_LS_11,
    Gpio::PROTEUS_LS_12
};

Referenced by setInjectorPins().

PROTEUS_CANAM_OUTPUTS

Gpio PROTEUS_CANAM_OUTPUTS[]

static

Initial value:

= {
    Gpio::PROTEUS_LS_1,
    Gpio::PROTEUS_LS_2,
    Gpio::PROTEUS_LS_3,
    Gpio::PROTEUS_LS_12,
    Gpio::PROTEUS_LS_14,
    Gpio::PROTEUS_LS_15,
    Gpio::PROTEUS_LS_4,
    Gpio::PROTEUS_IGN_1,
    Gpio::PROTEUS_IGN_2,
    Gpio::PROTEUS_IGN_3,
}

Definition at line 242 of file board_configuration.cpp.

                                      {
    Gpio::PROTEUS_LS_1, // inj 1
    Gpio::PROTEUS_LS_2, // inj 2
    Gpio::PROTEUS_LS_3, // inj 3
    Gpio::PROTEUS_LS_12, // main relay
    Gpio::PROTEUS_LS_14, // starter
    Gpio::PROTEUS_LS_15, // intercooler fan
    Gpio::PROTEUS_LS_4, // accessories relay
    Gpio::PROTEUS_IGN_1,
    Gpio::PROTEUS_IGN_2,
    Gpio::PROTEUS_IGN_3,
};

Referenced by getBoardMetaOutputs(), and getBoardMetaOutputsCount().

PROTEUS_HARLEY_OUTPUTS

Gpio PROTEUS_HARLEY_OUTPUTS[]

static

Initial value:

= {
    Gpio::PROTEUS_LS_1,
    Gpio::PROTEUS_LS_2,
    Gpio::PROTEUS_IGN_1,
    Gpio::PROTEUS_IGN_2,
    Gpio::PROTEUS_IGN_8,
    Gpio::PROTEUS_IGN_9,
}

Definition at line 255 of file board_configuration.cpp.

                                       {
    Gpio::PROTEUS_LS_1,
    Gpio::PROTEUS_LS_2,
    Gpio::PROTEUS_IGN_1,
    Gpio::PROTEUS_IGN_2,
    Gpio::PROTEUS_IGN_8, // ACR
    Gpio::PROTEUS_IGN_9, // ACR2
};

Referenced by getBoardMetaOutputs(), and getBoardMetaOutputsCount().

PROTEUS_M73_OUTPUTS

Gpio PROTEUS_M73_OUTPUTS[]

static

Initial value:

= {
    Gpio::PROTEUS_LS_1,
    Gpio::PROTEUS_LS_2,
    Gpio::PROTEUS_LS_3,
    Gpio::PROTEUS_LS_4,
    Gpio::PROTEUS_LS_5,
    Gpio::PROTEUS_LS_6,
    Gpio::PROTEUS_LS_7,
    Gpio::PROTEUS_LS_8,
    Gpio::PROTEUS_LS_9,
    Gpio::PROTEUS_LS_10,
    Gpio::PROTEUS_LS_11,
    Gpio::PROTEUS_LS_12,
    Gpio::PROTEUS_LS_14,
    Gpio::PROTEUS_LS_15,




}

Definition at line 212 of file board_configuration.cpp.

                                    {
    Gpio::PROTEUS_LS_1, // inj 1
    Gpio::PROTEUS_LS_2, // inj 2
    Gpio::PROTEUS_LS_3,
    Gpio::PROTEUS_LS_4,
    Gpio::PROTEUS_LS_5,
    Gpio::PROTEUS_LS_6,
    Gpio::PROTEUS_LS_7,
    Gpio::PROTEUS_LS_8,
    Gpio::PROTEUS_LS_9, // inj 9
    Gpio::PROTEUS_LS_10, // inj 10
    Gpio::PROTEUS_LS_11, // inj 11
    Gpio::PROTEUS_LS_12, // inj 12
    Gpio::PROTEUS_LS_14, // starter control or aux output
    Gpio::PROTEUS_LS_15, // radiator fan relay output white


    //Gpio::PROTEUS_LS_13, // main relay
    //Gpio::PROTEUS_LS_16, // main relay
};

Referenced by getBoardMetaOutputs(), and getBoardMetaOutputsCount().

PROTEUS_OUTPUTS

Gpio PROTEUS_OUTPUTS[]

static

Definition at line 283 of file board_configuration.cpp.

                                {
Gpio::PROTEUS_LS_1,
Gpio::PROTEUS_LS_2,
Gpio::PROTEUS_LS_3,
Gpio::PROTEUS_LS_4,
Gpio::PROTEUS_LS_5,
Gpio::PROTEUS_LS_6,
Gpio::PROTEUS_LS_7,
Gpio::PROTEUS_LS_8,
Gpio::PROTEUS_LS_9,
Gpio::PROTEUS_LS_10,
Gpio::PROTEUS_LS_11,
Gpio::PROTEUS_LS_12,
Gpio::PROTEUS_LS_13,
Gpio::PROTEUS_LS_14,
Gpio::PROTEUS_LS_15,
Gpio::PROTEUS_LS_16,
    Gpio::PROTEUS_IGN_1,
    Gpio::PROTEUS_IGN_2,
    Gpio::PROTEUS_IGN_3,
    Gpio::PROTEUS_IGN_4,
    Gpio::PROTEUS_IGN_5,
    Gpio::PROTEUS_IGN_6,
    Gpio::PROTEUS_IGN_7,
    Gpio::PROTEUS_IGN_8,
    Gpio::PROTEUS_IGN_9,
    Gpio::PROTEUS_IGN_10,
    Gpio::PROTEUS_IGN_11,
    Gpio::PROTEUS_IGN_12,
    Gpio::PROTEUS_HS_1,
    Gpio::PROTEUS_HS_2,
    Gpio::PROTEUS_HS_3,
    Gpio::PROTEUS_HS_4
};

Referenced by getBoardMetaOutputs(), and getBoardMetaOutputsCount().

PROTEUS_SBC_OUTPUTS

Gpio PROTEUS_SBC_OUTPUTS[]

static

Initial value:

= {
    Gpio::PROTEUS_LS_14,
    Gpio::PROTEUS_LS_14,
    Gpio::PROTEUS_LS_14,
    Gpio::PROTEUS_LS_14,

    Gpio::PROTEUS_LS_15,
    Gpio::PROTEUS_LS_15,
    Gpio::PROTEUS_LS_15,
    Gpio::PROTEUS_LS_15,

}

Definition at line 199 of file board_configuration.cpp.

                                    {
    Gpio::PROTEUS_LS_14, // inj 1 four times
    Gpio::PROTEUS_LS_14, // inj 1 four times
    Gpio::PROTEUS_LS_14, // inj 1 four times
    Gpio::PROTEUS_LS_14, // inj 1 four times

    Gpio::PROTEUS_LS_15, // inj 4 four times
    Gpio::PROTEUS_LS_15, // inj 4 four times
    Gpio::PROTEUS_LS_15, // inj 4 four times
    Gpio::PROTEUS_LS_15, // inj 4 four times

};

Referenced by getBoardMetaOutputs(), and getBoardMetaOutputsCount().

PROTEUS_SLINGSHOT_OUTPUTS

Gpio PROTEUS_SLINGSHOT_OUTPUTS[]

static

Initial value:

= {
    Gpio::PROTEUS_LS_1,
    Gpio::PROTEUS_LS_2,
    Gpio::PROTEUS_LS_3,
    Gpio::PROTEUS_LS_4,
}

Definition at line 192 of file board_configuration.cpp.

                                          {
    Gpio::PROTEUS_LS_1, // inj 1
    Gpio::PROTEUS_LS_2, // inj 2
    Gpio::PROTEUS_LS_3, // inj 3
    Gpio::PROTEUS_LS_4, // inj 4
};

Referenced by getBoardMetaOutputs(), and getBoardMetaOutputsCount().

PROTEUS_SUBARU_OUTPUTS

Gpio PROTEUS_SUBARU_OUTPUTS[]

static

Initial value:

= {
    Gpio::PROTEUS_LS_1,
    Gpio::PROTEUS_LS_2,
    Gpio::PROTEUS_LS_3,
    Gpio::PROTEUS_LS_4,
    Gpio::PROTEUS_LS_12,
    Gpio::PROTEUS_LS_14,
}

Definition at line 233 of file board_configuration.cpp.

                                       {
    Gpio::PROTEUS_LS_1, // inj 1
    Gpio::PROTEUS_LS_2, // inj 2
    Gpio::PROTEUS_LS_3, // inj 3
    Gpio::PROTEUS_LS_4, // inj 4
    Gpio::PROTEUS_LS_12, // main relay
    Gpio::PROTEUS_LS_14, // starter
};

Referenced by getBoardMetaOutputs(), and getBoardMetaOutputsCount().

Go to the source code of this file.
