Functions
void	setMreVwPassatB6 ()

void	setProteusVwPassatB6 ()

Function Documentation

◆ setMreVwPassatB6()

void setMreVwPassatB6 ( )

set engine_type 62 VW_B6 has to be microRusEFI 0.5.2

Definition at line 188 of file vw_b6.cpp.

                        {
#if HW_MICRO_RUSEFI
    commonPassatB6();

//  engineConfiguration->afr.hwChannel = MRE_IN_ANALOG_VOLT_10;

    engineConfiguration->tps1_2AdcChannel = MRE_IN_ANALOG_VOLT_9;



    // EFI_ADC_7: "31 - AN volt 3" - PA7
    // 36 - AN volt 8
    setPPSInputs(MRE_IN_ANALOG_VOLT_3, MRE_IN_ANALOG_VOLT_8);

    // "26 - AN volt 2"
    engineConfiguration->highPressureFuel.hwChannel = MRE_IN_ANALOG_VOLT_2;


    // "19 - AN volt 4"
    engineConfiguration->lowPressureFuel.hwChannel = EFI_ADC_12;

    engineConfiguration->isSdCardEnabled = false;

    engineConfiguration->mc33816spiDevice = SPI_DEVICE_3;
    // RED
    engineConfiguration->spi3mosiPin = Gpio::C12;
    // YELLOW
    engineConfiguration->spi3misoPin = Gpio::C11;
    // BROWN
    engineConfiguration->spi3sckPin = Gpio::C10;
    engineConfiguration->sdCardCsPin = Gpio::Unassigned;
    engineConfiguration->is_enabled_spi_3 = true;


    // J8 orange
    engineConfiguration->mc33816_cs = Gpio::B8;
    // J8 Grey
    engineConfiguration->mc33816_rstb = Gpio::A15;
    // J8 Dark BLUE
    engineConfiguration->mc33816_driven = Gpio::B9;
    // J9 violet
    engineConfiguration->mc33816_flag0 = Gpio::C13;

    // J10 Dark BLUE
    engineConfiguration->injectionPins[0] = Gpio::E6;
    // J11 green
    engineConfiguration->injectionPins[1] = Gpio::E5;
    // J18 grey
    engineConfiguration->injectionPins[2] = Gpio::B7;
    // J6 white
    engineConfiguration->injectionPins[3] = Gpio::E0;


    gppwm_channel *lowPressureFuelPumpControl = &engineConfiguration->gppwm[1];

    // "42 - Injector 4", somehow GP4 did not work? not enough current? not happy with diode?
    lowPressureFuelPumpControl->pin = MRE_INJ_4;


    gppwm_channel *coolantControl = &engineConfiguration->gppwm[0];

    coolantControl->pin = MRE_LS_2;
    // "7 - Lowside 1"
    //engineConfiguration->hpfpValvePin = MRE_LS_1;
    engineConfiguration->hpfpValvePin = Gpio::B10; // AUX J13


#endif /* HW_MICRO_RUSEFI */
}

Referenced by applyEngineType().

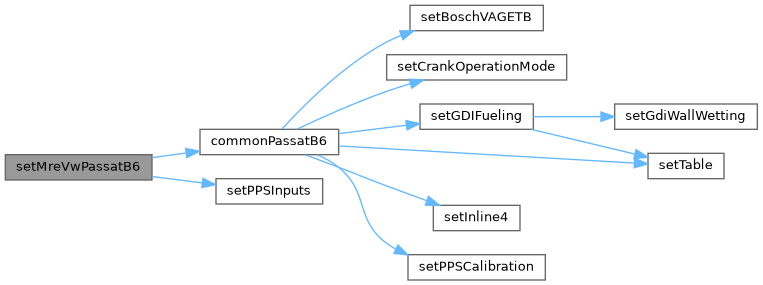

Here is the call graph for this function:

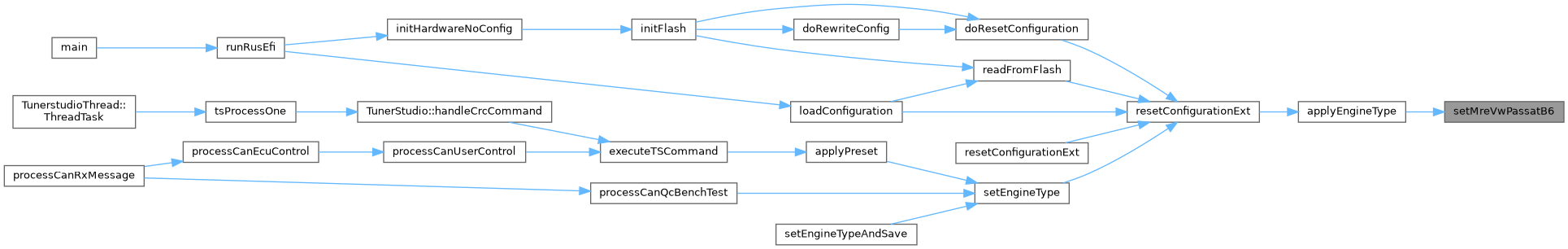

Here is the caller graph for this function:

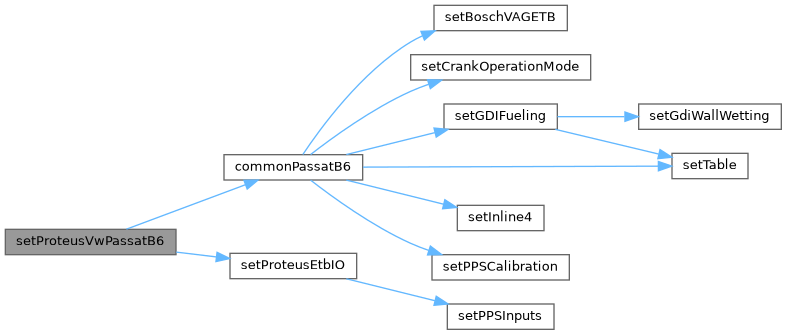

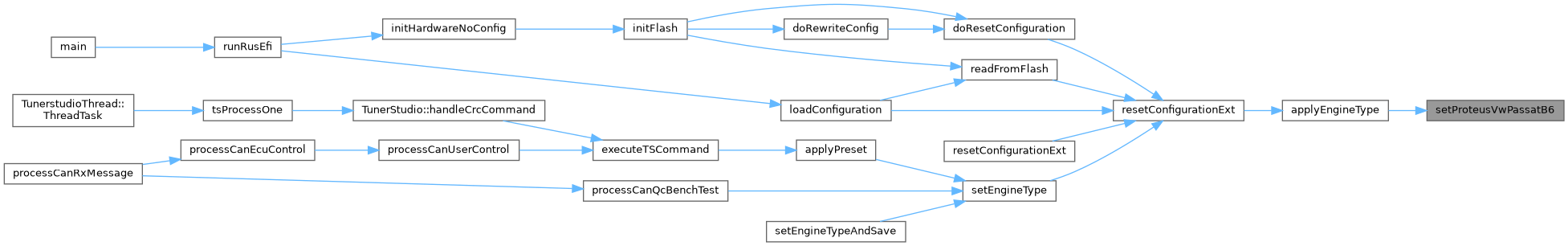

◆ setProteusVwPassatB6()

void setProteusVwPassatB6 ( )

set engine_type 39

Definition at line 134 of file vw_b6.cpp.

                            {
#if HW_PROTEUS
    static_assert(sizeof(hardCodedFreqBins) == sizeof(hardCodedGperSValues));
#if SCRIPT_CURVE_16 == 16
    {
        size_t mi = 0;
        for (; mi < efi::size(hardCodedFreqBins); mi++) {
            config->scriptCurve1Bins[mi] = hardCodedFreqBins[mi];
            config->scriptCurve1[mi] = hardCodedGperSValues[mi];
        }

        for (; mi < SCRIPT_CURVE_16; mi++) {
            config->scriptCurve1Bins[mi] = 3650 + mi;
            config->scriptCurve1[mi] = 4000;
        }
    }
    strcpy(engineConfiguration->scriptCurveName[0], "MAFcurve");
#endif

    commonPassatB6();
    engineConfiguration->triggerInputPins[0] = PROTEUS_VR_1;
    engineConfiguration->camInputs[0] = PROTEUS_DIGITAL_2;

    engineConfiguration->auxSpeedSensorInputPin[0] = PROTEUS_DIGITAL_5;

    engineConfiguration->lowPressureFuel.hwChannel = PROTEUS_IN_ANALOG_VOLT_5;
    engineConfiguration->highPressureFuel.hwChannel = PROTEUS_IN_ANALOG_VOLT_4;

    gppwm_channel *coolantControl = &engineConfiguration->gppwm[0];
    coolantControl->pin = Gpio::PROTEUS_LS_5;

    engineConfiguration->mainRelayPin = Gpio::PROTEUS_LS_6;

    gppwm_channel *lowPressureFuelPumpControl = &engineConfiguration->gppwm[1];
    lowPressureFuelPumpControl->pin = Gpio::PROTEUS_LS_7;

    //engineConfiguration->boostControlPin = Gpio::PROTEUS_LS_8;
    engineConfiguration->vvtPins[0] = Gpio::PROTEUS_LS_9;
    engineConfiguration->hpfpValvePin = Gpio::PROTEUS_LS_15;

    setProteusEtbIO();

#if EFI_PROD_CODE
    #include "vw_b6.lua"
#endif

#endif // HW_PROTEUS
}
