vw.h File Reference

Functions
void	setVwAba ()
void	setVag_5_cyl ()
void	setHellen121Vag_vr6_cyl ()
void	setHellen121Vag_v6_cyl ()
void	setHellen121Vag_8_cyl ()

Function Documentation

setHellen121Vag_8_cyl()

void setHellen121Vag_8_cyl

(

)

Definition at line 81 of file vw.cpp.

                             {
    engineConfiguration->cylindersCount = 8;
    engineConfiguration->displacement = 4.2;
    engineConfiguration->firingOrder = FO_1_5_4_8_6_3_7_2;
}

Referenced by applyEngineType().

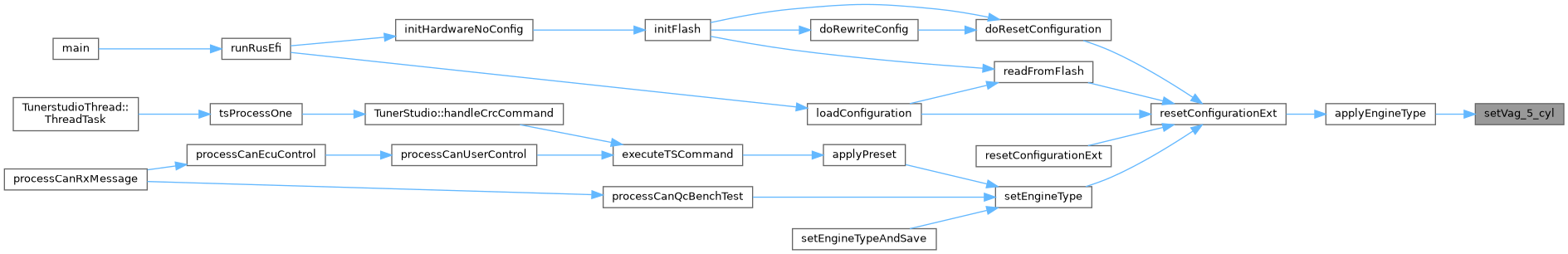

Here is the caller graph for this function:

setHellen121Vag_v6_cyl()

void setHellen121Vag_v6_cyl

(

)

Definition at line 72 of file vw.cpp.

                              {
    engineConfiguration->cylindersCount = 6;
    engineConfiguration->displacement = 2.7;

    engineConfiguration->camInputs[1 * CAMS_PER_BANK] = Gpio::A7; // 87a

    engineConfiguration->firingOrder = FO_1_4_3_6_2_5;
}

Referenced by applyEngineType().

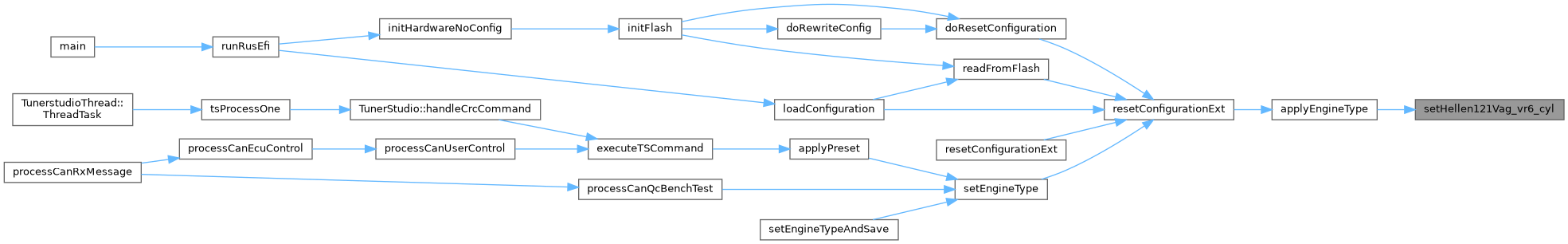

Here is the caller graph for this function:

setHellen121Vag_vr6_cyl()

void setHellen121Vag_vr6_cyl

(

)

Definition at line 67 of file vw.cpp.

                               {
    engineConfiguration->cylindersCount = 6;
    engineConfiguration->firingOrder = FO_1_5_3_6_2_4;
}

Referenced by applyEngineType().

Here is the caller graph for this function:

setVag_5_cyl()

void setVag_5_cyl

(

)

Definition at line 60 of file vw.cpp.

                    {
  strcpy(engineConfiguration->engineMake, ENGINE_MAKE_VAG);
    engineConfiguration->cylindersCount = 5;
    engineConfiguration->displacement = 2.5;
    engineConfiguration->firingOrder = FO_1_2_4_5_3;
}

Referenced by applyEngineType().

Here is the caller graph for this function:

setVwAba()

void setVwAba

(

)

Definition at line 18 of file vw.cpp.

                {
    setFrankensoConfiguration();
    engineConfiguration->camInputs[0] = Gpio::E0; // a random unused pin needed for happy HW CI

  // default PC1-5 ADC pins conflict with the ethernet module on F767, used on HW CI
    engineConfiguration->tps1_1AdcChannel = EFI_ADC_32;
    engineConfiguration->vbattAdcChannel = EFI_ADC_33;
    engineConfiguration->clt.adcChannel = EFI_ADC_34;
    engineConfiguration->iat.adcChannel = EFI_ADC_35;
    engineConfiguration->afr.hwChannel = EFI_ADC_36;

    setWholeTimingTable(20);
    // set cranking_timing_angle 10
    engineConfiguration->crankingTimingAngle = 10;

    // set global_trigger_offset_angle 93
    engineConfiguration->globalTriggerAngleOffset = 93;

    setCrankOperationMode();
    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL_60_2;

    //Base engine setting
    setInline4();
    engineConfiguration->displacement = 2.0;
    engineConfiguration->injector.flow = 320; // 30lb/h
    // set algorithm 3
    setAlgorithm(engine_load_mode_e::LM_SPEED_DENSITY);
    engineConfiguration->map.sensor.type = MT_GM_3_BAR;

    engineConfiguration->ignitionMode = IM_ONE_COIL;

    float mapRange = 110;

    setEgoSensor(ES_PLX);
    setFuelTablesLoadBin(20, mapRange);
    setLinearCurve(config->ignitionLoadBins, 20, mapRange);

    engineConfiguration->isSdCardEnabled = false;
    engineConfiguration->tpsMin = 740;
    engineConfiguration->tpsMax = 135;
}

Referenced by applyEngineType().

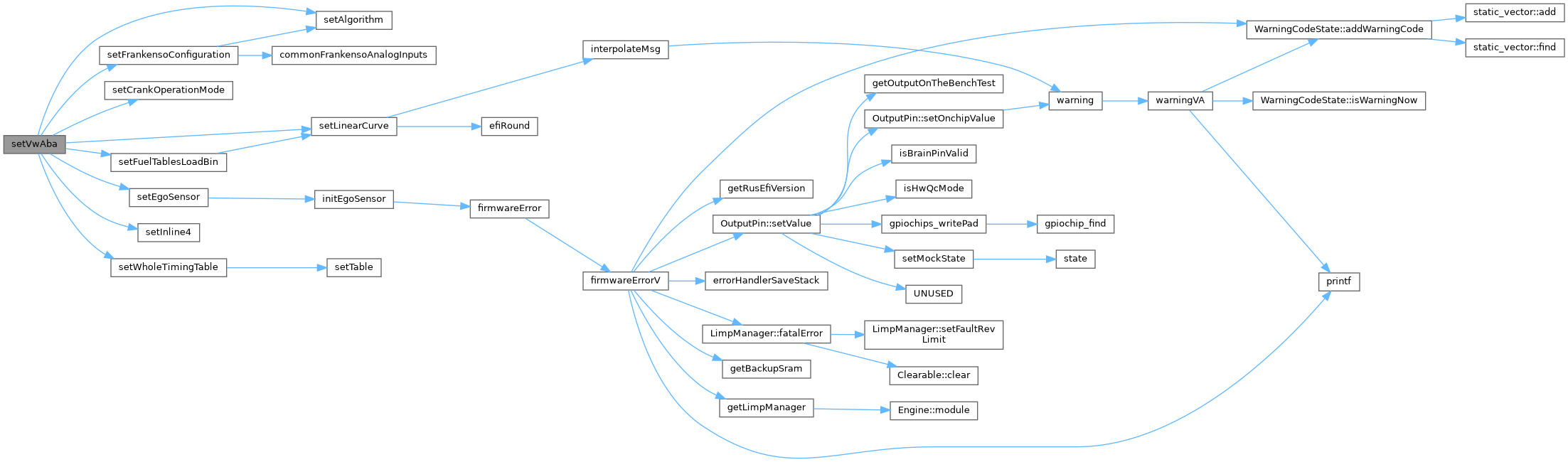

Here is the call graph for this function:

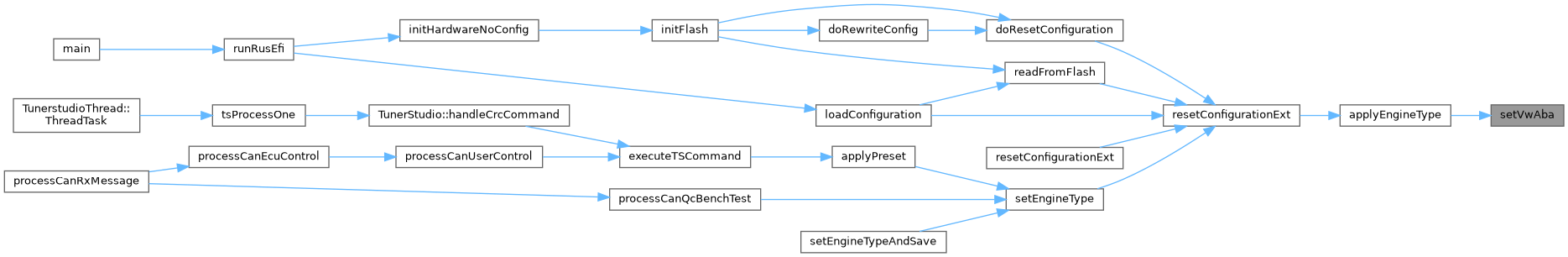

Here is the caller graph for this function:

Go to the source code of this file.
