ignition_controller.h File Reference

Data Structures
class	IgnitionController

Functions
bool	isIgnVoltage ()

Function Documentation

isIgnVoltage()

bool isIgnVoltage

(

)

Definition at line 3 of file ignition_controller.cpp.

                    {
#if EFI_PROD_CODE
    // Digital pin has priority over analog inputs
    if (isBrainPinValid(engineConfiguration->ignitionKeyDigitalPin)) {
        return efiReadPin(engineConfiguration->ignitionKeyDigitalPin, engineConfiguration->ignitionKeyDigitalPinMode);
    }
#endif

    float ignVoltage = 0;
    if (Sensor::hasSensor(SensorType::IgnKeyVoltage)) {
        // If we have separate ignition sensing input
        ignVoltage = Sensor::getOrZero(SensorType::IgnKeyVoltage);
    } else {
        // No, we assume that ignition is ON while we are powered with resonable voltage
        ignVoltage = Sensor::getOrZero(SensorType::BatteryVoltage);
    }

    return (ignVoltage > 6.0f);
}

Referenced by boardSdCardEnable(), StepperMotorBase::doIteration(), IgnVoltageGatekeeper::haveVoltage(), MainRelayController::onSlowCallback(), IgnitionController::onSlowCallback(), reset_and_jump(), slowStartStopButtonCallback(), THD_FUNCTION(), and useMsdMode().

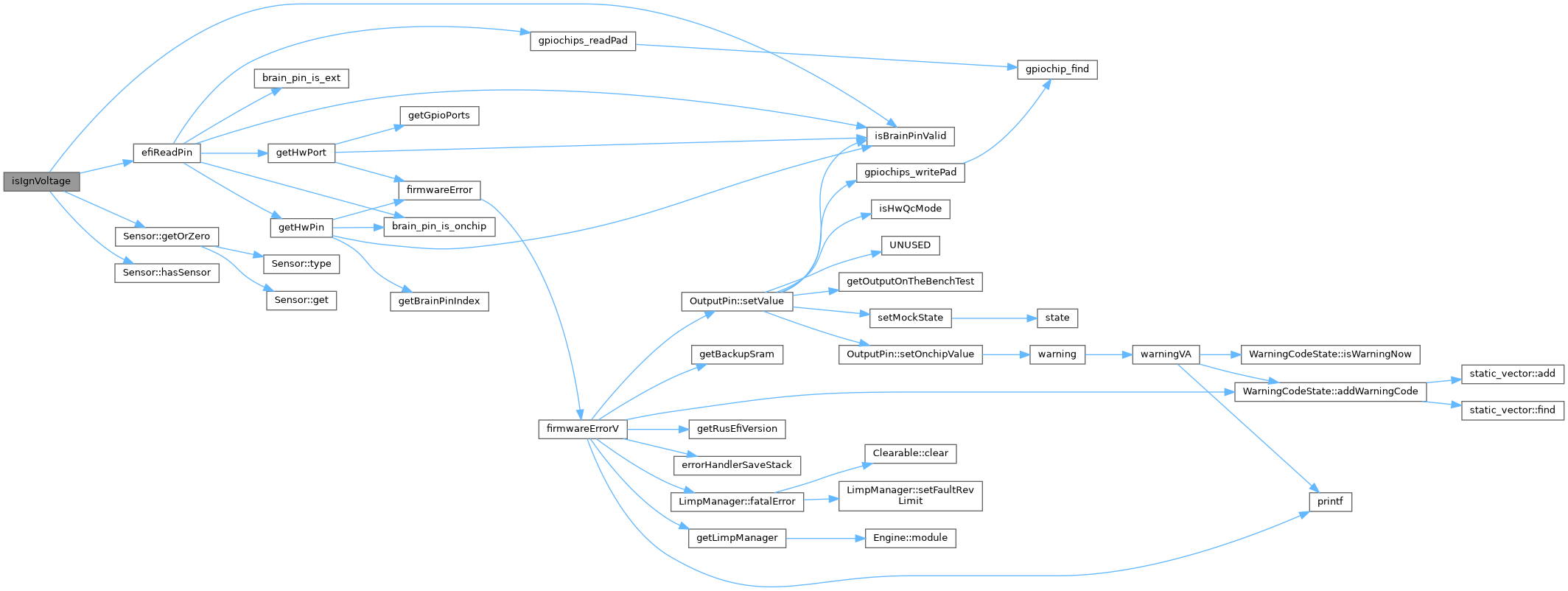

Here is the call graph for this function:

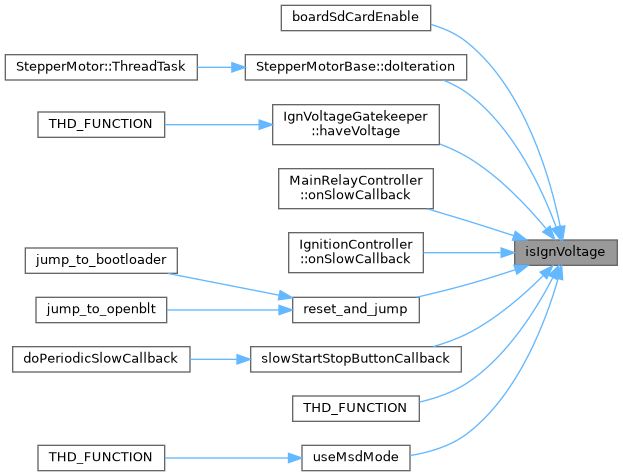

Here is the caller graph for this function:

Go to the source code of this file.
