hyundai_coupe_canned_tables.cpp File Reference

Functions

static void cannedprimeBins ()

static void cannedprimeValues ()

static void cannedcltIdleCorrBins ()

static void cannedcltIdleCorr ()

static void couplecannedveTable ()

static void couplecannedignitionTable ()


Function Documentation

◆ cannedcltIdleCorr()

static void cannedcltIdleCorr ( )
static

Definition at line 19 of file hyundai_coupe_canned_tables.cpp.

19 {
20#if CLT_IDLE_TABLE_CLT_SIZE == 16
21//todo static const float hardCodedcltIdleCorr[16] = {1.5, 1.5, 1.333333, 1.333333, 1.333333, 1.333333, 1.333333, 1.333333, 1.333333, 1.233333, 1.166667, 1.1, 1.0, 1.0, 1.0, 1.0};
22//todo copyArray(config->cltIdleCorr, hardCodedcltIdleCorr);
23#endif // CLT_IDLE_TABLE_CLT_SIZE
24}

◆ cannedcltIdleCorrBins()

static void cannedcltIdleCorrBins ( )
static

Definition at line 12 of file hyundai_coupe_canned_tables.cpp.

12 {
13#if CLT_IDLE_TABLE_CLT_SIZE == 16
14 static const float hardCodedcltIdleCorrBins[16] = {-40.0, -30.0, -20.0, -10.0, 0.0, 10.0, 20.0, 30.0, 40.0, 50.0, 60.0, 70.0, 80.0, 90.0, 100.0, 110.0};
15 copyArray(config->cltIdleCorrBins, hardCodedcltIdleCorrBins);
16#endif // CLT_IDLE_TABLE_CLT_SIZE
17}
config
static constexpr persistent_config_s * config
Definition engine_configuration.h:81
hardCodedcltIdleCorrBins
static const float hardCodedcltIdleCorrBins[16]
Definition mazda_miata_base_maps.cpp:23
persistent_config_s::cltIdleCorrBins
float cltIdleCorrBins[CLT_IDLE_TABLE_CLT_SIZE]
Definition engine_configuration_generated_structures_alphax-2chan.h:6061

Referenced by commonGenesisCoupe().

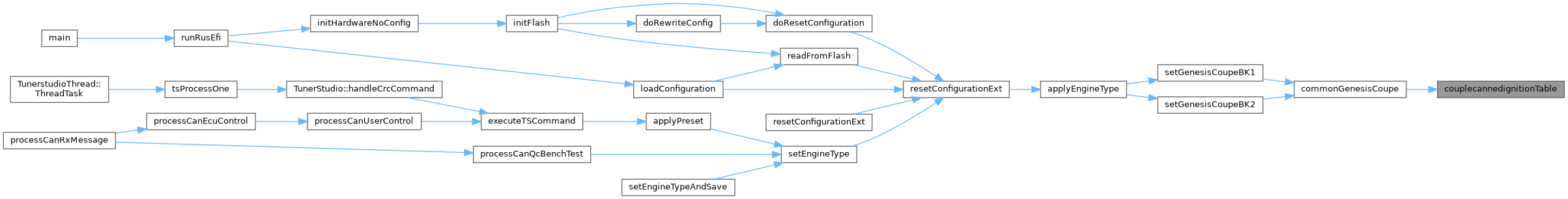

Here is the caller graph for this function:

◆ cannedprimeBins()

static void cannedprimeBins ( )
static

Definition at line 2 of file hyundai_coupe_canned_tables.cpp.

2 {
3 static const float hardCodedprimeBins[8] = {-40.0, -20.0, 0.0, 20.0, 40.0, 60.0, 80.0, 100.0};
4 copyArray(engineConfiguration->primeBins, hardCodedprimeBins);
5}
engineConfiguration
static constexpr engine_configuration_s * engineConfiguration
Definition engine_configuration.h:80
engine_configuration_s::primeBins
scaled_channel< int16_t, 1, 1 > primeBins[PRIME_CURVE_COUNT]
Definition engine_configuration_generated_structures_alphax-2chan.h:4079

Referenced by commonGenesisCoupe().

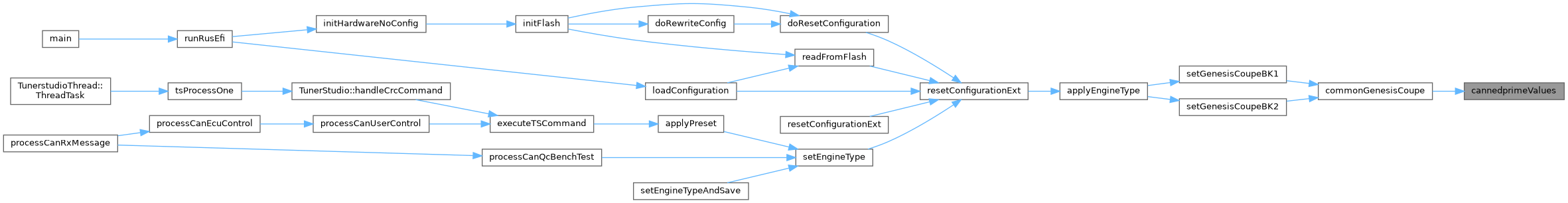

Here is the caller graph for this function:

◆ cannedprimeValues()

static void cannedprimeValues ( )
static

Definition at line 7 of file hyundai_coupe_canned_tables.cpp.

7 {
8 static const float hardCodedprimeValues[8] = {755.0, 605.0, 265.0, 140.0, 75.0, 50.0, 45.0, 40.0};
9 copyArray(engineConfiguration->primeValues, hardCodedprimeValues);
10}
engine_configuration_s::primeValues
scaled_channel< uint8_t, 1, 5 > primeValues[PRIME_CURVE_COUNT]
Definition engine_configuration_generated_structures_alphax-2chan.h:4313

Referenced by commonGenesisCoupe().

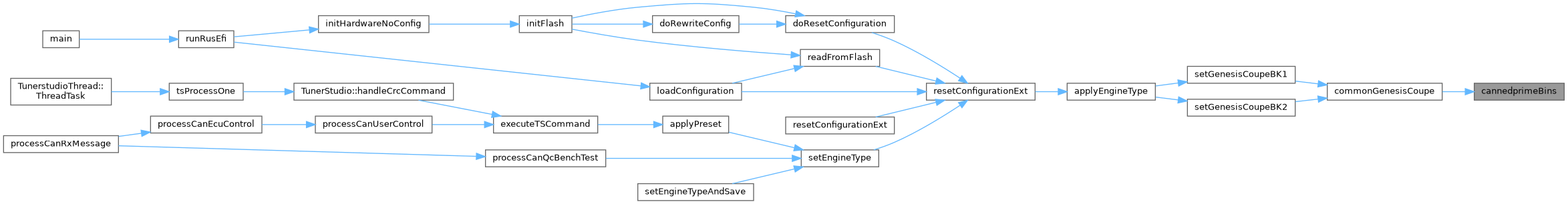

Here is the caller graph for this function:

◆ couplecannedignitionTable()

static void couplecannedignitionTable ( )
static

Definition at line 50 of file hyundai_coupe_canned_tables.cpp.

50 {
51#if (IGN_LOAD_COUNT == 16) && (IGN_RPM_COUNT == 16)
52 static const float hardCodedignitionTable[16][16] = {
53{12.100, 14.000, 17.800, 22.900, 29.300, 35.600, -20.000, -20.000, -20.000, -20.000, -20.000, -20.000, 42.000, 42.000, 42.000, 42.000, },
54{11.800, 13.700, 10.000, 14.900, 28.600, 34.800, -20.000, -20.000, -20.000, -20.000, -20.000, -20.000, 41.000, 41.000, 41.000, 41.000, },
55{11.600, 13.400, 12.300, 17.100, 28.000, 33.900, 39.200, 40.000, 40.000, 40.000, 40.000, 40.000, 40.000, 40.000, 40.000, 40.000, },
56{11.400, 13.200, 16.700, 21.400, 27.300, 33.100, 38.200, 39.000, 39.000, 39.000, 39.000, 39.000, 39.000, 39.000, 39.000, 39.000, },
57{11.200, 12.900, 16.300, 20.800, 26.600, 32.300, 37.200, 38.000, 38.000, 38.000, 38.000, 38.000, 38.000, 38.000, 38.000, 38.000, },
58{10.900, 12.600, 16.600, 20.200, 26.400, 26.700, 27.000, 28.500, 30.000, 30.400, 30.800, 31.100, 31.500, 31.900, 32.300, 33.000, },
59{10.800, 12.400, 16.800, 19.600, 23.900, 24.200, 24.500, 26.000, 27.500, 27.900, 28.300, 28.600, 29.000, 29.400, 29.800, 30.500, },
60{14.300, 14.900, 16.500, 18.800, 20.700, 21.700, 22.000, 23.500, 25.000, 25.400, 25.800, 26.100, 26.500, 26.900, 27.300, 28.000, },
61{14.000, 14.600, 15.600, 17.100, 18.500, 19.200, 19.500, 21.000, 22.500, 22.900, 23.300, 23.600, 24.000, 24.400, 24.800, 25.500, },
62{12.900, 13.300, 14.000, 15.100, 16.100, 16.700, 17.000, 18.500, 20.000, 20.400, 20.800, 21.100, 21.500, 21.900, 22.300, 23.000, },
63{11.700, 12.000, 12.400, 13.100, 13.700, 14.200, 14.500, 16.000, 17.500, 17.900, 18.300, 18.600, 19.000, 19.400, 19.800, 20.500, },
64{10.400, 10.500, 10.800, 11.100, 11.500, 11.900, 12.000, 13.500, 15.000, 15.400, 15.800, 16.100, 16.500, 16.900, 17.300, 18.000, },
65{8.800, 9.000, 9.100, 9.400, 9.700, 10.000, 10.300, 11.800, 13.300, 13.700, 14.100, 14.400, 14.800, 15.200, 15.600, 16.300, },
66{6.700, 6.800, 7.500, 7.700, 8.000, 8.400, 8.700, 10.200, 11.700, 12.100, 12.500, 12.800, 13.200, 13.600, 14.000, 14.700, },
67{1.800, 5.600, 6.200, 6.500, 6.800, 7.100, 7.000, 8.500, 10.000, 10.400, 10.800, 11.100, 11.500, 11.900, 12.300, 13.000, },
68{-1.200, 2.600, 3.200, 3.600, 4.100, 5.000, 7.100, 7.800, 8.400, 9.000, 9.400, 9.500, 9.700, 9.800, 10.000, 10.000, },
69};
70 copyTable(config->ignitionTable, hardCodedignitionTable);
71#endif
72}
hardCodedignitionTable
static const uint8_t hardCodedignitionTable[16][16]
Definition mazda_miata_base_maps.cpp:51
persistent_config_s::ignitionTable
scaled_channel< int16_t, 10, 1 > ignitionTable[IGN_LOAD_COUNT][IGN_RPM_COUNT]
Definition engine_configuration_generated_structures_alphax-2chan.h:6185
copyTable
constexpr void copyTable(TDest(&dest)[N][M], const TSource(&source)[N][M], float multiply=1.0f)
Definition table_helper.h:176

Referenced by commonGenesisCoupe().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ couplecannedveTable()

static void couplecannedveTable ( )
static

Definition at line 26 of file hyundai_coupe_canned_tables.cpp.

26 {
27#if (VE_LOAD_COUNT == 16) && (VE_RPM_COUNT == 16)
28 static const float hardCodedveTable[16][16] = {
29{52.000, 54.000, 54.000, 56.000, 61.000, 55.000, 55.000, 65.000, 65.000, 60.000, 60.000, 60.000, 60.000, 60.000, 60.000, 60.000, },
30{51.500, 54.500, 54.400, 56.000, 61.000, 68.100, 66.800, 67.600, 68.200, 63.400, 63.400, 63.400, 63.400, 63.400, 63.400, 63.400, },
31{52.500, 55.400, 57.700, 62.200, 62.800, 65.800, 69.600, 71.100, 72.200, 67.600, 67.600, 67.600, 67.600, 67.600, 67.600, 67.600, },
32{54.200, 56.300, 59.000, 64.300, 65.700, 68.400, 71.400, 72.900, 73.900, 70.500, 70.400, 70.400, 70.300, 70.200, 70.200, 70.200, },
33{54.400, 56.700, 59.500, 65.200, 71.800, 75.400, 75.300, 73.800, 74.700, 72.600, 72.500, 72.300, 72.200, 72.100, 72.000, 72.000, },
34{55.100, 58.100, 61.400, 67.900, 75.400, 77.300, 75.000, 76.300, 77.200, 77.500, 77.000, 76.500, 76.000, 75.600, 75.400, 75.400, },
35{55.800, 59.400, 63.000, 70.100, 73.200, 75.400, 77.800, 78.900, 79.800, 79.100, 78.400, 77.700, 77.000, 76.400, 76.100, 76.100, },
36{56.000, 66.200, 70.600, 74.200, 74.100, 76.000, 79.900, 84.100, 82.200, 79.600, 78.900, 78.200, 77.500, 76.900, 76.600, 76.600, },
37{58.500, 67.400, 69.200, 75.500, 78.300, 79.900, 81.700, 83.700, 84.700, 82.100, 81.400, 80.700, 80.000, 79.400, 79.100, 79.100, },
38{52.900, 70.000, 71.900, 75.900, 79.800, 81.900, 83.700, 85.600, 86.100, 83.600, 83.000, 82.200, 81.600, 81.000, 80.700, 83.700, },
39{50.700, 71.000, 73.000, 77.300, 81.600, 83.900, 85.700, 87.600, 87.900, 85.400, 84.800, 84.000, 83.400, 82.800, 82.500, 85.500, },
40{53.700, 74.000, 76.000, 80.300, 84.600, 86.900, 88.700, 90.600, 90.900, 88.400, 87.800, 87.000, 86.400, 85.800, 85.500, 88.500, },
41{56.700, 77.000, 79.000, 83.300, 87.600, 89.900, 91.700, 93.600, 93.900, 91.400, 90.800, 90.000, 89.400, 88.800, 88.500, 91.500, },
42{59.700, 80.000, 82.000, 86.300, 90.600, 92.900, 94.700, 96.600, 96.900, 94.400, 93.800, 93.000, 92.400, 91.800, 91.500, 94.500, },
43{62.700, 83.000, 85.000, 89.300, 93.600, 95.900, 97.700, 99.600, 99.900, 97.400, 96.800, 96.000, 95.400, 94.800, 94.500, 97.500, },
44{65.700, 86.000, 88.000, 92.300, 96.600, 98.900, 100.700, 102.600, 102.900, 100.400, 99.800, 99.000, 98.400, 97.800, 97.500, 100.500, },
45};
46 copyTable(config->veTable, hardCodedveTable);
47#endif
48}
hardCodedveTable
static const uint8_t hardCodedveTable[16][16]
Definition mazda_miata_1_6.cpp:47
persistent_config_s::veTable
scaled_channel< uint16_t, 10, 1 > veTable[VE_LOAD_COUNT][VE_RPM_COUNT]
Definition engine_configuration_generated_structures_alphax-2chan.h:6200

Referenced by commonGenesisCoupe().

Here is the call graph for this function:
Here is the caller graph for this function:

Go to the source code of this file.
