mazda_miata_base_maps.cpp File Reference

Functions

void miataNA_setIacCoastingBins ()

void miataNA_setCltIdleCorrBins ()

void miataNA_setCltIdleRpmBins ()

void miataNA_setIgnitionTable ()


Variables

static const float hardCodediacCoastingRpmBins [16] = { 1000, 1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000, 6500, 7000, 7500, 8000, 8500 }

static const float hardCodediacCoasting [16] = {40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0}

static const float hardCodedcltIdleCorrBins [16] = {-40.0, -30.0, -20.0, -10.0, 0.0, 9.439941, 19.120117, 30.810059, 42.509766, 54.529785, 64.21973, 71.90039, 80.0, 90.0, 100.0, 110.0}

static const float hardCodedcltIdleRpmBins [16] = {-40.0, -30.0, -20.0, 0.0, 10.0, 20.0, 30.0, 40.0, 60.0, 70.0, 80.0, 90.0, 100.0, 120.0, 130.0, 140.0}

static const float hardCodedcltIdleRpm [16] = {1180.0, 1150.0, 1130.0, 1110.0, 1090.0, 1070.0, 1050.0, 1020.0, 990.0, 970.0, 950.0, 950.0, 950.0, 950.0, 950.0, 950.0}

static const float hardCodedignitionLoadBins [16] = {10.0, 24.0, 35.0, 55.0, 65.0, 75.0, 84.0, 99.0, 110.0, 125.0, 140.0, 160.0, 180.0, 200.0, 220.0, 250.0}

static const float hardCodedignitionRpmBins [16] = {500.0, 800.0, 1000.0, 1500.0, 1800.0, 2300.0, 2900.0, 3400.0, 3900.0, 4300.0, 4800.0, 5300.0, 5900.0, 6500.0, 7200.0, 8000.0}

static const uint8_t hardCodedignitionTable [16][16]


Function Documentation

◆ miataNA_setCltIdleCorrBins()

void miataNA_setCltIdleCorrBins ( )

Definition at line 27 of file mazda_miata_base_maps.cpp.

27 {
28#if CLT_IDLE_TABLE_CLT_SIZE == 16
29 copyArray(config->cltIdleCorrBins, hardCodedcltIdleCorrBins);
30//todo static const float hardCodedcltIdleCorr[16] = {28.0, 26.40, 25.20, 24.19, 23.39, 21.0, 20.59, 20.39, 20.59, 20.39, 20.20, 20, 19.80, 19.80, 19.80, 19.80};
31//todo copyArray(config->cltIdleCorr, hardCodedcltIdleCorr);
32#endif // CLT_IDLE_TABLE_CLT_SIZE
33}
config
static constexpr persistent_config_s * config
Definition engine_configuration.h:81
hardCodedcltIdleCorrBins
static const float hardCodedcltIdleCorrBins[16]
Definition mazda_miata_base_maps.cpp:23
persistent_config_s::cltIdleCorrBins
float cltIdleCorrBins[CLT_IDLE_TABLE_CLT_SIZE]
Definition engine_configuration_generated_structures_alphax-2chan.h:6061

Referenced by miataNAcommonEngineSettings(), and setCommonMazdaNB().

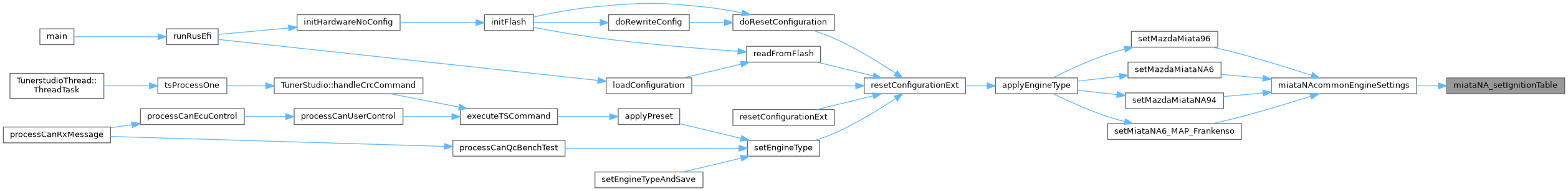

Here is the caller graph for this function:

◆ miataNA_setCltIdleRpmBins()

void miataNA_setCltIdleRpmBins ( )

Definition at line 40 of file mazda_miata_base_maps.cpp.

40 {
41#if CLT_CURVE_SIZE == 16
42 copyArray(config->cltIdleRpmBins, hardCodedcltIdleRpmBins);
43 copyArray(config->cltIdleRpm, hardCodedcltIdleRpm);
44#endif // CLT_CURVE_SIZE
45}
hardCodedcltIdleRpmBins
static const float hardCodedcltIdleRpmBins[16]
Definition mazda_miata_base_maps.cpp:35
hardCodedcltIdleRpm
static const float hardCodedcltIdleRpm[16]
Definition mazda_miata_base_maps.cpp:37
persistent_config_s::cltIdleRpmBins
scaled_channel< int16_t, 1, 1 > cltIdleRpmBins[CLT_CURVE_SIZE]
Definition engine_configuration_generated_structures_alphax-2chan.h:5778
persistent_config_s::cltIdleRpm
scaled_channel< uint8_t, 1, 20 > cltIdleRpm[CLT_CURVE_SIZE]
Definition engine_configuration_generated_structures_alphax-2chan.h:5784

Referenced by miataNAcommonEngineSettings(), and setCommonMazdaNB().

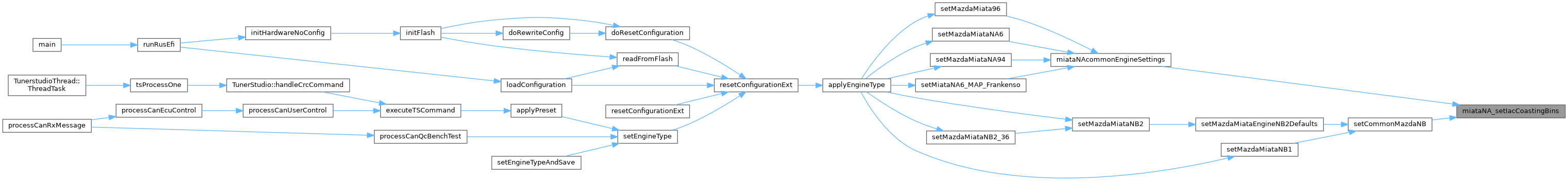

Here is the caller graph for this function:

◆ miataNA_setIacCoastingBins()

void miataNA_setIacCoastingBins ( )

Definition at line 16 of file mazda_miata_base_maps.cpp.

16 {
17#if CLT_CURVE_SIZE == 16
18 copyArray(config->iacCoastingRpmBins, hardCodediacCoastingRpmBins);
19 copyArray(config->iacCoasting, hardCodediacCoasting);
20#endif // CLT_CURVE_SIZE
21}
hardCodediacCoasting
static const float hardCodediacCoasting[16]
Definition mazda_miata_base_maps.cpp:13
hardCodediacCoastingRpmBins
static const float hardCodediacCoastingRpmBins[16]
Definition mazda_miata_base_maps.cpp:11
persistent_config_s::iacCoastingRpmBins
scaled_channel< uint8_t, 1, 100 > iacCoastingRpmBins[CLT_CURVE_SIZE]
Definition engine_configuration_generated_structures_alphax-2chan.h:5910
persistent_config_s::iacCoasting
scaled_channel< uint8_t, 2, 1 > iacCoasting[CLT_CURVE_SIZE]
Definition engine_configuration_generated_structures_alphax-2chan.h:5916

Referenced by miataNAcommonEngineSettings(), and setCommonMazdaNB().

Here is the caller graph for this function:

◆ miataNA_setIgnitionTable()

void miataNA_setIgnitionTable ( )

Definition at line 72 of file mazda_miata_base_maps.cpp.

72 {
73#if (IGN_RPM_COUNT == 16) && (IGN_LOAD_COUNT == 16)
74 copyArray(config->ignitionLoadBins, hardCodedignitionLoadBins);
75 copyArray(config->ignitionRpmBins, hardCodedignitionRpmBins);
76 copyTable(config->ignitionTable, hardCodedignitionTable);
77#endif
78}
hardCodedignitionLoadBins
static const float hardCodedignitionLoadBins[16]
Definition mazda_miata_base_maps.cpp:47
hardCodedignitionRpmBins
static const float hardCodedignitionRpmBins[16]
Definition mazda_miata_base_maps.cpp:49
hardCodedignitionTable
static const uint8_t hardCodedignitionTable[16][16]
Definition mazda_miata_base_maps.cpp:51
persistent_config_s::ignitionLoadBins
uint16_t ignitionLoadBins[IGN_LOAD_COUNT]
Definition engine_configuration_generated_structures_alphax-2chan.h:6190
persistent_config_s::ignitionRpmBins
uint16_t ignitionRpmBins[IGN_RPM_COUNT]
Definition engine_configuration_generated_structures_alphax-2chan.h:6195
persistent_config_s::ignitionTable
scaled_channel< int16_t, 10, 1 > ignitionTable[IGN_LOAD_COUNT][IGN_RPM_COUNT]
Definition engine_configuration_generated_structures_alphax-2chan.h:6185
copyTable
constexpr void copyTable(TDest(&dest)[N][M], const TSource(&source)[N][M], float multiply=1.0f)
Definition table_helper.h:176

Referenced by miataNAcommonEngineSettings().

Here is the call graph for this function:
Here is the caller graph for this function:

Variable Documentation

◆ hardCodedcltIdleCorrBins

const float hardCodedcltIdleCorrBins[16] = {-40.0, -30.0, -20.0, -10.0, 0.0, 9.439941, 19.120117, 30.810059, 42.509766, 54.529785, 64.21973, 71.90039, 80.0, 90.0, 100.0, 110.0}
static

Definition at line 23 of file mazda_miata_base_maps.cpp.

23{-40.0, -30.0, -20.0, -10.0, 0.0, 9.439941, 19.120117, 30.810059, 42.509766, 54.529785, 64.21973, 71.90039, 80.0, 90.0, 100.0, 110.0};

Referenced by cannedcltIdleCorrBins(), and miataNA_setCltIdleCorrBins().

◆ hardCodedcltIdleRpm

const float hardCodedcltIdleRpm[16] = {1180.0, 1150.0, 1130.0, 1110.0, 1090.0, 1070.0, 1050.0, 1020.0, 990.0, 970.0, 950.0, 950.0, 950.0, 950.0, 950.0, 950.0}
static

Definition at line 37 of file mazda_miata_base_maps.cpp.

37{1180.0, 1150.0, 1130.0, 1110.0, 1090.0, 1070.0, 1050.0, 1020.0, 990.0, 970.0, 950.0, 950.0, 950.0, 950.0, 950.0, 950.0};

Referenced by cannedcltIdleRpm(), and miataNA_setCltIdleRpmBins().

◆ hardCodedcltIdleRpmBins

const float hardCodedcltIdleRpmBins[16] = {-40.0, -30.0, -20.0, 0.0, 10.0, 20.0, 30.0, 40.0, 60.0, 70.0, 80.0, 90.0, 100.0, 120.0, 130.0, 140.0}
static

Definition at line 35 of file mazda_miata_base_maps.cpp.

35{-40.0, -30.0, -20.0, 0.0, 10.0, 20.0, 30.0, 40.0, 60.0, 70.0, 80.0, 90.0, 100.0, 120.0, 130.0, 140.0};

Referenced by miataNA_setCltIdleRpmBins().

◆ hardCodediacCoasting

const float hardCodediacCoasting[16] = {40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0}
static

Definition at line 13 of file mazda_miata_base_maps.cpp.

13{40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0, 40.0};

Referenced by miataNA_setIacCoastingBins().

◆ hardCodediacCoastingRpmBins

const float hardCodediacCoastingRpmBins[16] = { 1000, 1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000, 6500, 7000, 7500, 8000, 8500 }
static

Definition at line 11 of file mazda_miata_base_maps.cpp.

11{ 1000, 1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000, 6500, 7000, 7500, 8000, 8500 };

Referenced by miataNA_setIacCoastingBins().

◆ hardCodedignitionLoadBins

const float hardCodedignitionLoadBins[16] = {10.0, 24.0, 35.0, 55.0, 65.0, 75.0, 84.0, 99.0, 110.0, 125.0, 140.0, 160.0, 180.0, 200.0, 220.0, 250.0}
static

Definition at line 47 of file mazda_miata_base_maps.cpp.

47{10.0, 24.0, 35.0, 55.0, 65.0, 75.0, 84.0, 99.0, 110.0, 125.0, 140.0, 160.0, 180.0, 200.0, 220.0, 250.0};

Referenced by cannedignitionLoadBins(), and miataNA_setIgnitionTable().

◆ hardCodedignitionRpmBins

const float hardCodedignitionRpmBins[16] = {500.0, 800.0, 1000.0, 1500.0, 1800.0, 2300.0, 2900.0, 3400.0, 3900.0, 4300.0, 4800.0, 5300.0, 5900.0, 6500.0, 7200.0, 8000.0}
static

Definition at line 49 of file mazda_miata_base_maps.cpp.

49{500.0, 800.0, 1000.0, 1500.0, 1800.0, 2300.0, 2900.0, 3400.0, 3900.0, 4300.0, 4800.0, 5300.0, 5900.0, 6500.0, 7200.0, 8000.0};

Referenced by cannedignitionRpmBins(), and miataNA_setIgnitionTable().

◆ hardCodedignitionTable

const uint8_t hardCodedignitionTable[16][16]
static
Initial value:
= {
{15, 15, 20, 21, 32, 33, 34, 35, 37, 37, 38, 38, 38, 39, 40, 41, },
{15, 15, 18, 23, 30, 34, 35, 36, 37, 37, 38, 38, 38, 39, 40, 41, },
{15, 15, 18, 23, 30, 33, 34, 35, 35, 35, 36, 36, 37, 37, 38, 39, },
{15, 15, 22, 24, 28, 31, 32, 33, 33, 34, 34, 34, 35, 36, 36, 37, },
{17, 17, 22, 24, 28, 30, 32, 32, 32, 32, 33, 33, 33, 34, 35, 36, },
{18, 18, 24, 26, 27, 28, 29, 29, 28, 29, 30, 31, 31, 32, 33, 34, },
{19, 19, 24, 27, 27, 27, 28, 28, 27, 28, 29, 30, 31, 32, 32, 33, },
{19, 19, 23, 26, 26, 26, 26, 26, 26, 27, 29, 29, 30, 31, 32, 32, },
{19, 19, 23, 26, 26, 25, 26, 26, 25, 26, 27, 28, 29, 29, 30, 31, },
{17, 18, 21, 25, 26, 27, 26, 25, 24, 25, 25, 26, 26, 27, 28, 29, },
{15, 17, 20, 24, 26, 26, 25, 24, 24, 24, 24, 24, 24, 24, 25, 24, },
{13, 15, 18, 22, 22, 22, 21, 19, 18, 18, 18, 18, 19, 20, 20, 21, },
{13, 15, 17, 19, 21, 21, 20, 18, 16, 16, 16, 17, 17, 17, 17, 17, },
{14, 15, 16, 18, 19, 20, 19, 17, 14, 15, 15, 16, 16, 16, 16, 16, },
{15, 15, 15, 16, 18, 19, 18, 16, 14, 14, 15, 15, 15, 15, 15, 15, },
{15, 15, 15, 15, 17, 18, 16, 14, 13, 13, 14, 13, 13, 13, 13, 13, }
}

Definition at line 51 of file mazda_miata_base_maps.cpp.

51 {
52/* Generated by TS2C on Sun Aug 02 11:58:01 EDT 2020*/
53{/* 0 10.000 *//* 0 500.0*/15, /* 1 800.0*/15, /* 2 1000.0*/20, /* 3 1500.0*/21, /* 4 1800.0*/32, /* 5 2300.0*/33, /* 6 2900.0*/34, /* 7 3400.0*/35, /* 8 3900.0*/37, /* 9 4300.0*/37, /* 10 4800.0*/38, /* 11 5300.0*/38, /* 12 5900.0*/38, /* 13 6500.0*/39, /* 14 7200.0*/40, /* 15 8000.0*/41, },
54{/* 1 24.000 *//* 0 500.0*/15, /* 1 800.0*/15, /* 2 1000.0*/18, /* 3 1500.0*/23, /* 4 1800.0*/30, /* 5 2300.0*/34, /* 6 2900.0*/35, /* 7 3400.0*/36, /* 8 3900.0*/37, /* 9 4300.0*/37, /* 10 4800.0*/38, /* 11 5300.0*/38, /* 12 5900.0*/38, /* 13 6500.0*/39, /* 14 7200.0*/40, /* 15 8000.0*/41, },
55{/* 2 35.000 *//* 0 500.0*/15, /* 1 800.0*/15, /* 2 1000.0*/18, /* 3 1500.0*/23, /* 4 1800.0*/30, /* 5 2300.0*/33, /* 6 2900.0*/34, /* 7 3400.0*/35, /* 8 3900.0*/35, /* 9 4300.0*/35, /* 10 4800.0*/36, /* 11 5300.0*/36, /* 12 5900.0*/37, /* 13 6500.0*/37, /* 14 7200.0*/38, /* 15 8000.0*/39, },
56{/* 3 55.000 *//* 0 500.0*/15, /* 1 800.0*/15, /* 2 1000.0*/22, /* 3 1500.0*/24, /* 4 1800.0*/28, /* 5 2300.0*/31, /* 6 2900.0*/32, /* 7 3400.0*/33, /* 8 3900.0*/33, /* 9 4300.0*/34, /* 10 4800.0*/34, /* 11 5300.0*/34, /* 12 5900.0*/35, /* 13 6500.0*/36, /* 14 7200.0*/36, /* 15 8000.0*/37, },
57{/* 4 65.000 *//* 0 500.0*/17, /* 1 800.0*/17, /* 2 1000.0*/22, /* 3 1500.0*/24, /* 4 1800.0*/28, /* 5 2300.0*/30, /* 6 2900.0*/32, /* 7 3400.0*/32, /* 8 3900.0*/32, /* 9 4300.0*/32, /* 10 4800.0*/33, /* 11 5300.0*/33, /* 12 5900.0*/33, /* 13 6500.0*/34, /* 14 7200.0*/35, /* 15 8000.0*/36, },
58{/* 5 75.000 *//* 0 500.0*/18, /* 1 800.0*/18, /* 2 1000.0*/24, /* 3 1500.0*/26, /* 4 1800.0*/27, /* 5 2300.0*/28, /* 6 2900.0*/29, /* 7 3400.0*/29, /* 8 3900.0*/28, /* 9 4300.0*/29, /* 10 4800.0*/30, /* 11 5300.0*/31, /* 12 5900.0*/31, /* 13 6500.0*/32, /* 14 7200.0*/33, /* 15 8000.0*/34, },
59{/* 6 84.000 *//* 0 500.0*/19, /* 1 800.0*/19, /* 2 1000.0*/24, /* 3 1500.0*/27, /* 4 1800.0*/27, /* 5 2300.0*/27, /* 6 2900.0*/28, /* 7 3400.0*/28, /* 8 3900.0*/27, /* 9 4300.0*/28, /* 10 4800.0*/29, /* 11 5300.0*/30, /* 12 5900.0*/31, /* 13 6500.0*/32, /* 14 7200.0*/32, /* 15 8000.0*/33, },
60{/* 7 99.000 *//* 0 500.0*/19, /* 1 800.0*/19, /* 2 1000.0*/23, /* 3 1500.0*/26, /* 4 1800.0*/26, /* 5 2300.0*/26, /* 6 2900.0*/26, /* 7 3400.0*/26, /* 8 3900.0*/26, /* 9 4300.0*/27, /* 10 4800.0*/29, /* 11 5300.0*/29, /* 12 5900.0*/30, /* 13 6500.0*/31, /* 14 7200.0*/32, /* 15 8000.0*/32, },
61{/* 8 110.000 *//* 0 500.0*/19, /* 1 800.0*/19, /* 2 1000.0*/23, /* 3 1500.0*/26, /* 4 1800.0*/26, /* 5 2300.0*/25, /* 6 2900.0*/26, /* 7 3400.0*/26, /* 8 3900.0*/25, /* 9 4300.0*/26, /* 10 4800.0*/27, /* 11 5300.0*/28, /* 12 5900.0*/29, /* 13 6500.0*/29, /* 14 7200.0*/30, /* 15 8000.0*/31, },
62{/* 9 125.000 *//* 0 500.0*/17, /* 1 800.0*/18, /* 2 1000.0*/21, /* 3 1500.0*/25, /* 4 1800.0*/26, /* 5 2300.0*/27, /* 6 2900.0*/26, /* 7 3400.0*/25, /* 8 3900.0*/24, /* 9 4300.0*/25, /* 10 4800.0*/25, /* 11 5300.0*/26, /* 12 5900.0*/26, /* 13 6500.0*/27, /* 14 7200.0*/28, /* 15 8000.0*/29, },
63{/* 10 140.000 *//* 0 500.0*/15, /* 1 800.0*/17, /* 2 1000.0*/20, /* 3 1500.0*/24, /* 4 1800.0*/26, /* 5 2300.0*/26, /* 6 2900.0*/25, /* 7 3400.0*/24, /* 8 3900.0*/24, /* 9 4300.0*/24, /* 10 4800.0*/24, /* 11 5300.0*/24, /* 12 5900.0*/24, /* 13 6500.0*/24, /* 14 7200.0*/25, /* 15 8000.0*/24, },
64{/* 11 160.000 *//* 0 500.0*/13, /* 1 800.0*/15, /* 2 1000.0*/18, /* 3 1500.0*/22, /* 4 1800.0*/22, /* 5 2300.0*/22, /* 6 2900.0*/21, /* 7 3400.0*/19, /* 8 3900.0*/18, /* 9 4300.0*/18, /* 10 4800.0*/18, /* 11 5300.0*/18, /* 12 5900.0*/19, /* 13 6500.0*/20, /* 14 7200.0*/20, /* 15 8000.0*/21, },
65{/* 12 180.000 *//* 0 500.0*/13, /* 1 800.0*/15, /* 2 1000.0*/17, /* 3 1500.0*/19, /* 4 1800.0*/21, /* 5 2300.0*/21, /* 6 2900.0*/20, /* 7 3400.0*/18, /* 8 3900.0*/16, /* 9 4300.0*/16, /* 10 4800.0*/16, /* 11 5300.0*/17, /* 12 5900.0*/17, /* 13 6500.0*/17, /* 14 7200.0*/17, /* 15 8000.0*/17, },
66{/* 13 200.000 *//* 0 500.0*/14, /* 1 800.0*/15, /* 2 1000.0*/16, /* 3 1500.0*/18, /* 4 1800.0*/19, /* 5 2300.0*/20, /* 6 2900.0*/19, /* 7 3400.0*/17, /* 8 3900.0*/14, /* 9 4300.0*/15, /* 10 4800.0*/15, /* 11 5300.0*/16, /* 12 5900.0*/16, /* 13 6500.0*/16, /* 14 7200.0*/16, /* 15 8000.0*/16, },
67{/* 14 220.000 *//* 0 500.0*/15, /* 1 800.0*/15, /* 2 1000.0*/15, /* 3 1500.0*/16, /* 4 1800.0*/18, /* 5 2300.0*/19, /* 6 2900.0*/18, /* 7 3400.0*/16, /* 8 3900.0*/14, /* 9 4300.0*/14, /* 10 4800.0*/15, /* 11 5300.0*/15, /* 12 5900.0*/15, /* 13 6500.0*/15, /* 14 7200.0*/15, /* 15 8000.0*/15, },
68{/* 15 250.000 *//* 0 500.0*/15, /* 1 800.0*/15, /* 2 1000.0*/15, /* 3 1500.0*/15, /* 4 1800.0*/17, /* 5 2300.0*/18, /* 6 2900.0*/16, /* 7 3400.0*/14, /* 8 3900.0*/13, /* 9 4300.0*/13, /* 10 4800.0*/14, /* 11 5300.0*/13, /* 12 5900.0*/13, /* 13 6500.0*/13, /* 14 7200.0*/13, /* 15 8000.0*/13, }
69};

Referenced by cannedignitionTable(), couplecannedignitionTable(), miataNA_setIgnitionTable(), and pbcannedignitionTable().

Go to the source code of this file.
