hyundai.h File Reference

Functions
void	setGenesisCoupeBK1 ()
void	setGenesisCoupeBK2 ()
void	setHyundaiPb ()
void	cannedPbTables ()

Function Documentation

cannedPbTables()

void cannedPbTables

(

)

Definition at line 3 of file hyundai_pb_canned.cpp.

                      {
#if (IGN_LOAD_COUNT == 16) && (IGN_RPM_COUNT == 16) && (FUEL_LOAD_COUNT == 16) && (FUEL_RPM_COUNT == 16)
    pbcannedvvtTable1();
    pbcannedvvtTable2();
    pbcannedignitionTable();
    pbcannedveTable();
    pbcannedinjectionPhase();
    pbcannedlambdaTable();
#endif
}

Referenced by setHyundaiPb().

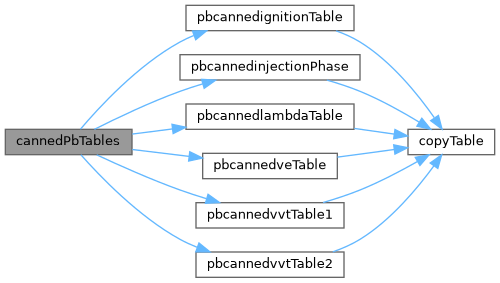

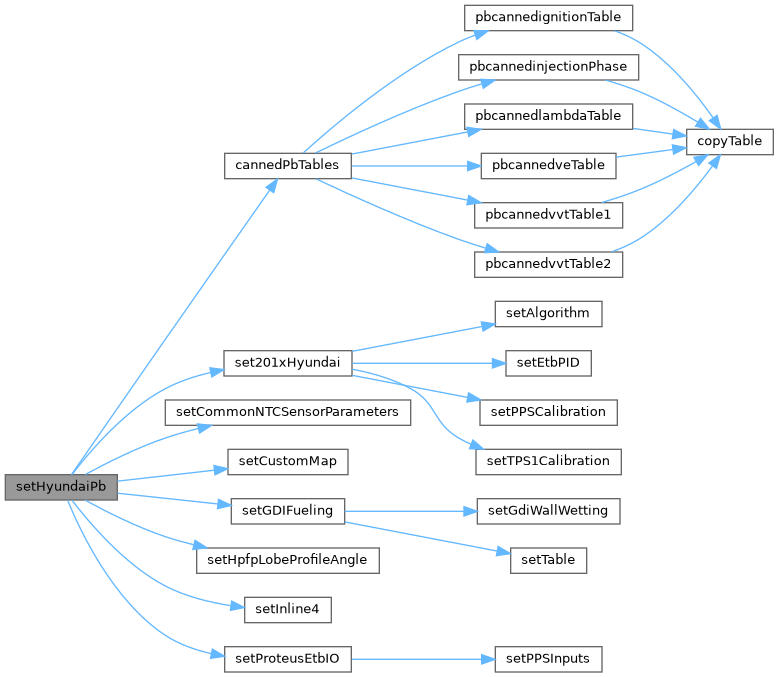

Here is the call graph for this function:

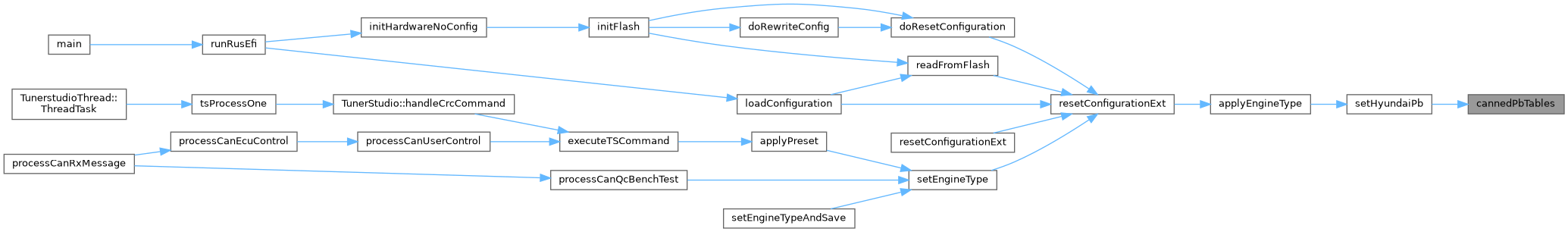

Here is the caller graph for this function:

setGenesisCoupeBK1()

void setGenesisCoupeBK1

(

)

Definition at line 431 of file hyundai.cpp.

                          {
    commonGenesisCoupe();
    // 2010-2012 315cc at 43.5psi
    // fuel system is fixed pressure 55psi
    engineConfiguration->injector.flow = 354.19; // https://www.google.com/search?q=315*sqrt%2855%2F43.5%29
    engineConfiguration->fuelReferencePressure = PSI2KPA(55);

}

Referenced by applyEngineType().

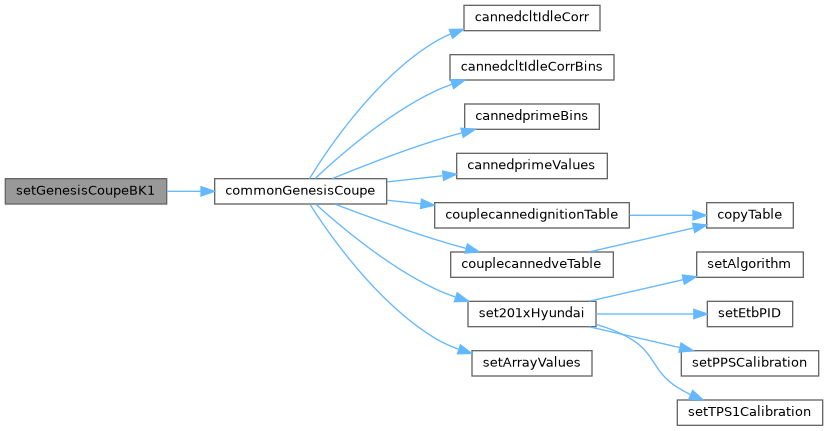

Here is the call graph for this function:

Here is the caller graph for this function:

setGenesisCoupeBK2()

void setGenesisCoupeBK2

(

)

Definition at line 440 of file hyundai.cpp.

                          {
    commonGenesisCoupe();
    // 2013+ 450cc at 43.5
    // fuel system is fixed pressure 85psi
    // flow rate P2 = flow rate P1 * sqrt(P2/P1)
    engineConfiguration->injector.flow = 629.03; // https://www.google.com/search?q=450*sqrt%2885%2F43.5%29
    engineConfiguration->fuelReferencePressure = PSI2KPA(85);
    // default "Throttle 2"
    engineConfiguration->etbFunctions[1] = DC_Wastegate;

}

Referenced by applyEngineType().

Here is the call graph for this function:

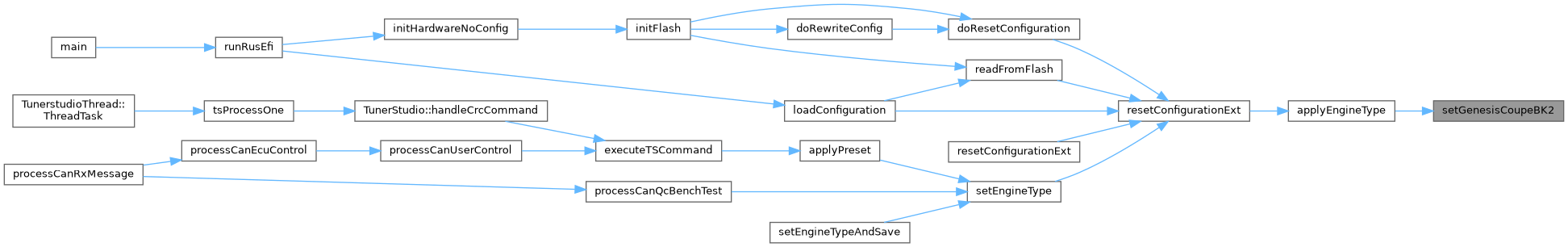

Here is the caller graph for this function:

setHyundaiPb()

void setHyundaiPb

(

)

Definition at line 39 of file hyundai.cpp.

                    {
    setGDIFueling();
    // override injection phase
    cannedPbTables();
    setInline4();
    engineConfiguration->displacement = 1.6;
    strcpy(engineConfiguration->engineMake, ENGINE_MAKE_Hyundai);
    strcpy(engineConfiguration->engineCode, "Gamma");

    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL_60_2;
    engineConfiguration->globalTriggerAngleOffset = 115;
    engineConfiguration->vvtOffsets[0] = 227;
    engineConfiguration->vvtOffsets[1] = 50;

    engineConfiguration->enableSoftwareKnock = true;
    engineConfiguration->etbIdleThrottleRange = 6.0;

    engineConfiguration->totalGearsCount = 5;
    engineConfiguration->gearRatio[0] = 12;
    engineConfiguration->gearRatio[1] = 6;
    engineConfiguration->gearRatio[2] = 4.4;
    engineConfiguration->gearRatio[3] = 2.4;
    engineConfiguration->gearRatio[4] = 1;

    // ETB buzzing is annoying :(
    engineConfiguration->disableEtbWhenEngineStopped = true;

    engineConfiguration->afr.hwChannel = EFI_ADC_NONE;
    engineConfiguration->enableAemXSeries = true;

    set201xHyundai();
    // Injectors flow 1214 cc/min at 100 bar pressure
    engineConfiguration->injector.flow = 1214;

    setCustomMap(/*lowValue*/ 20, /*mapLowValueVoltage*/ 0.79, /*highValue*/ 101.3, /*mapHighValueVoltage*/ 4);

    engineConfiguration->mc33_hpfp_i_peak = 10;
    engineConfiguration->mc33_hpfp_i_hold = 4;

    engineConfiguration->vvtMode[0] = VVT_SINGLE_TOOTH;
    engineConfiguration->vvtMode[1] = VVT_SINGLE_TOOTH;

    engineConfiguration->hpfpCamLobes = 4;
    setHpfpLobeProfileAngle(engineConfiguration->hpfpCamLobes);
    engineConfiguration->rethrowHardFault = true;

    engineConfiguration->highPressureFuel.v1 = 0.5; /* volts */;
    engineConfiguration->highPressureFuel.value1 = 0;
    engineConfiguration->highPressureFuel.v2 = 4.5; /* volts */;
    // page 98, Fuel System > Engine Control System > Rail Pressure Sensor (RPS) > Specifications
    engineConfiguration->highPressureFuel.value2 = 20'000;

#ifdef HW_HELLEN_4K_GDI
    engineConfiguration->starterControlPin = Gpio::TLE9104_2_OUT_2; // vvt3

#endif

#ifdef HW_HELLEN_4CHAN
    engineConfiguration->triggerInputPins[0] = Gpio::H144_IN_CAM;
    engineConfiguration->triggerInputPins[1] = Gpio::H144_IN_D_4;
    engineConfiguration->highPressureFuel.hwChannel = H144_IN_O2S2;

    engineConfiguration->starterControlPin = Gpio::H144_OUT_PWM5; // F1
    engineConfiguration->startStopButtonPin = Gpio::H144_IN_VSS; // C4
    config->boardUse2stepPullDown = true; // looks like 1K extra pull-down is needed on the harness?! :(
    engineConfiguration->camInputs[0] = Gpio::H144_IN_D_4; // E6
    engineConfiguration->map.sensor.hwChannel = H144_IN_MAP2;
#endif // HW_HELLEN_4CHAN

#if defined(HW_HELLEN_4CHAN) || EFI_UNIT_TEST
    engineConfiguration->hpfpValvePin = Gpio::H144_OUT_IO6; // E2
#endif // HW_HELLEN_4CHAN

#if HW_PROTEUS && EFI_PROD_CODE
    engineConfiguration->highPressureFuel.hwChannel = PROTEUS_IN_ANALOG_VOLT_4;
    setCommonNTCSensorParameters(&engineConfiguration->clt);
    setCommonNTCSensorParameters(&engineConfiguration->iat);

//    engineConfiguration->acRelayPin = Gpio::PROTEUS_LS_6;
    engineConfiguration->acSwitch = PROTEUS_DIGITAL_5;

    engineConfiguration->fanPin = Gpio::PROTEUS_LS_5;
    engineConfiguration->tachOutputPin = Gpio::PROTEUS_IGN_12;
    engineConfiguration->hpfpValvePin = Gpio::PROTEUS_LS_6;
    engineConfiguration->vvtPins[0] = Gpio::PROTEUS_LS_15; // intake
    engineConfiguration->vvtPins[1] = Gpio::PROTEUS_LS_16; // exhaust


    engineConfiguration->triggerInputPins[0] = PROTEUS_VR_1;
    engineConfiguration->camInputs[0] = PROTEUS_DIGITAL_1;
    engineConfiguration->camInputs[1] = PROTEUS_DIGITAL_2; // currently intake, TODO: flip!

    setProteusEtbIO();

// something something input levels are not happy for digital input pin?
    engineConfiguration->starterControlPin = Gpio::PROTEUS_LS_14;
    engineConfiguration->startStopButtonPin = PROTEUS_IN_AV_6_DIGITAL;
#endif // HW_PROTEUS
    engineConfiguration->startStopButtonMode = PI_DEFAULT;

#if HW_PROTEUS || HW_HELLEN_4CHAN
    strncpy(config->luaScript, GET_BIT_RANGE_LSB TWO_BYTES_LSB PRINT_ARRAY SET_TWO_BYTES_LSB HYUNDAI_SUM_NIBBLES R"(

GDI4_BASE_ADDRESS = 0xBB20
GDI_CHANGE_ADDRESS = GDI4_BASE_ADDRESS + 0x10

GDI4_CAN_SET_TAG = 0x78
local data_set_settings = { GDI4_CAN_SET_TAG, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }

FIXED_POINT = 128

setTickRate(100)

function onCanConfiguration3(bus, id, dlc, data)
    --  print("Received configuration3 "..arrayToString(data))
    pumpPeak = getTwoBytesLSB(data, 6, 1 / 128)
    print("GDI4 says PumpPeakCurrent ".. pumpPeak)
    setLuaGauge(1, pumpPeak)
end

function onCanVersion(bus, id, dlc, data)
    year = data[1] * 100 + data[2]
    month = data[3]
    day = data[4]
--  print ("GDI4 firmware " ..year ..'/' ..month ..'/' ..day)
end

canRxAdd(GDI4_BASE_ADDRESS + 3, onCanConfiguration3)
canRxAdd(GDI4_BASE_ADDRESS + 5, onCanVersion)


EMS_DCT11_128 = 0x80
EMS_DCT12_129 = 0x81
EMS_H12_399 = 0x18f
EMS6_608 = 0x260
EMS5_672 = 0x2a0
EMS11_790 = 0x316
EMS12_809 = 0x329
EMS9_898 = 0x382
EMS14_1349 = 0x545

counter = 0

payLoad128 = { 0x00, 0x17, 0x70, 0x0F, 0x1B, 0x2C, 0x1B, 0x75 }
payLoad129 = { 0x40, 0x84, 0x5F, 0x00, 0x00, 0x00, 0x00, 0x75 }
payLoad399 = { 0x00, 0x30, 0x1d, 0x00, 0x00, 0x63, 0x00, 0x00 }
payLoad608 = { 0x05, 0x1d, 0x00, 0x30, 0x01, 0xa5, 0x7f, 0x31 }
payLoad672 = { 0xe0, 0x00, 0x5f, 0x98, 0x39, 0x12, 0x9e, 0x08 }
payLoad809 = { 0xd7, 0x7b, 0x7e, 0x0c, 0x11, 0x2c, 0x00, 0x10 }
payLoad898 = { 0x40, 0xfe, 0x0f, 0x00, 0x00, 0x00, 0x00, 0x08 }
payLoad1349 = { 0xCA, 0x16, 0x00, 0x8A, 0x75, 0xFF, 0x75, 0xFF }

speedSensor = Sensor.new("VehicleSpeed")
speedSensor : setTimeout(3000)

function onCluPacket(bus, id, dlc, data)
    speedKph = getBitRange(data, 8, 9) * 0.5
--  print('onCAR_SPEED ' ..speedKph)
    speedSensor : set(speedKph)
end

canRxAdd(1, 1264, onCluPacket)

function onTick()
    local RPMread = math.floor(getSensor("RPM") * 4)
    local RPMhi = RPMread >> 8
    local RPMlo = RPMread & 0xff

    payLoad128[3] = RPMlo
    payLoad128[4] = RPMhi

    counter = (counter + 1) % 16

    check128 = hyundaiSumNibbles(payLoad128, counter)
    payLoad128[8] = check128 * 16 + counter
    txCan(1, EMS_DCT11_128, 0, payLoad128)

    check129 = hyundaiSumNibbles(payLoad129, counter)
    payLoad129[8] = check129 * 16 + counter
    txCan(1, EMS_DCT12_129, 0, payLoad129)

    canRPMpayload = { 0x05, 0x1B, RPMlo, RPMhi, 0x1B, 0x2C, 0x00, 0x7F }

    txCan(1, EMS11_790, 0, canRPMpayload)
    txCan(1, EMS14_1349, 0, payLoad1349)

    txCan(1, EMS_H12_399, 0, payLoad399)
    txCan(1, EMS6_608, 0, payLoad608)
    txCan(1, EMS5_672, 0, payLoad672)
    txCan(1, EMS12_809, 0, payLoad809)
    txCan(1, EMS9_898, 0, payLoad898)

    pumpPeakCurrent = getCalibration("mc33_hpfp_i_peak")
    pumpHoldCurrent = getCalibration("mc33_hpfp_i_hold")

    TholdOff = getCalibration("mc33_t_hold_off")
    THoldDuration = getCalibration("mc33_t_hold_tot")


    setTwoBytesLsb(data_set_settings, 1, TholdOff)
    setTwoBytesLsb(data_set_settings, 3, THoldDuration)
    setTwoBytesLsb(data_set_settings, 5, pumpPeakCurrent * FIXED_POINT)
--  print('Will be sending ' ..arrayToString(data_set_settings))
    txCan(1, GDI_CHANGE_ADDRESS + 3, 1, data_set_settings)

    setTwoBytesLsb(data_set_settings, 1, pumpHoldCurrent * FIXED_POINT)
    setTwoBytesLsb(data_set_settings, 3, GDI4_BASE_ADDRESS)
--  print('Will be sending ' ..arrayToString(data_set_settings))
    txCan(1, GDI_CHANGE_ADDRESS + 4, 1, data_set_settings)
end

)", efi::size(config->luaScript));
#endif // HW_PROTEUS

}

Referenced by applyEngineType().

Here is the call graph for this function:

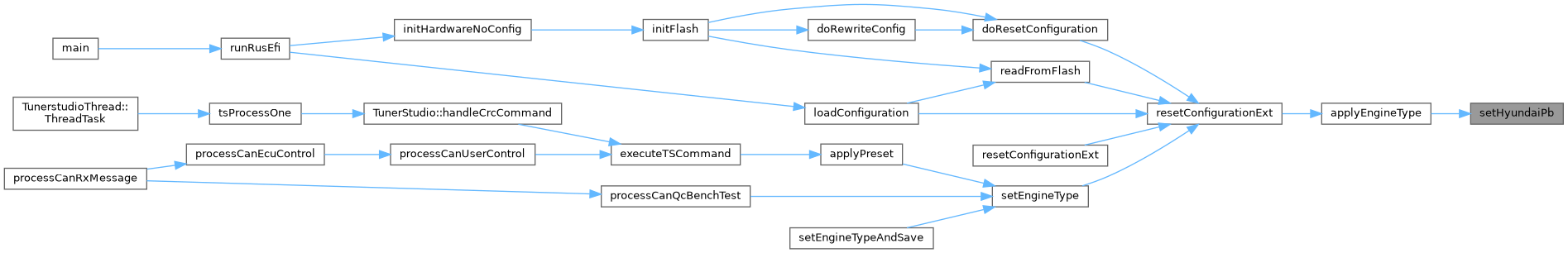

Here is the caller graph for this function:

Go to the source code of this file.
