WINBOND_W25Q

Functions

static bool w25q_find_id (const uint8_t *set, size_t size, uint8_t element)

static flash_error_t w25q_poll_status (SNORDriver *devp)

static void w25q_reset_memory (SNORDriver *devp)

void snor_device_init (SNORDriver *devp)

flash_error_t snor_device_read (SNORDriver *devp, flash_offset_t offset, size_t n, uint8_t *rp)

flash_error_t snor_device_program (SNORDriver *devp, flash_offset_t offset, size_t n, const uint8_t *pp)

flash_error_t snor_device_start_erase_all (SNORDriver *devp)

flash_error_t snor_device_start_erase_sector (SNORDriver *devp, flash_sector_t sector)

flash_error_t snor_device_verify_erase (SNORDriver *devp, flash_sector_t sector)

flash_error_t snor_device_query_erase (SNORDriver *devp, uint32_t *msec)

flash_error_t snor_device_read_sfdp (SNORDriver *devp, flash_offset_t offset, size_t n, uint8_t *rp)

void snor_activate_xip (SNORDriver *devp)

void snor_reset_xip (SNORDriver *devp)


Variables

flash_descriptor_t snor_descriptor
 W25Q128 descriptor.

const wspi_command_t snor_memmap_read
 Fast read command for memory mapped mode.

static const wspi_command_t w25q_cmd_read_id

static const wspi_command_t w25q_cmd_write_evconf

static const wspi_command_t w25q_cmd_write_enable

static const uint8_t w25q_manufacturer_ids [] = W25Q_SUPPORTED_MANUFACTURE_IDS

static const uint8_t w25q_memory_type_ids [] = W25Q_SUPPORTED_MEMORY_TYPE_IDS


Detailed Description

Function Documentation

◆ snor_activate_xip()

void snor_activate_xip ( SNORDriver *  devp)

Definition at line 489 of file hal_flash_device.c.

489 {
490}

◆ snor_device_init()

void snor_device_init ( SNORDriver *  devp)

Definition at line 304 of file hal_flash_device.c.

304 {
305 uint8_t id[3];
306#if SNOR_BUS_DRIVER == SNOR_BUS_DRIVER_SPI
307 /* Reading device ID.*/
308 bus_cmd_receive(devp, W25Q_CMD_READ_JEDEC_ID,
309 3U, id);
310#else /* SNOR_BUS_DRIVER == SNOR_BUS_DRIVER_WSPI */
311 /* Attempting a reset of the XIP mode, it could be in an unexpected state
312 because a CPU reset does not reset the memory too.*/
313 snor_reset_xip(devp);
314
315 /* Attempting a reset of the device, it could be in an unexpected state
316 because a CPU reset does not reset the memory too.*/
317 w25q_reset_memory(devp);
318
319 /* Reading device ID and unique ID.*/
320 wspiReceive(devp, &w25q_cmd_read_id,
321 3U, id);
322#endif /* SNOR_BUS_DRIVER == SNOR_BUS_DRIVER_WSPI */
323
324 /* Checking if the device is white listed.*/
325 osalDbgAssert(w25q_find_id(w25q_manufacturer_ids,
326 sizeof(w25q_manufacturer_ids),
327 id[0]),
328 "invalid manufacturer id");
329 osalDbgAssert(w25q_find_id(w25q_memory_type_ids,
330 sizeof(w25q_memory_type_ids),
331 id[1]),
332 "invalid memory type id");
333
334 /* Setting up the device size.*/
335 snor_descriptor.sectors_count = (1U << (size_t)id[2]) /
336 SECTOR_SIZE;
337 snor_descriptor.size = (size_t)snor_descriptor.sectors_count * SECTOR_SIZE;
338}
size_t
snor_reset_xip
void snor_reset_xip(SNORDriver *devp)
Definition hal_flash_device.c:595
snor_descriptor
flash_descriptor_t snor_descriptor
Flash descriptor.
Definition hal_flash_device.c:39
w25q_manufacturer_ids
static const uint8_t w25q_manufacturer_ids[]
Definition hal_flash_device.c:297
w25q_find_id
static bool w25q_find_id(const uint8_t *set, size_t size, uint8_t element)
Definition hal_flash_device.c:183
w25q_cmd_read_id
static const wspi_command_t w25q_cmd_read_id
Definition hal_flash_device.c:102
w25q_memory_type_ids
static const uint8_t w25q_memory_type_ids[]
Definition hal_flash_device.c:298
w25q_reset_memory
static void w25q_reset_memory(SNORDriver *devp)
Definition hal_flash_device.c:222

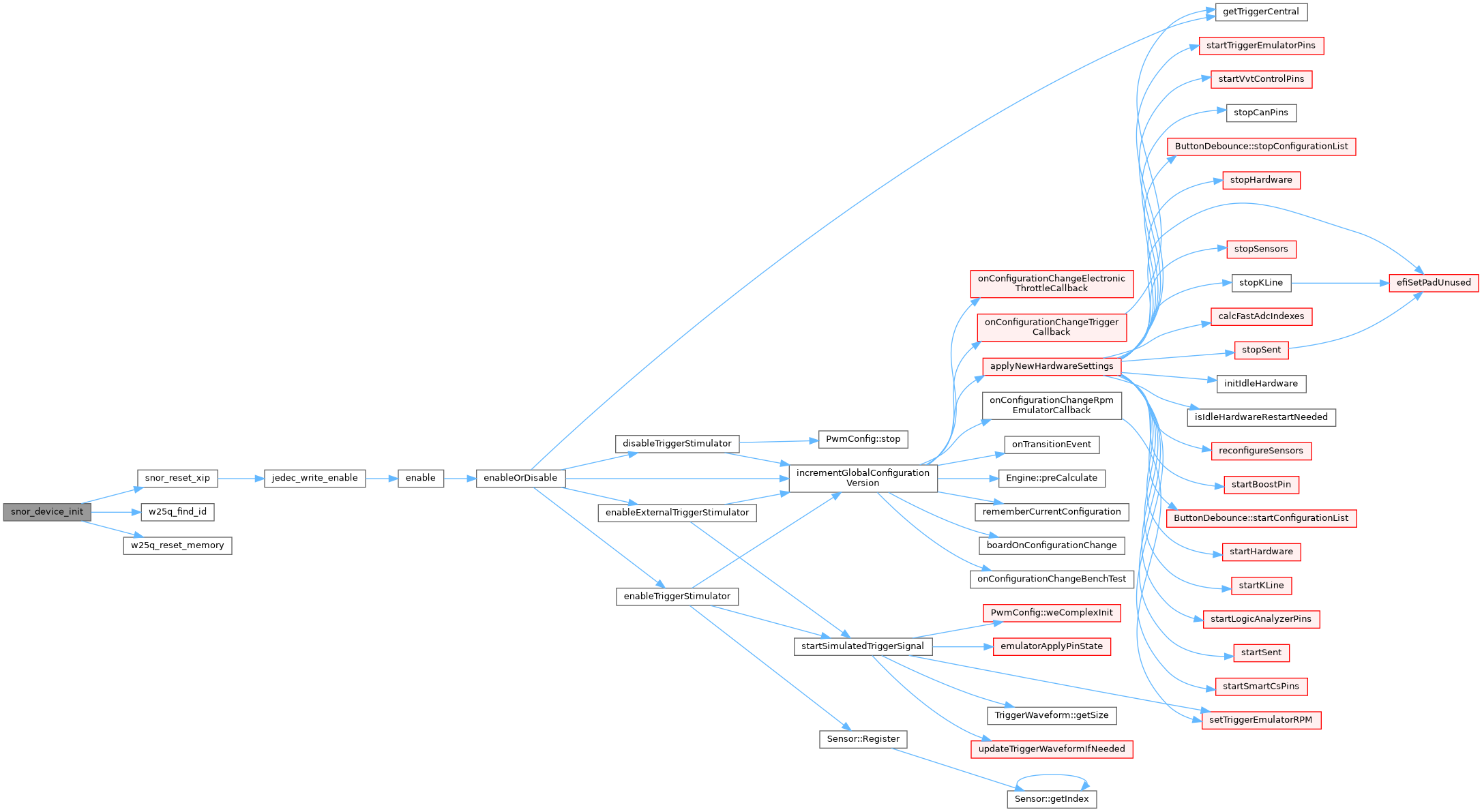

Here is the call graph for this function:

◆ snor_device_program()

flash_error_t snor_device_program ( SNORDriver *  devp,
flash_offset_t  offset,
size_t  n,
const uint8_t *  pp
)

Definition at line 356 of file hal_flash_device.c.

357 {
358
359 /* Data is programmed page by page.*/
360 while (n > 0U) {
361 flash_error_t err;
362
363 /* Data size that can be written in a single program page operation.*/
364 size_t chunk = (size_t)(((offset | PAGE_MASK) + 1U) - offset);
365 if (chunk > n) {
366 chunk = n;
367 }
368
369 /* Enabling write operation.*/
370 bus_cmd(devp, W25Q_CMD_WRITE_ENABLE);
371
372 /* Page program command.*/
373 bus_cmd_addr_send(devp, W25Q_CMD_PAGE_PROGRAM, offset,
374 chunk, pp);
375
376 /* Wait for status and check errors.*/
377 err = w25q_poll_status(devp);
378 if (err != FLASH_NO_ERROR) {
379
380 return err;
381 }
382
383 /* Next page.*/
384 offset += chunk;
385 pp += chunk;
386 n -= chunk;
387 }
388
389 return FLASH_NO_ERROR;
390}
w25q_poll_status
static flash_error_t w25q_poll_status(SNORDriver *devp)
Definition hal_flash_device.c:194
offset
uint16_t offset
Definition tunerstudio.h:0
Here is the call graph for this function:

◆ snor_device_query_erase()

flash_error_t snor_device_query_erase ( SNORDriver *  devp,
uint32_t *  msec
)

Definition at line 453 of file hal_flash_device.c.

453 {
454 uint8_t sts;
455 /* Read status command.*/
456 bus_cmd_receive(devp, W25Q_CMD_READ_STATUS_REGISTER,
457 1, &sts);
458
459 /* If the P/E bit is 1 (busy) report that the operation is still in progress.*/
460 if ((sts & W25Q_FLAGS_BUSY) != 0U) {
461
462 /* Recommended time before polling again, this is a simplified
463 implementation.*/
464 if (msec != NULL) {
465 *msec = 1U;
466 }
467
468 return FLASH_BUSY_ERASING;
469 }
470
471 /* Checking for errors.*/
472 /* NOP */
473
474 return FLASH_NO_ERROR;
475}

◆ snor_device_read()

flash_error_t snor_device_read ( SNORDriver *  devp,
flash_offset_t  offset,
size_t  n,
uint8_t *  rp
)

Definition at line 340 of file hal_flash_device.c.

341 {
342
343#if SNOR_BUS_DRIVER == SNOR_BUS_DRIVER_WSPI
344 /* Fast read command in WSPI mode.*/
345 bus_cmd_addr_dummy_receive(devp, W25Q_CMD_FAST_READ,
346 offset, W25Q_READ_DUMMY_CYCLES, n, rp);
347#else
348 /* Normal read command in SPI mode.*/
349 bus_cmd_addr_receive(devp, W25Q_CMD_READ,
350 offset, n, rp);
351#endif
352
353 return FLASH_NO_ERROR;
354}

◆ snor_device_read_sfdp()

flash_error_t snor_device_read_sfdp ( SNORDriver *  devp,
flash_offset_t  offset,
size_t  n,
uint8_t *  rp
)

Definition at line 477 of file hal_flash_device.c.

478 {
479
480 (void)devp;
481 (void)rp;
482 (void)offset;
483 (void)n;
484
485 return FLASH_NO_ERROR;
486}

◆ snor_device_start_erase_all()

flash_error_t snor_device_start_erase_all ( SNORDriver *  devp)

Definition at line 392 of file hal_flash_device.c.

392 {
393
394 /* Enabling write operation.*/
395 bus_cmd(devp, W25Q_CMD_WRITE_ENABLE);
396
397 /* Bulk erase command.*/
398 bus_cmd(devp, W25Q_CMD_BULK_ERASE);
399
400 return FLASH_NO_ERROR;
401}

◆ snor_device_start_erase_sector()

flash_error_t snor_device_start_erase_sector ( SNORDriver *  devp,
flash_sector_t  sector
)

Definition at line 403 of file hal_flash_device.c.

404 {
405 flash_offset_t offset = (flash_offset_t)(sector * SECTOR_SIZE);
406
407 /* Enabling write operation.*/
408 bus_cmd(devp, W25Q_CMD_WRITE_ENABLE);
409
410 /* Sector erase command.*/
411 bus_cmd_addr(devp, CMD_SECTOR_ERASE, offset);
412
413 return FLASH_NO_ERROR;
414}

◆ snor_device_verify_erase()

flash_error_t snor_device_verify_erase ( SNORDriver *  devp,
flash_sector_t  sector
)

Definition at line 416 of file hal_flash_device.c.

417 {
418 uint8_t cmpbuf[W25Q_COMPARE_BUFFER_SIZE];
419 flash_offset_t offset;
420 size_t n;
421
422 /* Read command.*/
423 offset = (flash_offset_t)(sector * SECTOR_SIZE);
424 n = SECTOR_SIZE;
425 while (n > 0U) {
426#if SNOR_BUS_DRIVER == SNOR_BUS_DRIVER_WSPI
427 bus_cmd_addr_dummy_receive(devp, W25Q_CMD_FAST_READ,
428 offset, W25Q_READ_DUMMY_CYCLES,
429 W25Q_COMPARE_BUFFER_SIZE, cmpbuf);
430#else
431 /* Normal read command in SPI mode.*/
432 bus_cmd_addr_receive(devp, W25Q_CMD_READ,
433 offset, W25Q_COMPARE_BUFFER_SIZE, cmpbuf);
434#endif
435
436 /* Checking for erased state of current buffer.*/
437 for (size_t i = 0; i < W25Q_COMPARE_BUFFER_SIZE; i++) {
438 if (cmpbuf[i] != 0xFFU) {
439 /* Ready state again.*/
440 devp->state = FLASH_READY;
441
442 return FLASH_ERROR_VERIFY;
443 }
444 }
445
446 offset += W25Q_COMPARE_BUFFER_SIZE;
447 n -= W25Q_COMPARE_BUFFER_SIZE;
448 }
449
450 return FLASH_NO_ERROR;
451}

◆ snor_reset_xip()

void snor_reset_xip ( SNORDriver *  devp)

Definition at line 492 of file hal_flash_device.c.

492 {
493 wspi_command_t cmd;
494 uint8_t buf[1];
495
496 /* Resetting XIP mode by reading one byte without XIP confirmation bit.*/
497 cmd.cmd = 0U;
498 cmd.alt = 0xFFU;
499 cmd.addr = 0U;
500 cmd.dummy = W25Q_READ_DUMMY_CYCLES;
501 cmd.cfg = WSPI_CFG_CMD_MODE_NONE |
502 WSPI_CFG_ADDR_SIZE_24 |
503#if W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI1L
504 WSPI_CFG_ADDR_MODE_ONE_LINE |
505 WSPI_CFG_DATA_MODE_ONE_LINE |
506#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI2L
507 WSPI_CFG_ADDR_MODE_TWO_LINES |
508 WSPI_CFG_DATA_MODE_TWO_LINES |
509#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI4L
510 WSPI_CFG_ADDR_MODE_FOUR_LINES |
511 WSPI_CFG_DATA_MODE_FOUR_LINES |
512#else
513 WSPI_CFG_ADDR_MODE_EIGHT_LINES |
514 WSPI_CFG_DATA_MODE_EIGHT_LINES |
515#endif
516 WSPI_CFG_ALT_MODE_FOUR_LINES | /* Always 4 lines, note.*/
517 WSPI_CFG_ALT_SIZE_8;
518 wspiReceive(devp, &cmd, 1, buf);
519
520 /* Enabling write operation.*/
521 bus_cmd(devp, W25Q_CMD_WRITE_ENABLE);
522}

◆ w25q_find_id()

static bool w25q_find_id ( const uint8_t *  set,
size_t  size,
uint8_t  element
)
static

Definition at line 183 of file hal_flash_device.c.

183 {
184 size_t i;
185
186 for (i = 0; i < size; i++) {
187 if (set[i] == element) {
188 return true;
189 }
190 }
191 return false;
192}
size
composite packet size
Definition tooth_logger.cpp:23

Referenced by snor_device_init().

Here is the caller graph for this function:

◆ w25q_poll_status()

static flash_error_t w25q_poll_status ( SNORDriver *  devp)
static

Definition at line 194 of file hal_flash_device.c.

194 {
195 int timeout = 100;
196
197 do {
198 uint8_t sts;
199 /* Read status command.*/
200 bus_cmd_receive(devp, W25Q_CMD_READ_STATUS_REGISTER,
201 1, &sts);
202 if ((sts & W25Q_FLAGS_BUSY) == 0U) {
203 break;
204 }
205#if W25Q_NICE_WAITING == TRUE
206 /* TODO: release bus so other users can access it while we are waiting */
207 osalThreadSleepMilliseconds(1);
208#endif
209 } while (--timeout);
210
211 if (timeout <= 0) {
212 return FLASH_ERROR_PROGRAM;
213 }
214
215 /* Checking for errors.*/
216 /* NOP */
217
218 return FLASH_NO_ERROR;
219}

Referenced by snor_device_program().

Here is the caller graph for this function:

◆ w25q_reset_memory()

static void w25q_reset_memory ( SNORDriver *  devp)
static

Definition at line 222 of file hal_flash_device.c.

222 {
223
224 /* 1x W25Q_CMD_RESET_ENABLE command.*/
225 static const wspi_command_t cmd_reset_enable_1 = {
226 .cmd = W25Q_CMD_RESET_ENABLE,
227 .cfg = WSPI_CFG_CMD_MODE_ONE_LINE,
228 .addr = 0,
229 .alt = 0,
230 .dummy = 0
231 };
232
233 /* 1x W25Q_CMD_RESET_MEMORY command.*/
234 static const wspi_command_t cmd_reset_1 = {
235 .cmd = W25Q_CMD_RESET,
236 .cfg = WSPI_CFG_CMD_MODE_ONE_LINE,
237 .addr = 0,
238 .alt = 0,
239 .dummy = 0
240 };
241
242 /* If the device is in one bit mode then the following commands are
243 rejected because shorter than 8 bits. If the device is in multiple
244 bits mode then the commands are accepted and the device is reset to
245 one bit mode.*/
246#if W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI4L
247 /* 4x W25Q_CMD_RESET_ENABLE command.*/
248 static const wspi_command_t cmd_reset_enable_4 = {
249 .cmd = W25Q_CMD_RESET_ENABLE,
250 .cfg = WSPI_CFG_CMD_MODE_FOUR_LINES,
251 .addr = 0,
252 .alt = 0,
253 .dummy = 0
254 };
255
256 /* 4x W25Q_CMD_RESET_MEMORY command.*/
257 static const wspi_command_t cmd_reset_4 = {
258 .cmd = W25Q_CMD_RESET,
259 .cfg = WSPI_CFG_CMD_MODE_FOUR_LINES,
260 .addr = 0,
261 .alt = 0,
262 .dummy = 0
263 };
264
265 wspiCommand(devp, &cmd_reset_enable_4);
266 wspiCommand(devp, &cmd_reset_memory_4);
267#else
268 /* 2x W25Q_CMD_RESET_ENABLE command.*/
269 static const wspi_command_t cmd_reset_enable_2 = {
270 .cmd = W25Q_CMD_RESET_ENABLE,
271 .cfg = WSPI_CFG_CMD_MODE_TWO_LINES,
272 .addr = 0,
273 .alt = 0,
274 .dummy = 0
275 };
276
277 /* 2x W25Q_CMD_RESET_MEMORY command.*/
278 static const wspi_command_t cmd_reset_memory_2 = {
279 .cmd = W25Q_CMD_RESET_MEMORY,
280 .cfg = WSPI_CFG_CMD_MODE_TWO_LINES,
281 .addr = 0,
282 .alt = 0,
283 .dummy = 0
284 };
285
286 wspiCommand(devp, &cmd_reset_enable_2);
287 wspiCommand(devp, &cmd_reset_2);
288#endif
289
290 /* Now the device should be in one bit mode for sure and we perform a
291 device reset.*/
292 wspiCommand(devp, &cmd_reset_enable_1);
293 wspiCommand(devp, &cmd_reset_1);
294}

Referenced by snor_device_init().

Here is the caller graph for this function:

Variable Documentation

◆ snor_descriptor

flash_descriptor_t snor_descriptor
Initial value:
= {
.attributes = FLASH_ATTR_ERASED_IS_ONE | FLASH_ATTR_REWRITABLE |
FLASH_ATTR_SUSPEND_ERASE_CAPABLE,
.page_size = PAGE_SIZE,
.sectors_count = 0U,
.sectors = NULL,
.sectors_size = SECTOR_SIZE,
.address = 0U,
.size = 0U
}

W25Q128 descriptor.

Flash descriptor.

Definition at line 54 of file hal_flash_device.c.

54 {
55 .attributes = FLASH_ATTR_ERASED_IS_ONE | FLASH_ATTR_REWRITABLE |
56 FLASH_ATTR_SUSPEND_ERASE_CAPABLE,
57 .page_size = PAGE_SIZE,
58 .sectors_count = 0U, /* It is overwritten.*/
59 .sectors = NULL,
60 .sectors_size = SECTOR_SIZE,
61 .address = 0U,
62 .size = 0U /* It is overwritten.*/
63
64};

◆ snor_memmap_read

const wspi_command_t snor_memmap_read
Initial value:
= {
.cmd = W25Q_CMD_FAST_READ,
.addr = 0,
.dummy = W25Q_READ_DUMMY_CYCLES,
.cfg = WSPI_CFG_ADDR_SIZE_24 |
#if W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI1L
WSPI_CFG_CMD_MODE_ONE_LINE |
WSPI_CFG_ADDR_MODE_ONE_LINE |
WSPI_CFG_DATA_MODE_ONE_LINE |
#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI2L
WSPI_CFG_CMD_MODE_TWO_LINES |
WSPI_CFG_ADDR_MODE_TWO_LINES |
WSPI_CFG_DATA_MODE_TWO_LINES |
#else
WSPI_CFG_CMD_MODE_FOUR_LINES |
WSPI_CFG_ADDR_MODE_FOUR_LINES |
WSPI_CFG_DATA_MODE_FOUR_LINES |
#endif
WSPI_CFG_ALT_MODE_FOUR_LINES |
WSPI_CFG_ALT_SIZE_8 |
WSPI_CFG_SIOO
}

Fast read command for memory mapped mode.

Definition at line 71 of file hal_flash_device.c.

71 {
72 .cmd = W25Q_CMD_FAST_READ,
73 .addr = 0,
74 .dummy = W25Q_READ_DUMMY_CYCLES,
75 .cfg = WSPI_CFG_ADDR_SIZE_24 |
76#if W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI1L
77 WSPI_CFG_CMD_MODE_ONE_LINE |
78 WSPI_CFG_ADDR_MODE_ONE_LINE |
79 WSPI_CFG_DATA_MODE_ONE_LINE |
80#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI2L
81 WSPI_CFG_CMD_MODE_TWO_LINES |
82 WSPI_CFG_ADDR_MODE_TWO_LINES |
83 WSPI_CFG_DATA_MODE_TWO_LINES |
84#else
85 WSPI_CFG_CMD_MODE_FOUR_LINES |
86 WSPI_CFG_ADDR_MODE_FOUR_LINES |
87 WSPI_CFG_DATA_MODE_FOUR_LINES |
88#endif
89 WSPI_CFG_ALT_MODE_FOUR_LINES | /* Always 4 lines, note.*/
90 WSPI_CFG_ALT_SIZE_8 |
91 WSPI_CFG_SIOO
92};

◆ w25q_cmd_read_id

const wspi_command_t w25q_cmd_read_id
static
Initial value:
= {
.cmd = W25Q_CMD_READ_JEDEC_ID,
.cfg = 0U |
#if W25Q_SWITCH_WIDTH == TRUE
WSPI_CFG_CMD_MODE_ONE_LINE |
WSPI_CFG_DATA_MODE_ONE_LINE,
#else
#if W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI1L
WSPI_CFG_CMD_MODE_ONE_LINE |
WSPI_CFG_DATA_MODE_ONE_LINE,
#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI2L
WSPI_CFG_CMD_MODE_TWO_LINES |
WSPI_CFG_DATA_MODE_TWO_LINES,
#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI4L
WSPI_CFG_CMD_MODE_FOUR_LINES |
WSPI_CFG_DATA_MODE_FOUR_LINES,
#else
WSPI_CFG_CMD_MODE_EIGHT_LINES |
WSPI_CFG_DATA_MODE_EIGHT_LINES,
#endif
#endif
.addr = 0,
.alt = 0,
.dummy = 0
}

Definition at line 102 of file hal_flash_device.c.

102 {
103 .cmd = W25Q_CMD_READ_JEDEC_ID,
104 .cfg = 0U |
105#if W25Q_SWITCH_WIDTH == TRUE
106 WSPI_CFG_CMD_MODE_ONE_LINE |
107 WSPI_CFG_DATA_MODE_ONE_LINE,
108#else
109#if W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI1L
110 WSPI_CFG_CMD_MODE_ONE_LINE |
111 WSPI_CFG_DATA_MODE_ONE_LINE,
112#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI2L
113 WSPI_CFG_CMD_MODE_TWO_LINES |
114 WSPI_CFG_DATA_MODE_TWO_LINES,
115#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI4L
116 WSPI_CFG_CMD_MODE_FOUR_LINES |
117 WSPI_CFG_DATA_MODE_FOUR_LINES,
118#else
119 WSPI_CFG_CMD_MODE_EIGHT_LINES |
120 WSPI_CFG_DATA_MODE_EIGHT_LINES,
121#endif
122#endif
123 .addr = 0,
124 .alt = 0,
125 .dummy = 0
126};

Referenced by snor_device_init().

◆ w25q_cmd_write_enable

const wspi_command_t w25q_cmd_write_enable
static
Initial value:
= {
.cmd = W25Q_CMD_WRITE_ENABLE,
.cfg = 0U |
#if W25Q_SWITCH_WIDTH == TRUE
WSPI_CFG_CMD_MODE_ONE_LINE,
#else
#if W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI1L
WSPI_CFG_CMD_MODE_ONE_LINE,
#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI2L
WSPI_CFG_CMD_MODE_TWO_LINES,
#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI4L
WSPI_CFG_CMD_MODE_FOUR_LINES,
#else
WSPI_CFG_CMD_MODE_EIGHT_LINES,
#endif
#endif
.addr = 0,
.alt = 0,
.dummy = 0
}

Definition at line 156 of file hal_flash_device.c.

156 {
157 .cmd = W25Q_CMD_WRITE_ENABLE,
158 .cfg = 0U |
159#if W25Q_SWITCH_WIDTH == TRUE
160 WSPI_CFG_CMD_MODE_ONE_LINE,
161#else
162#if W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI1L
163 WSPI_CFG_CMD_MODE_ONE_LINE,
164#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI2L
165 WSPI_CFG_CMD_MODE_TWO_LINES,
166#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI4L
167 WSPI_CFG_CMD_MODE_FOUR_LINES,
168#else
169 WSPI_CFG_CMD_MODE_EIGHT_LINES,
170#endif
171#endif
172 .addr = 0,
173 .alt = 0,
174 .dummy = 0
175};

◆ w25q_cmd_write_evconf

const wspi_command_t w25q_cmd_write_evconf
static
Initial value:
= {
.cmd = W25Q_CMD_WRITE_ENHANCED_V_CONF_REGISTER,
.cfg = 0U |
#if W25Q_SWITCH_WIDTH == TRUE
WSPI_CFG_CMD_MODE_ONE_LINE |
WSPI_CFG_DATA_MODE_ONE_LINE,
#else
#if W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI1L
WSPI_CFG_CMD_MODE_ONE_LINE |
WSPI_CFG_DATA_MODE_ONE_LINE,
#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI2L
WSPI_CFG_CMD_MODE_TWO_LINES |
WSPI_CFG_DATA_MODE_TWO_LINES,
#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI4L
WSPI_CFG_CMD_MODE_FOUR_LINES |
WSPI_CFG_DATA_MODE_FOUR_LINES,
#else
WSPI_CFG_CMD_MODE_EIGHT_LINES |
WSPI_CFG_DATA_MODE_EIGHT_LINES,
#endif
#endif
.addr = 0,
.alt = 0,
.dummy = 0
}

Definition at line 129 of file hal_flash_device.c.

129 {
130 .cmd = W25Q_CMD_WRITE_ENHANCED_V_CONF_REGISTER,
131 .cfg = 0U |
132#if W25Q_SWITCH_WIDTH == TRUE
133 WSPI_CFG_CMD_MODE_ONE_LINE |
134 WSPI_CFG_DATA_MODE_ONE_LINE,
135#else
136#if W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI1L
137 WSPI_CFG_CMD_MODE_ONE_LINE |
138 WSPI_CFG_DATA_MODE_ONE_LINE,
139#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI2L
140 WSPI_CFG_CMD_MODE_TWO_LINES |
141 WSPI_CFG_DATA_MODE_TWO_LINES,
142#elif W25Q_BUS_MODE == W25Q_BUS_MODE_WSPI4L
143 WSPI_CFG_CMD_MODE_FOUR_LINES |
144 WSPI_CFG_DATA_MODE_FOUR_LINES,
145#else
146 WSPI_CFG_CMD_MODE_EIGHT_LINES |
147 WSPI_CFG_DATA_MODE_EIGHT_LINES,
148#endif
149#endif
150 .addr = 0,
151 .alt = 0,
152 .dummy = 0
153};

◆ w25q_manufacturer_ids

const uint8_t w25q_manufacturer_ids[] = W25Q_SUPPORTED_MANUFACTURE_IDS
static

Definition at line 297 of file hal_flash_device.c.

Referenced by snor_device_init().

◆ w25q_memory_type_ids

const uint8_t w25q_memory_type_ids[] = W25Q_SUPPORTED_MEMORY_TYPE_IDS
static

Definition at line 298 of file hal_flash_device.c.

Referenced by snor_device_init().

Generated on Sat Sep 27 2025 00:10:10 for rusEFI by doxygen 1.9.8
