AemXSeriesEgt Class Reference

#include <AemXSeriesEgt.h>

Inheritance diagram for AemXSeriesEgt:

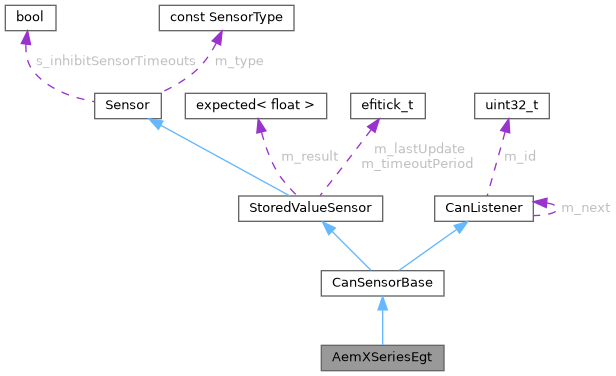

Collaboration diagram for AemXSeriesEgt:

Public Member Functions
	AemXSeriesEgt (uint8_t sensorIndex, SensorType type)
Public Member Functions inherited from CanSensorBase
	CanSensorBase (uint32_t eid, SensorType type, efidur_t timeout)
void	showInfo (const char *sensorName) const override
Public Member Functions inherited from StoredValueSensor
SensorResult	get () const final override
	StoredValueSensor (SensorType type, efidur_t timeoutNt)
void	invalidate ()
void	invalidate (UnexpectedCode why)
void	setValidValue (float value, efitick_t timestamp)
void	showInfo (const char *sensorName) const override
virtual void	setTimeout (int timeoutMs)
Public Member Functions inherited from Sensor
bool	Register ()
const char *	getSensorName () const
virtual bool	hasSensor () const
virtual float	getRaw () const
virtual bool	isRedundant () const
void	unregister ()
SensorType	type () const
Public Member Functions inherited from CanListener
	CanListener (uint32_t id)
CanListener *	processFrame (const size_t busIndex, const CANRxFrame &frame, efitick_t nowNt)
uint32_t	getId ()
void	setNext (CanListener *next)
virtual CanListener *	request ()
bool	hasNext () const
virtual bool	acceptFrame (const size_t busIndex, const CANRxFrame &frame) const

Protected Member Functions
void	decodeFrame (const CANRxFrame &frame, efitick_t nowNt) override
Protected Member Functions inherited from Sensor
	Sensor (SensorType type)

Additional Inherited Members
Static Public Member Functions inherited from Sensor
static void	showAllSensorInfo ()
static void	showInfo (SensorType type)
static void	resetRegistry ()
static const Sensor *	getSensorOfType (SensorType type)
static SensorResult	get (SensorType type)
static float	getOrZero (SensorType type)
static float	getRaw (SensorType type)
static bool	isRedundant (SensorType type)
static bool	hasSensor (SensorType type)
static void	setMockValue (SensorType type, float value, bool mockRedundant=false)
static void	setInvalidMockValue (SensorType type)
static void	resetMockValue (SensorType type)
static void	resetAllMocks ()
static void	inhibitTimeouts (bool inhibit)
static const char *	getSensorName (SensorType type)
Static Protected Attributes inherited from Sensor
static bool	s_inhibitSensorTimeouts = false

Detailed Description

Definition at line 5 of file AemXSeriesEgt.h.

Constructor & Destructor Documentation

AemXSeriesEgt()

AemXSeriesEgt::AemXSeriesEgt	(	uint8_t	sensorIndex,
		SensorType	type
	)

Definition at line 9 of file AemXSeriesEgt.cpp.

    : CanSensorBase(
        aem_egt_base + sensorIndex,
        type,
        MS2NT(3 * AEM_EGT_DEFAULT_PERIOD_MS)    // sensor transmits at 10hz, allow a frame to be missed
    )
{
    // nope
}

Member Function Documentation

decodeFrame()

void AemXSeriesEgt::decodeFrame ( const CANRxFrame &  frame, efitick_t  nowNt  )

overrideprotectedvirtual

Implements CanListener.

Definition at line 19 of file AemXSeriesEgt.cpp.

                                                                        {
    // No status flags, just a value
    uint16_t egt = SWAP_UINT16(frame.data16[0]);

    setValidValue((float)egt, nowNt);
}

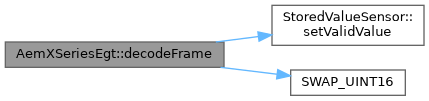

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• controllers/sensors/impl/AemXSeriesEgt.h
• controllers/sensors/impl/AemXSeriesEgt.cpp
