trigger_vw.cpp File Reference

Functions
void	setSkodaFavorit (TriggerWaveform *s)
void	setVwConfiguration (TriggerWaveform *s)

Function Documentation

setSkodaFavorit()

void setSkodaFavorit

(

TriggerWaveform *

s

)

I know Skoda was not owned by VAG back than but that's OK

Definition at line 12 of file trigger_vw.cpp.

                                         {
    s->initialize(FOUR_STROKE_CRANK_SENSOR, SyncEdge::Rise);

    s->addEvent360(133, TriggerValue::RISE, TriggerWheel::T_PRIMARY);
    s->addEvent360(177, TriggerValue::FALL, TriggerWheel::T_PRIMARY);

    s->addEvent360(180, TriggerValue::RISE, TriggerWheel::T_PRIMARY);
    s->addEvent360(183, TriggerValue::FALL, TriggerWheel::T_PRIMARY);

    s->addEvent360(313, TriggerValue::RISE, TriggerWheel::T_PRIMARY);
    s->addEvent360(360, TriggerValue::FALL, TriggerWheel::T_PRIMARY);

    s->tdcPosition = 180 + 47;
    s->setTriggerSynchronizationGap3(/*gapIndex*/0, 2, 4);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

Here is the call graph for this function:

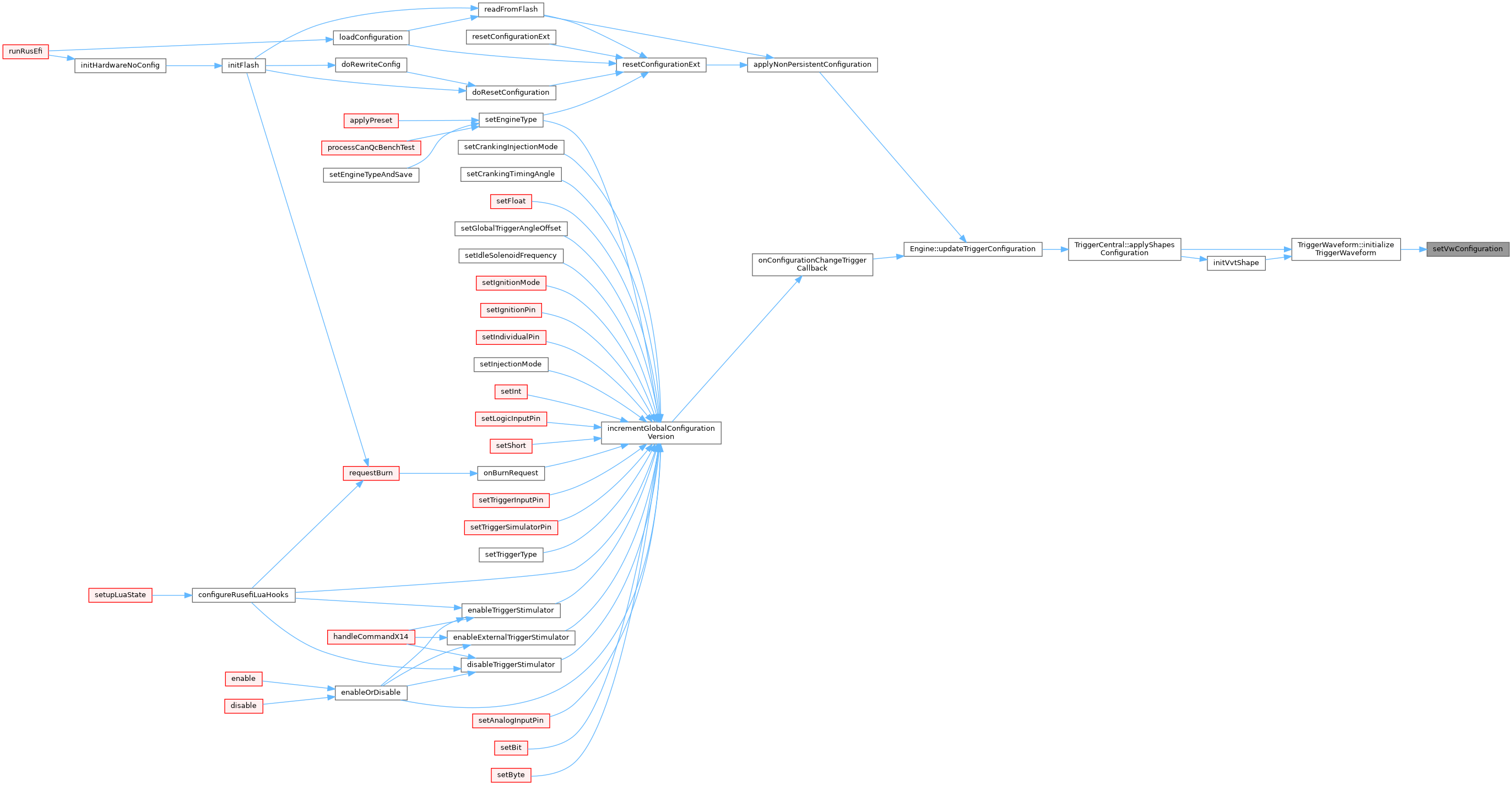

Here is the caller graph for this function:

setVwConfiguration()

void setVwConfiguration

(

TriggerWaveform *

s

)

Definition at line 28 of file trigger_vw.cpp.

                                            {
    s->initialize(FOUR_STROKE_CRANK_SENSOR, SyncEdge::RiseOnly);

    int totalTeethCount = 60;
    int skippedCount = 2;

    float engineCycle = FOUR_STROKE_ENGINE_CYCLE;
    float toothWidth = 0.5;

    addSkippedToothTriggerEvents(TriggerWheel::T_PRIMARY, s, 60, 2, toothWidth, 0, engineCycle,
            NO_LEFT_FILTER, 690);

    float angleDown = engineCycle / totalTeethCount * (totalTeethCount - skippedCount - 1 + (1 - toothWidth) );
    s->addEventClamped(0 + angleDown + 12, TriggerValue::RISE, TriggerWheel::T_PRIMARY, NO_LEFT_FILTER, NO_RIGHT_FILTER);
    s->addEventClamped(0 + engineCycle, TriggerValue::FALL, TriggerWheel::T_PRIMARY, NO_LEFT_FILTER, NO_RIGHT_FILTER);

    s->setTriggerSynchronizationGap2(1.6, 4);
    s->setSecondTriggerSynchronizationGap(1); // this gap is not required to synch on perfect signal but is needed to handle to reject cranking transition noise
    s->setThirdTriggerSynchronizationGap(1);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

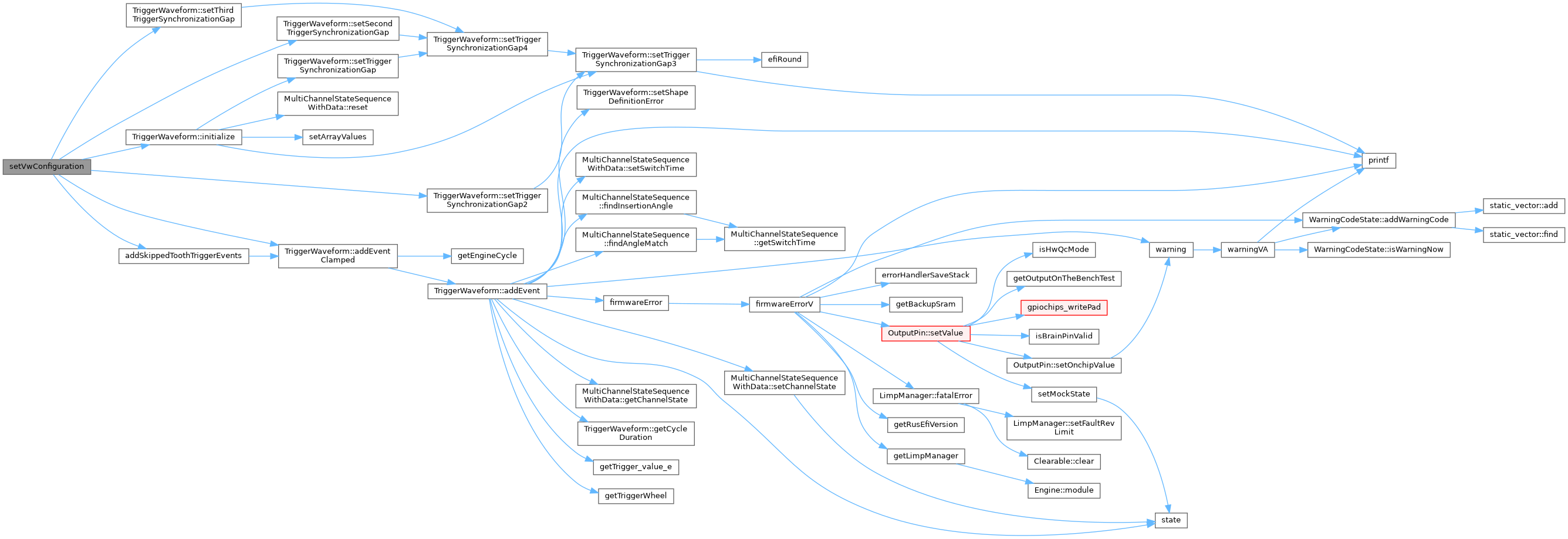

Here is the call graph for this function:

Here is the caller graph for this function:

Go to the source code of this file.
