trigger_gm.cpp File Reference

Detailed Description

Date

Mar 28, 2014

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file trigger_gm.cpp.

Functions
static float	addTooth (float offset, TriggerWaveform *s)
void	configureGm60_2_2_2 (TriggerWaveform *s)
void	configureGmTriggerWaveform (TriggerWaveform *s)
static int	gm_tooth_pair (float startAngle, bool isShortLong, TriggerWaveform *s, float shortToothWidth)
static void	initGmLS24 (TriggerWaveform *s, float shortToothWidth)
void	initGmLS24_5deg (TriggerWaveform *s)
void	initGmLS24_3deg (TriggerWaveform *s)

Function Documentation

addTooth()

static float addTooth ( float  offset, TriggerWaveform *  s  )

static

Definition at line 14 of file trigger_gm.cpp.

                                                        {
    s->addToothRiseFall(offset + GM_60_W / 2, GM_60_W / 2, TriggerWheel::T_SECONDARY);
    return offset + GM_60_W;
}

Referenced by configureGm60_2_2_2().

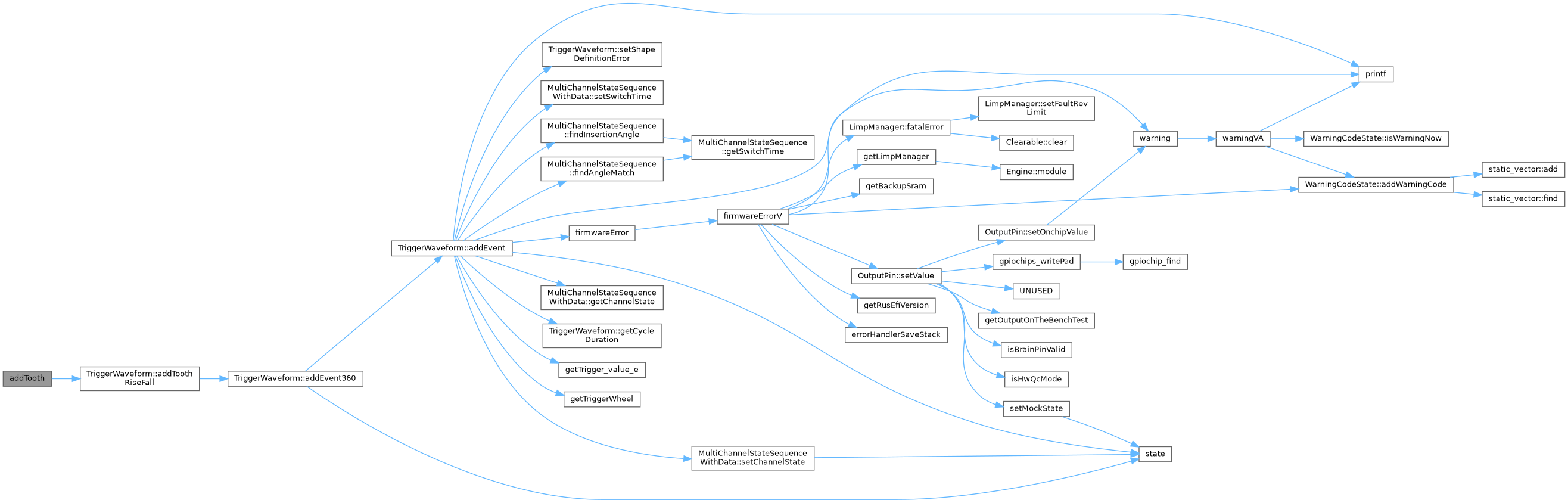

Here is the call graph for this function:

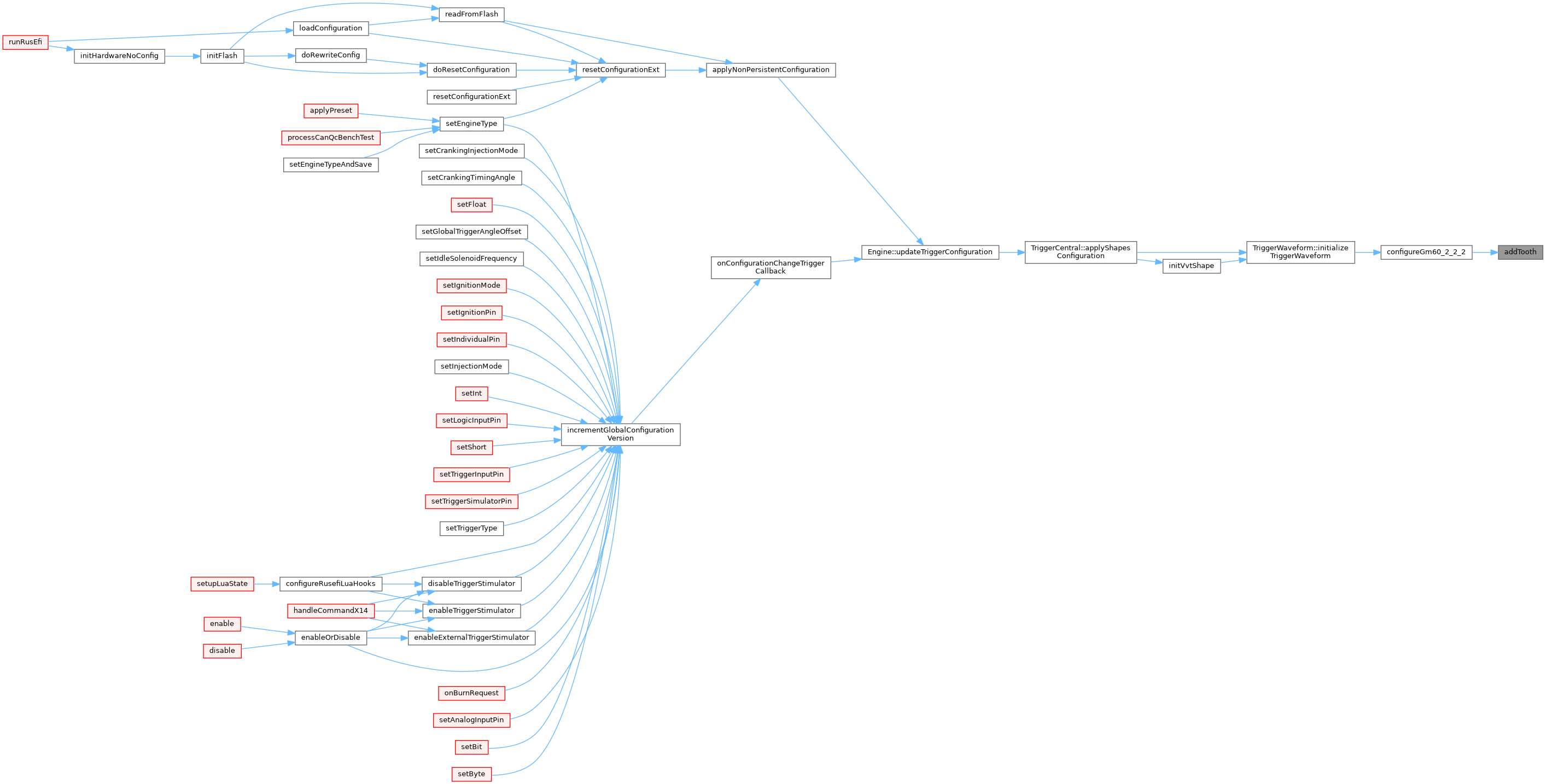

Here is the caller graph for this function:

configureGm60_2_2_2()

void configureGm60_2_2_2

(

TriggerWaveform *

s

)

https://github.com/rusefi/rusefi/issues/2264 GM/Daewoo Distributor on the F8CV

Definition at line 23 of file trigger_gm.cpp.

                                             {
    s->initialize(FOUR_STROKE_CAM_SENSOR, SyncEdge::RiseOnly);
    s->isSynchronizationNeeded = false;
    s->isSecondWheelCam = true;

    int offset = 1;

    for (int i=0;i<12;i++) {
        offset = addTooth(offset, s);
    }

    offset += 2 * GM_60_W;

    for (int i=0;i<18;i++) {
        offset = addTooth(offset, s);
    }

    offset += 2 * GM_60_W;

    for (int i=0;i<18;i++) {
        offset = addTooth(offset, s);
    }

    offset += 2 * GM_60_W;

    for (int i=0;i<5;i++) {
        offset = addTooth(offset, s);
    }

    s->addEvent360(360 - GM_60_W, TriggerValue::RISE);

    offset = addTooth(offset, s);

    s->addEvent360(360, TriggerValue::FALL);

}

Referenced by TriggerWaveform::initializeTriggerWaveform().

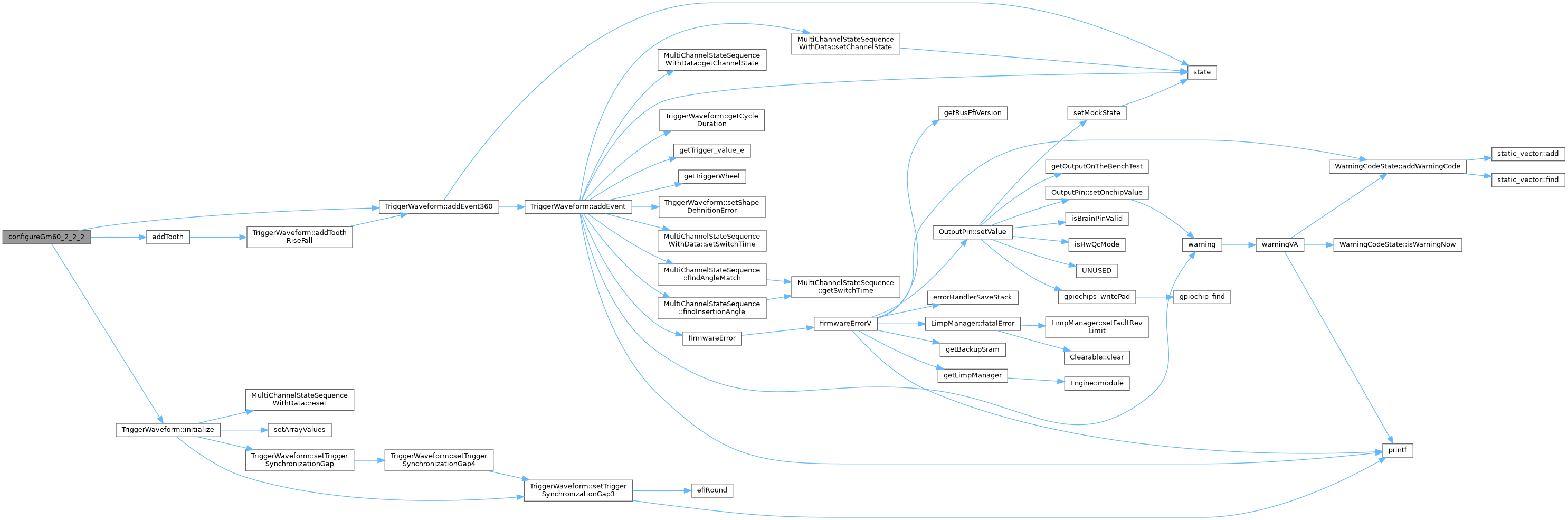

Here is the call graph for this function:

Here is the caller graph for this function:

configureGmTriggerWaveform()

void configureGmTriggerWaveform

(

TriggerWaveform *

s

)

Definition at line 60 of file trigger_gm.cpp.

                                                    {
    s->initialize(FOUR_STROKE_CRANK_SENSOR, SyncEdge::RiseOnly);

    float w = 5;

    s->addToothRiseFall(60, w);

    s->addToothRiseFall(120, w);

    s->addToothRiseFall(180, w);

    s->addToothRiseFall(240, w);

    s->addToothRiseFall(300, w);

    s->addToothRiseFall(350, w);

    s->addToothRiseFall(360, w);

    s->setTriggerSynchronizationGap(6);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

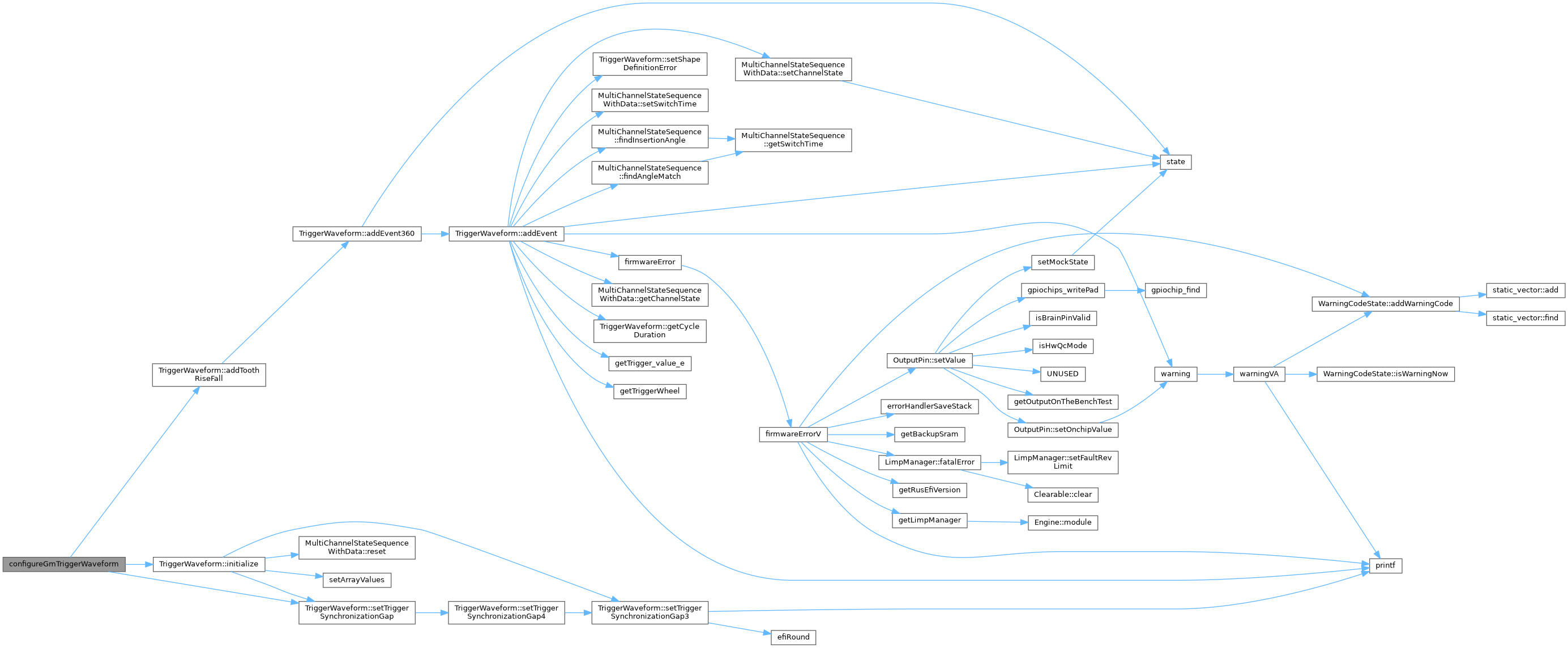

Here is the call graph for this function:

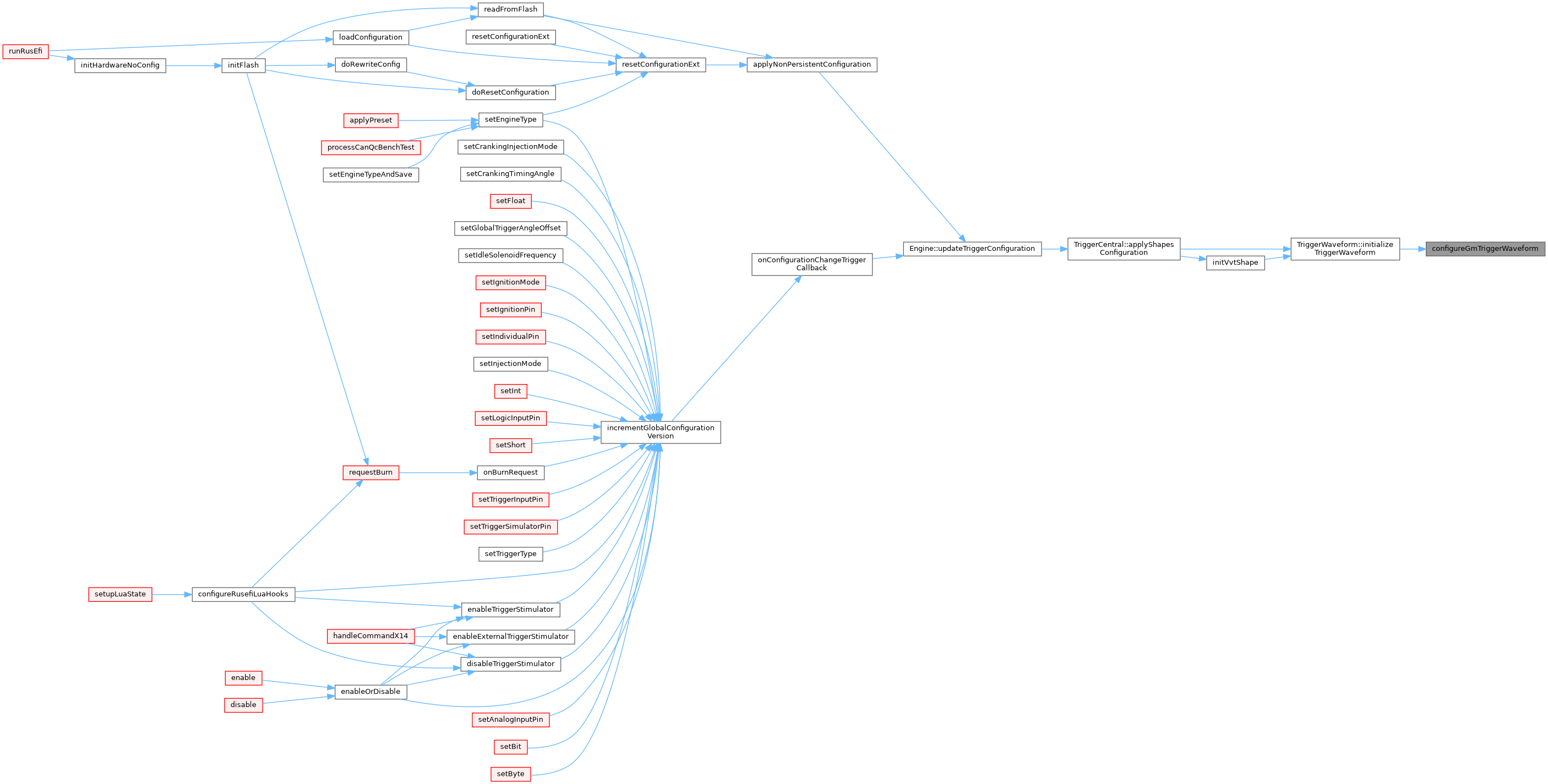

Here is the caller graph for this function:

gm_tooth_pair()

static int gm_tooth_pair ( float  startAngle, bool  isShortLong, TriggerWaveform *  s, float  shortToothWidth  )

static

Definition at line 82 of file trigger_gm.cpp.

{
    int window = (isShortLong ? shortToothWidth : (15 - shortToothWidth));
    int end = startAngle + 15;

    s->addEvent360(startAngle + window, TriggerValue::RISE);
    s->addEvent360(end, TriggerValue::FALL);

    return end;
}

Referenced by initGmLS24().

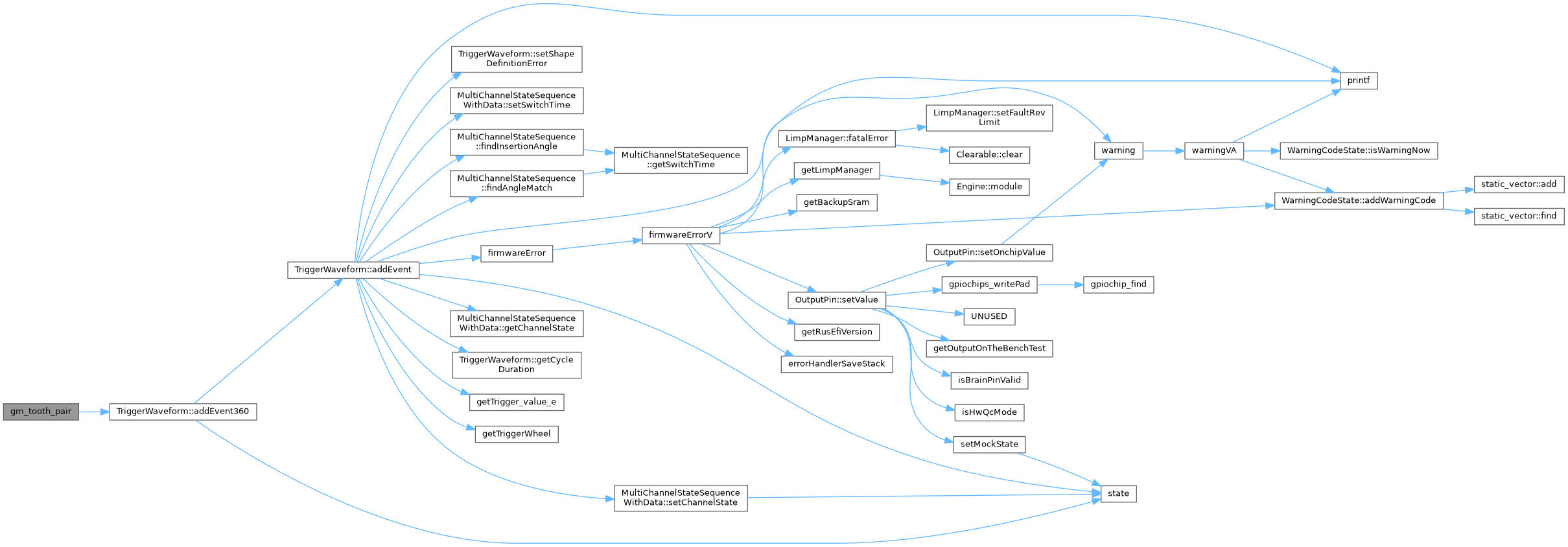

Here is the call graph for this function:

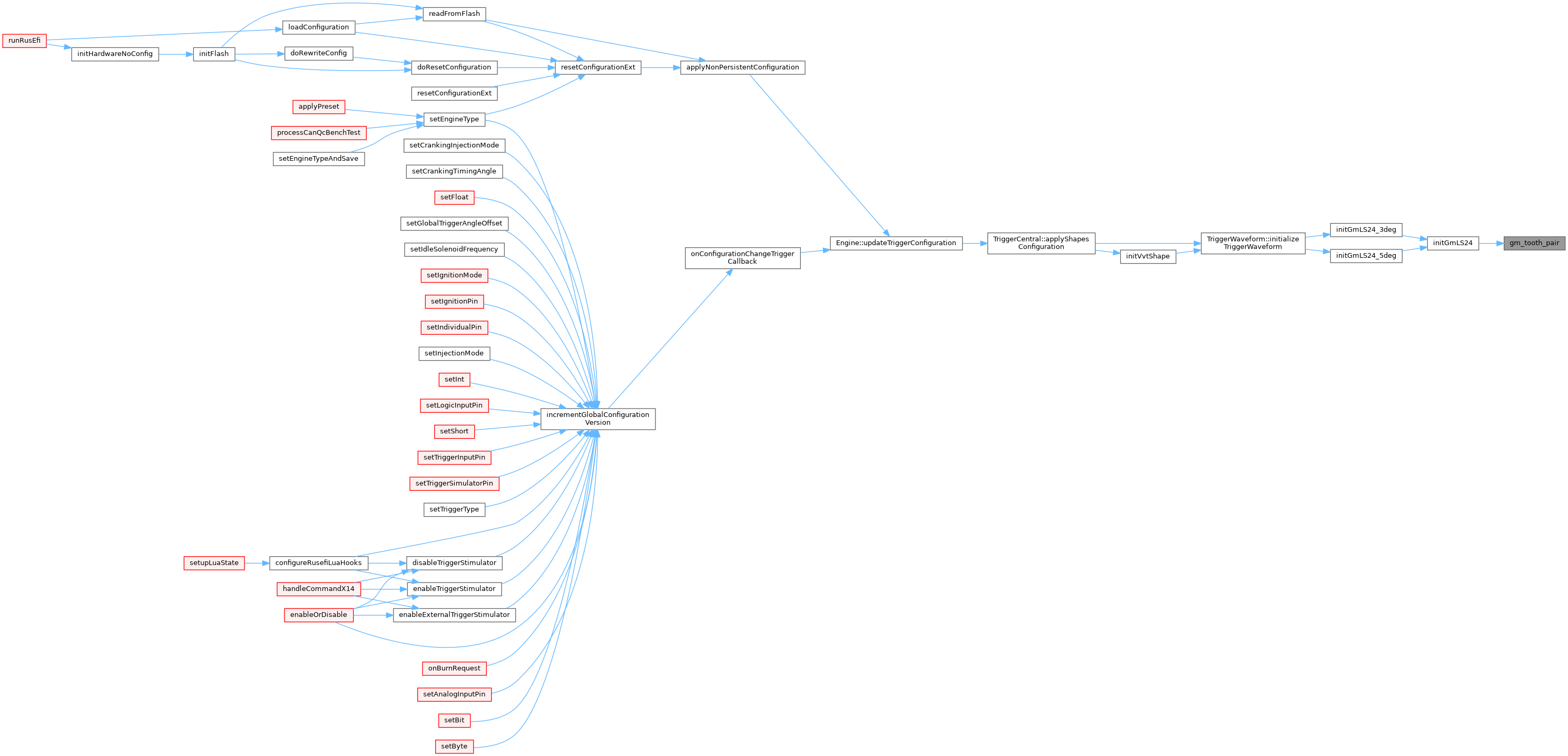

Here is the caller graph for this function:

initGmLS24()

static void initGmLS24 ( TriggerWaveform *  s, float  shortToothWidth  )

static

TT_GM_24x_5 and TT_GM_24x_3 https://www.mediafire.com/?40mfgeoe4ctti http://www.ls1gto.com/forums/archive/index.php/t-190549.htm http://www.ls2.com/forums/showthread.php/834483-LS-Timing-Reluctor-Wheels-Explained

based on data in https://rusefi.com/forum/viewtopic.php?f=3&t=936&p=30303#p30285

Definition at line 102 of file trigger_gm.cpp.

                                                                  {
    s->initialize(FOUR_STROKE_CRANK_SENSOR, SyncEdge::Rise);

    /*
     * Okay, here's how this magic works:
     * The GM 24x crank wheel has 48 edges.  There is
     * a falling edge every 15 degrees (1/24 revolution).
     * After every falling edge, a rising edge occurs either
     * 5 or 10 (= 15 - 5) degrees later.  The code 0x0A33BE
     * encodes the pattern of which type of gap occurs in the
     * pattern.  Starting from the LSB, each bit left is the
     * next gap in sequence as the crank turns.  A 0 indicates
     * long-short (late rising edge), while a 1 indicates
     * short-long (early rising edge).
     *
     * The first few bits read are 0xE (LSB first!) = 0 - 1 - 1 - 1, so the pattern
     * looks like this:
     * ___     _   ___   ___     _
     *    |___| |_|   |_|   |___| |_ etc
     *
     *    |  0  |  1  |  1  |  0  |
     *
     *     ___ = 10 degrees, _ = 5 deg
     *
     * There is a falling edge at angle=0=720, and this is position
     * is #1 (and #6) TDC.  If there's a falling edge on the cam
     * sensor, it's #1 end compression stroke (fire this plug!)
     * and #6 end exhaust stroke.  If rising, it's exhaust #1,
     * compression #6.
     */

    uint32_t code = 0x0A33BE;

    int angle = 0;

    for(int i = 0; i < 24; i++)
    {
        bool bit = code & 0x000001;
        code = code >> 1;

        angle = gm_tooth_pair(angle, bit, s, shortToothWidth);
    }
}

Referenced by initGmLS24_3deg(), and initGmLS24_5deg().

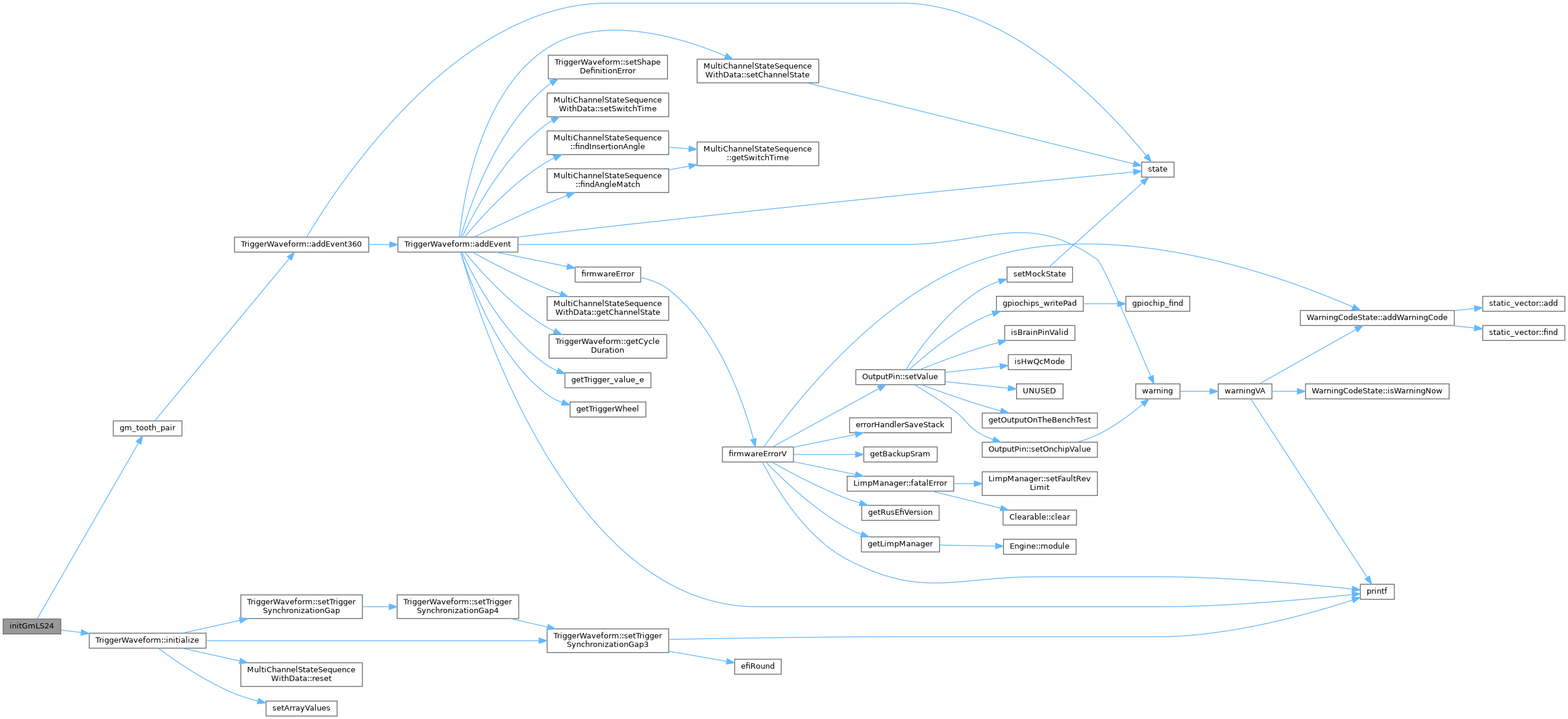

Here is the call graph for this function:

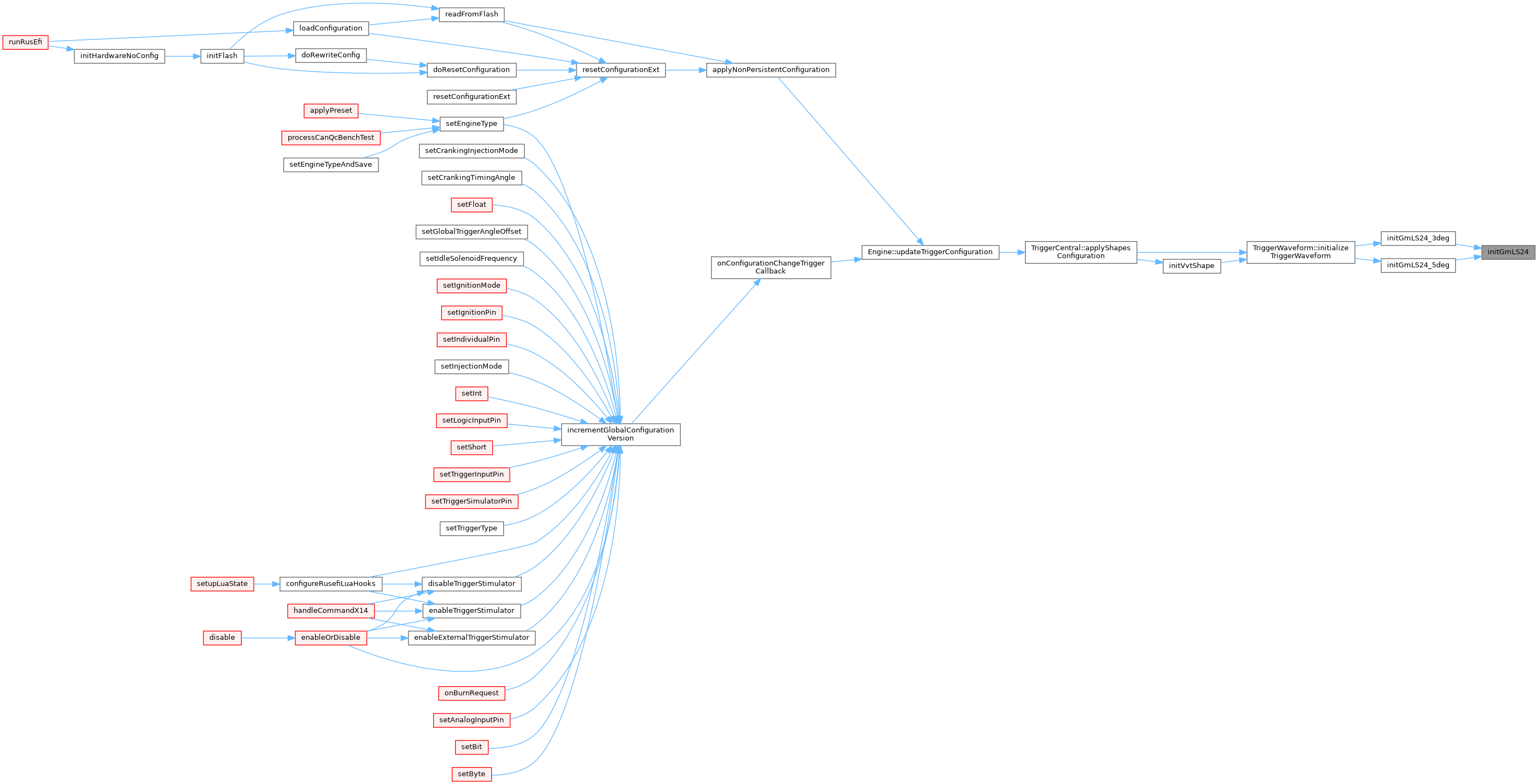

Here is the caller graph for this function:

initGmLS24_3deg()

void initGmLS24_3deg

(

TriggerWaveform *

s

)

Definition at line 159 of file trigger_gm.cpp.

                                         {
    initGmLS24(s, 3);

    // This is tooth #20, at 312 degrees ATDC #1
    s->setTriggerSynchronizationGap(4.0f);
    s->setSecondTriggerSynchronizationGap(0.25f);
    s->setThirdTriggerSynchronizationGap(4.0f);

    s->tdcPosition = 48;
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

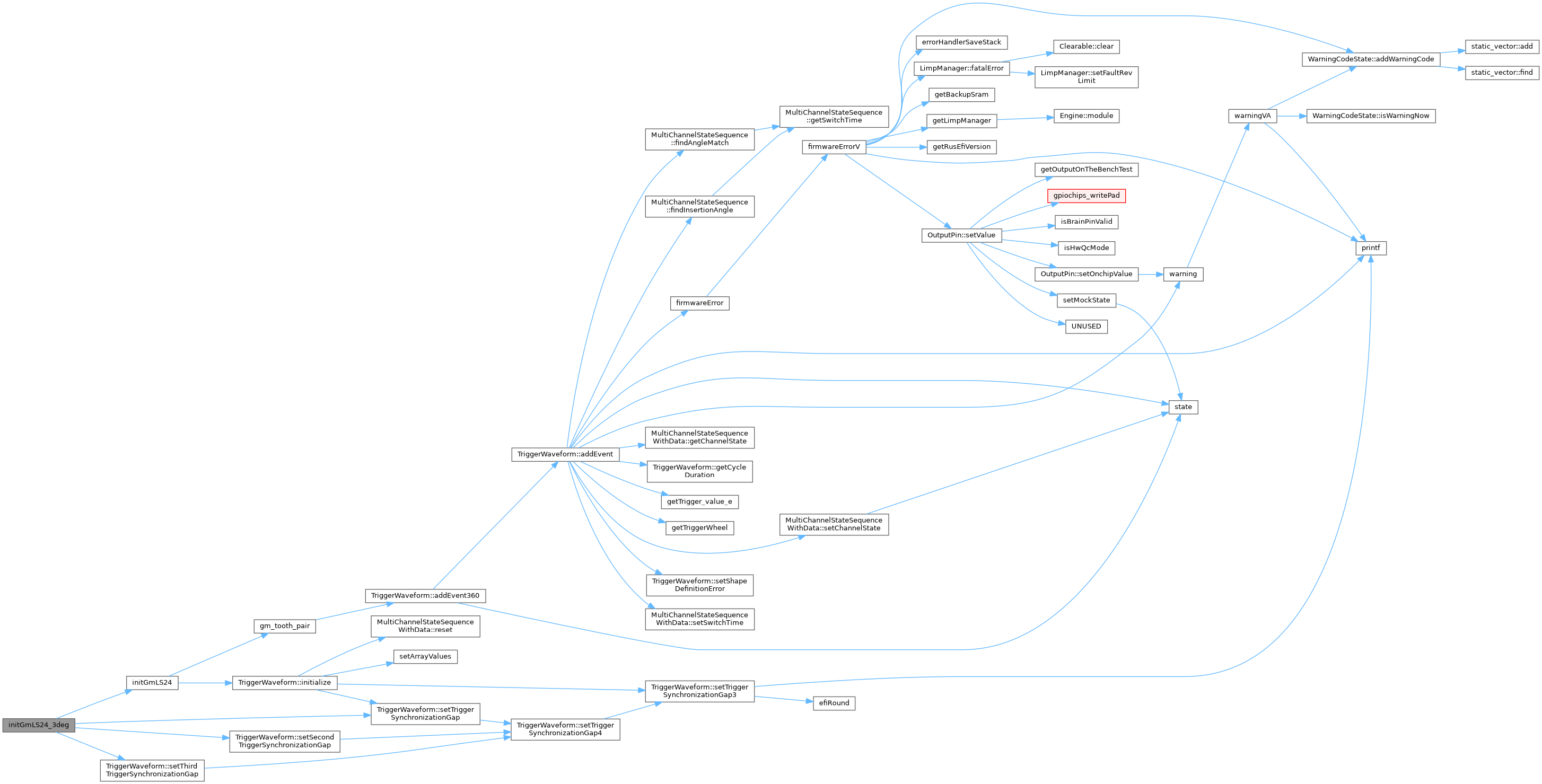

Here is the call graph for this function:

Here is the caller graph for this function:

initGmLS24_5deg()

void initGmLS24_5deg

(

TriggerWaveform *

s

)

Definition at line 147 of file trigger_gm.cpp.

                                         {
    initGmLS24(s, 5);

    // This is tooth #20, at 310 degrees ATDC #1
    s->setTriggerSynchronizationGap(2.0f);
    s->setSecondTriggerSynchronizationGap(0.5f);
    s->setThirdTriggerSynchronizationGap(2.0f);

    s->tdcPosition = 50;
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

Here is the call graph for this function:

Here is the caller graph for this function:
