scheduling_s Struct Reference

#include <scheduler.h>

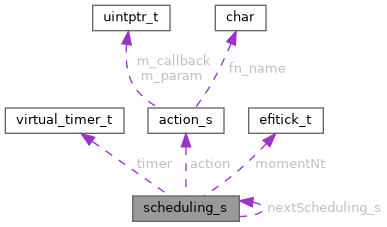

Collaboration diagram for scheduling_s:

Public Member Functions
efitick_t	getMomentNt () const
efitick_t	getMomentUs () const
void	setMomentNt (efitick_t p_moment)

Data Fields
virtual_timer_t	timer
scheduling_s *	nextScheduling_s = nullptr
action_s	action

Private Attributes
volatile efitick_t	momentNt = 0

Detailed Description

This structure holds information about an event scheduled in the future: when to execute what callback with what parameters

Definition at line 269 of file scheduler.h.

Member Function Documentation

getMomentNt()

efitick_t scheduling_s::getMomentNt ( ) const

inline

Definition at line 270 of file scheduler.h.

                                              {
    return momentNt;
  }

Referenced by EventQueue::assertListIsSorted(), EventQueue::executeOne(), EventQueue::getNextEventTime(), EventQueue::insertTask(), and HpfpController::pinTurnOn().

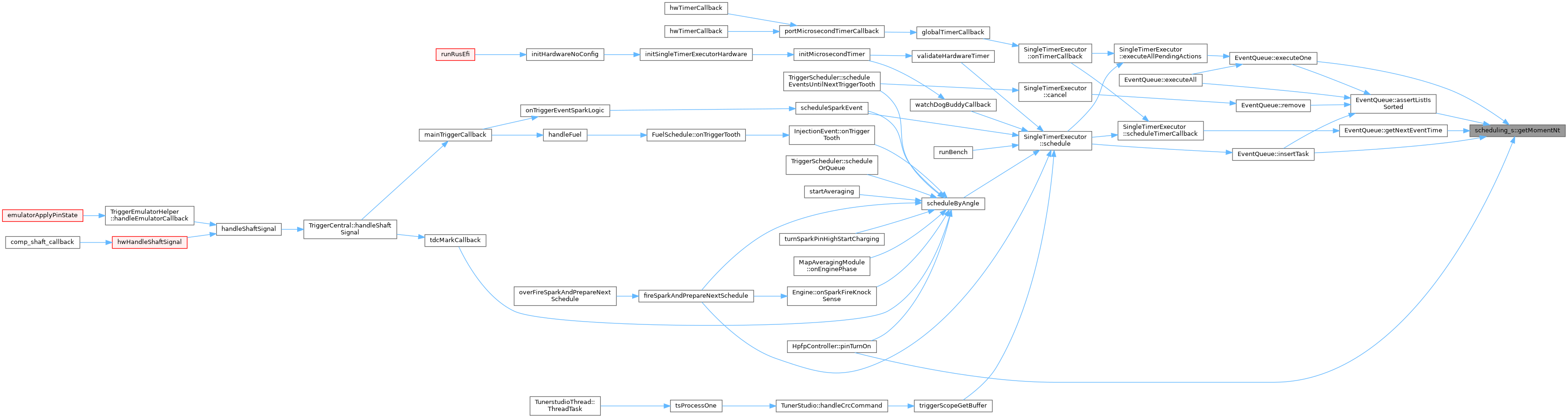

Here is the caller graph for this function:

getMomentUs()

efitick_t scheduling_s::getMomentUs ( ) const

inline

Definition at line 279 of file scheduler.h.

                                                {
        return NT2US(momentNt);
    }

setMomentNt()

void scheduling_s::setMomentNt ( efitick_t  p_moment )

inline

Definition at line 284 of file scheduler.h.

                                       {
    momentNt = p_moment;
  }

Referenced by EventQueue::clear(), and EventQueue::insertTask().

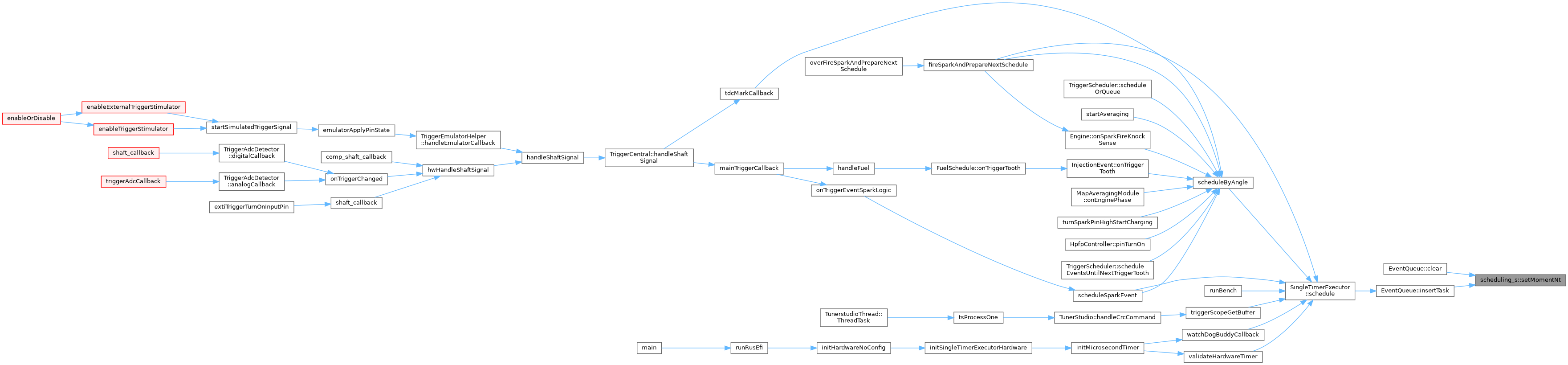

Here is the caller graph for this function:

Field Documentation

action

action_s scheduling_s::action

Definition at line 296 of file scheduler.h.

Referenced by EventQueue::executeOne(), EventQueue::insertTask(), and EventQueue::remove().

momentNt

volatile efitick_t scheduling_s::momentNt = 0

private

timestamp represented as 64-bit value of ticks since MCU start

Definition at line 301 of file scheduler.h.

Referenced by getMomentNt(), getMomentUs(), and setMomentNt().

nextScheduling_s

scheduling_s* scheduling_s::nextScheduling_s = nullptr

Definition at line 294 of file scheduler.h.

Referenced by EventQueue::assertListIsSorted(), EventQueue::clear(), EventQueue::executeOne(), EventQueue::getFreeScheduling(), EventQueue::insertTask(), EventQueue::remove(), and EventQueue::tryReturnScheduling().

timer

virtual_timer_t scheduling_s::timer

Definition at line 290 of file scheduler.h.

---

The documentation for this struct was generated from the following file:

• controllers/system/timer/scheduler.h
