knock_controller_s Struct Reference

#include <knock_controller_generated.h>

Inheritance diagram for knock_controller_s:

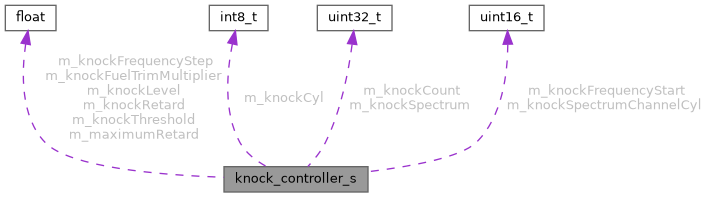

Collaboration diagram for knock_controller_s:

Data Fields
float	m_knockLevel = (float)0
int8_t	m_knockCyl [MAX_CYLINDER_COUNT] = {}
angle_t	m_knockRetard = (angle_t)0
float	m_knockThreshold = (float)0
uint32_t	m_knockCount = (uint32_t)0
float	m_maximumRetard = (float)0
uint32_t	m_knockSpectrum [16] = {}
uint16_t	m_knockSpectrumChannelCyl = (uint16_t)0
uint16_t	m_knockFrequencyStart = (uint16_t)0
float	m_knockFrequencyStep = (float)0
float	m_knockFuelTrimMultiplier = (float)0

Detailed Description

Definition at line 7 of file knock_controller_generated.h.

Field Documentation

m_knockCount

uint32_t knock_controller_s::m_knockCount = (uint32_t)0

@GAUGE_NAME_KNOCK_COUNTER@ offset 24

Definition at line 35 of file knock_controller_generated.h.

Referenced by KnockControllerBase::getKnockCount(), and KnockControllerBase::onKnockSenseCompleted().

m_knockCyl

int8_t knock_controller_s::m_knockCyl[MAX_CYLINDER_COUNT] = {}

Knock: Cyl units: dBv offset 4

Definition at line 19 of file knock_controller_generated.h.

{};

Referenced by KnockControllerBase::onKnockSenseCompleted().

m_knockFrequencyStart

uint16_t knock_controller_s::m_knockFrequencyStart = (uint16_t)0

Knock: Start Freq units: Hz offset 98

Definition at line 58 of file knock_controller_generated.h.

m_knockFrequencyStep

float knock_controller_s::m_knockFrequencyStep = (float)0

Knock: Step Freq units: Hz offset 100

Definition at line 64 of file knock_controller_generated.h.

m_knockFuelTrimMultiplier

float knock_controller_s::m_knockFuelTrimMultiplier = (float)0

Knock: Fuel trim when knock units: multiplier offset 104

Definition at line 70 of file knock_controller_generated.h.

Referenced by KnockControllerBase::getFuelTrimMultiplier(), KnockControllerBase::onFastCallback(), and KnockControllerBase::onKnockSenseCompleted().

m_knockLevel

float knock_controller_s::m_knockLevel = (float)0

@GAUGE_NAME_KNOCK_LEVEL@ units: Volts offset 0

Definition at line 13 of file knock_controller_generated.h.

Referenced by KnockControllerBase::onKnockSenseCompleted().

m_knockRetard

angle_t knock_controller_s::m_knockRetard = (angle_t)0

@GAUGE_NAME_KNOCK_RETARD@ units: deg offset 16

Definition at line 25 of file knock_controller_generated.h.

Referenced by KnockControllerBase::getKnockRetard(), KnockControllerBase::onFastCallback(), and KnockControllerBase::onKnockSenseCompleted().

m_knockSpectrum

uint32_t knock_controller_s::m_knockSpectrum[16] = {}

Knock: SpectrumData units: compressed data offset 32

Definition at line 46 of file knock_controller_generated.h.

{};

m_knockSpectrumChannelCyl

uint16_t knock_controller_s::m_knockSpectrumChannelCyl = (uint16_t)0

Knock: ChannelAndCylNumber units: compressed N + N offset 96

Definition at line 52 of file knock_controller_generated.h.

m_knockThreshold

float knock_controller_s::m_knockThreshold = (float)0

Knock: Threshold offset 20

Definition at line 30 of file knock_controller_generated.h.

Referenced by KnockControllerBase::KnockControllerBase(), KnockControllerBase::onFastCallback(), and KnockControllerBase::onKnockSenseCompleted().

m_maximumRetard

float knock_controller_s::m_maximumRetard = (float)0

Knock: Max retard offset 28

Definition at line 40 of file knock_controller_generated.h.

Referenced by KnockControllerBase::onFastCallback(), and KnockControllerBase::onKnockSenseCompleted().

---

The documentation for this struct was generated from the following file:

• live_data_generated/knock_controller_generated.h
