injector_model_s Struct Reference

#include <injector_model_generated.h>

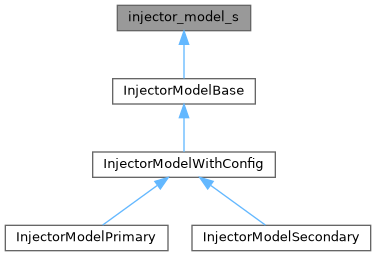

Inheritance diagram for injector_model_s:

Collaboration diagram for injector_model_s:

Data Fields
float	m_deadtime = (float)0
float	pressureDelta = (float)0
float	pressureRatio = (float)0
float	pressureCorrectionReference = (float)0

Detailed Description

Definition at line 7 of file injector_model_generated.h.

Field Documentation

m_deadtime

float injector_model_s::m_deadtime = (float)0

@GAUGE_NAME_INJECTOR_LAG@ units: ms offset 0

Definition at line 13 of file injector_model_generated.h.

Referenced by InjectorModelBase::getInjectionDuration(), InjectorModelWithConfig::getInjectionDuration(), and InjectorModelBase::prepare().

pressureCorrectionReference

float injector_model_s::pressureCorrectionReference = (float)0

@GAUGE_NAME_FUEL_CORRECTION_REFERENCE_PRESSURE@ units: kPa offset 12

Definition at line 30 of file injector_model_generated.h.

Referenced by InjectorModelWithConfig::getDeadtime(), and InjectorModelWithConfig::updateState().

pressureDelta

float injector_model_s::pressureDelta = (float)0

Fuel: Injector pressure delta units: kPa offset 4

Definition at line 19 of file injector_model_generated.h.

Referenced by InjectorModelWithConfig::getInjectorFlowRatio().

pressureRatio

float injector_model_s::pressureRatio = (float)0

Fuel: Injector pressure ratio offset 8

Definition at line 24 of file injector_model_generated.h.

Referenced by InjectorModelWithConfig::getInjectorFlowRatio().

---

The documentation for this struct was generated from the following file:

• live_data_generated/injector_model_generated.h
