serial_hw.h File Reference

Detailed Description

SERIAL bus low level code.

Date

Apr 17, 2020

Author

Konstantin Smola, (c) 2020

Definition in file serial_hw.h.

Functions
void	initAuxSerial (void)
void	stopAuxSerialPins ()
void	startAuxSerialPins ()
void	enableAuxSerial ()

Function Documentation

enableAuxSerial()

void enableAuxSerial

(

)

Definition at line 35 of file serial_hw.cpp.

                       {
    uartCfg.speed = engineConfiguration->auxSerialSpeed;
    sdStart(AUX_SERIAL_DEVICE, &uartCfg);

    efiPrintf("AUX Serial started");
}

Referenced by startAuxSerialPins().

Here is the caller graph for this function:

initAuxSerial()

void initAuxSerial

(

void

)

Definition at line 56 of file serial_hw.cpp.

                         {
    addConsoleAction("auxinfo", auxInfo);

    isSerialRXEnabled = isBrainPinValid(engineConfiguration->auxSerialRxPin);
    isSerialTXEnabled = isBrainPinValid(engineConfiguration->auxSerialTxPin);

    isSerialEnabled =
        isSerialRXEnabled || // we need at least one pin set
        isSerialTXEnabled;

    // exit if no pin is configured
    if (!isSerialEnabled)
        return;

    // Validate pins
    if (isSerialTXEnabled && !isValidSerialTxPin(engineConfiguration->auxSerialTxPin)) {
        criticalError("unexpected aux TX pin");
        return;
    }

    if (isSerialRXEnabled && !isValidSerialRxPin(engineConfiguration->auxSerialRxPin)) {
        criticalError("unexpected aux RX pin");
        return;
    }

    startAuxSerialPins();

    if (isSerialRXEnabled)
        serialRead.start();
}

Referenced by initHardware().

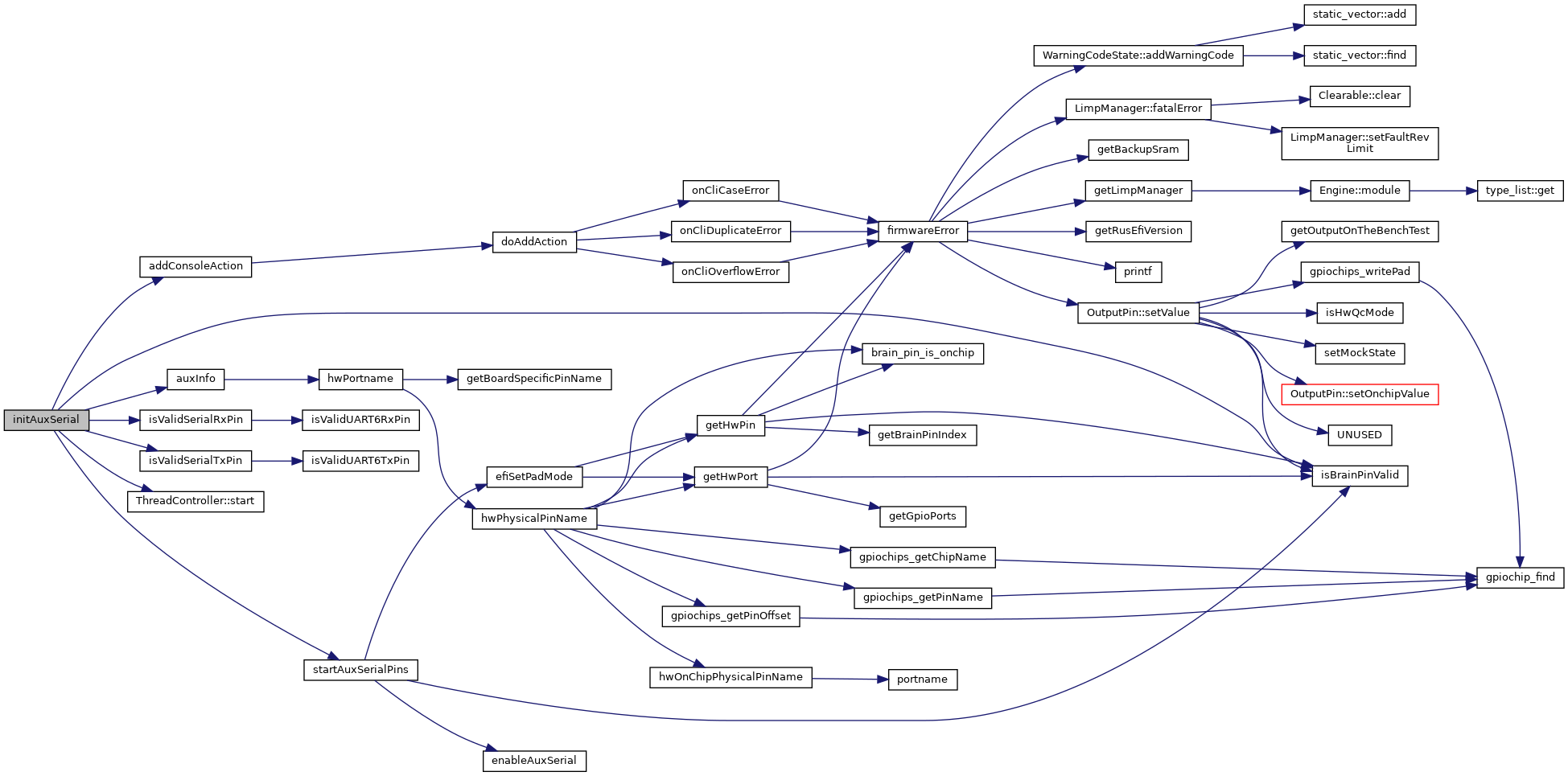

Here is the call graph for this function:

Here is the caller graph for this function:

startAuxSerialPins()

void startAuxSerialPins

(

)

Definition at line 47 of file serial_hw.cpp.

                          {
    if (isBrainPinValid(engineConfiguration->auxSerialTxPin))
        efiSetPadMode("AuxSerial TX", engineConfiguration->auxSerialTxPin, PAL_MODE_ALTERNATE(8));
    if (isBrainPinValid(engineConfiguration->auxSerialRxPin))
        efiSetPadMode("AuxSerial RX", engineConfiguration->auxSerialRxPin, PAL_MODE_ALTERNATE(8));

    enableAuxSerial();
}

Referenced by applyNewHardwareSettings(), and initAuxSerial().

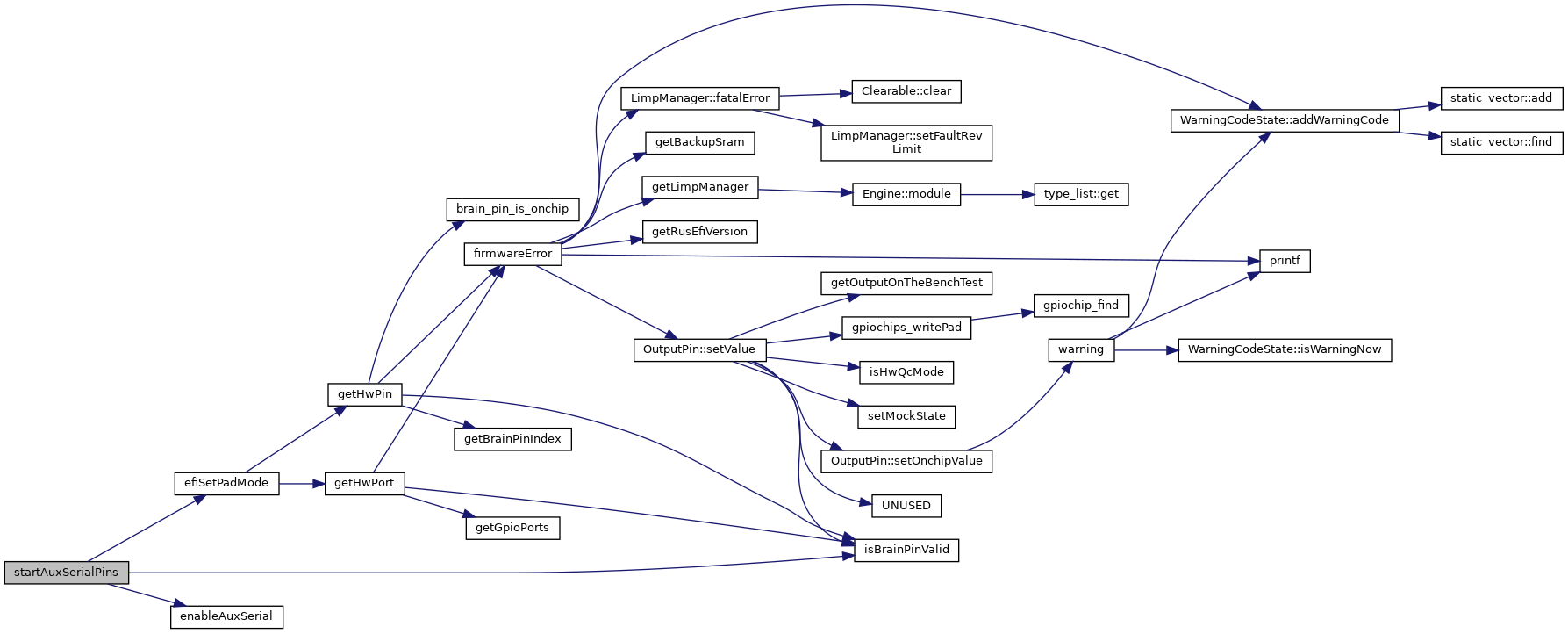

Here is the call graph for this function:

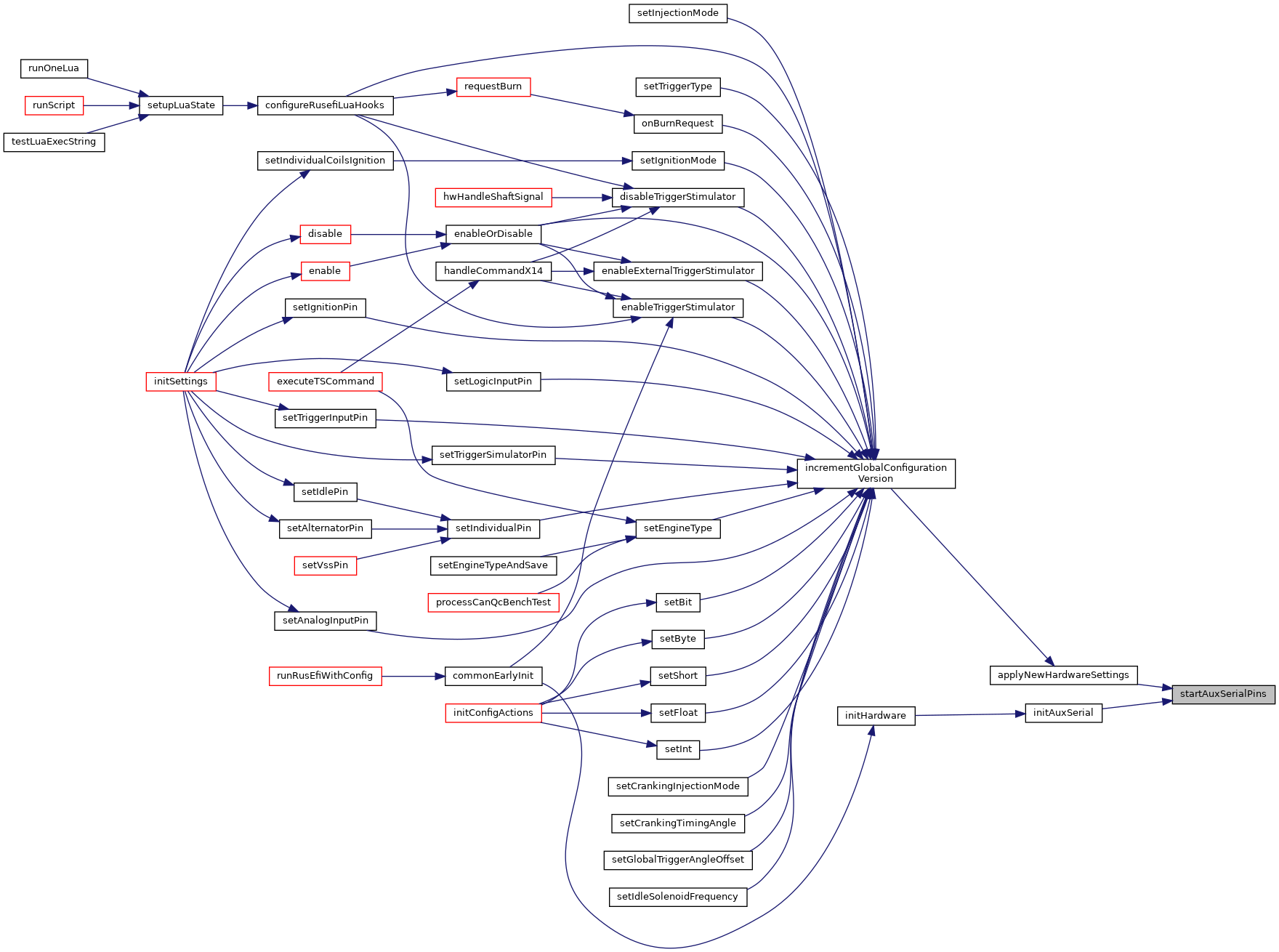

Here is the caller graph for this function:

stopAuxSerialPins()

void stopAuxSerialPins

(

)

Definition at line 42 of file serial_hw.cpp.

                         {
    efiSetPadUnused(activeConfiguration.auxSerialTxPin);
    efiSetPadUnused(activeConfiguration.auxSerialRxPin);
}

Referenced by applyNewHardwareSettings().

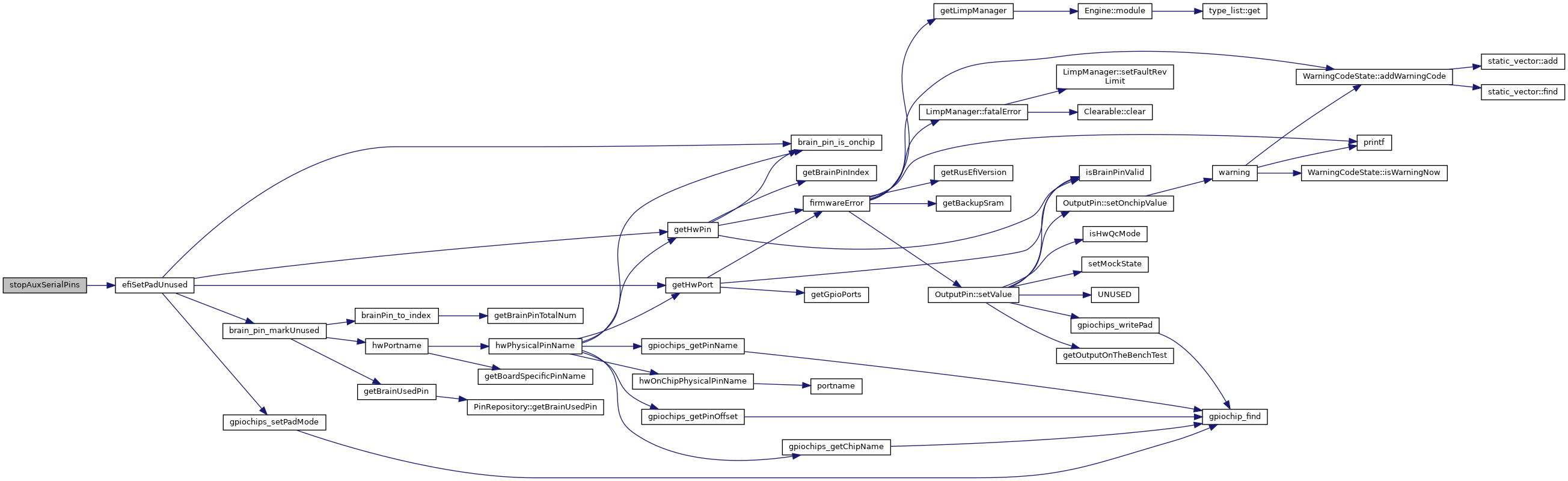

Here is the call graph for this function:

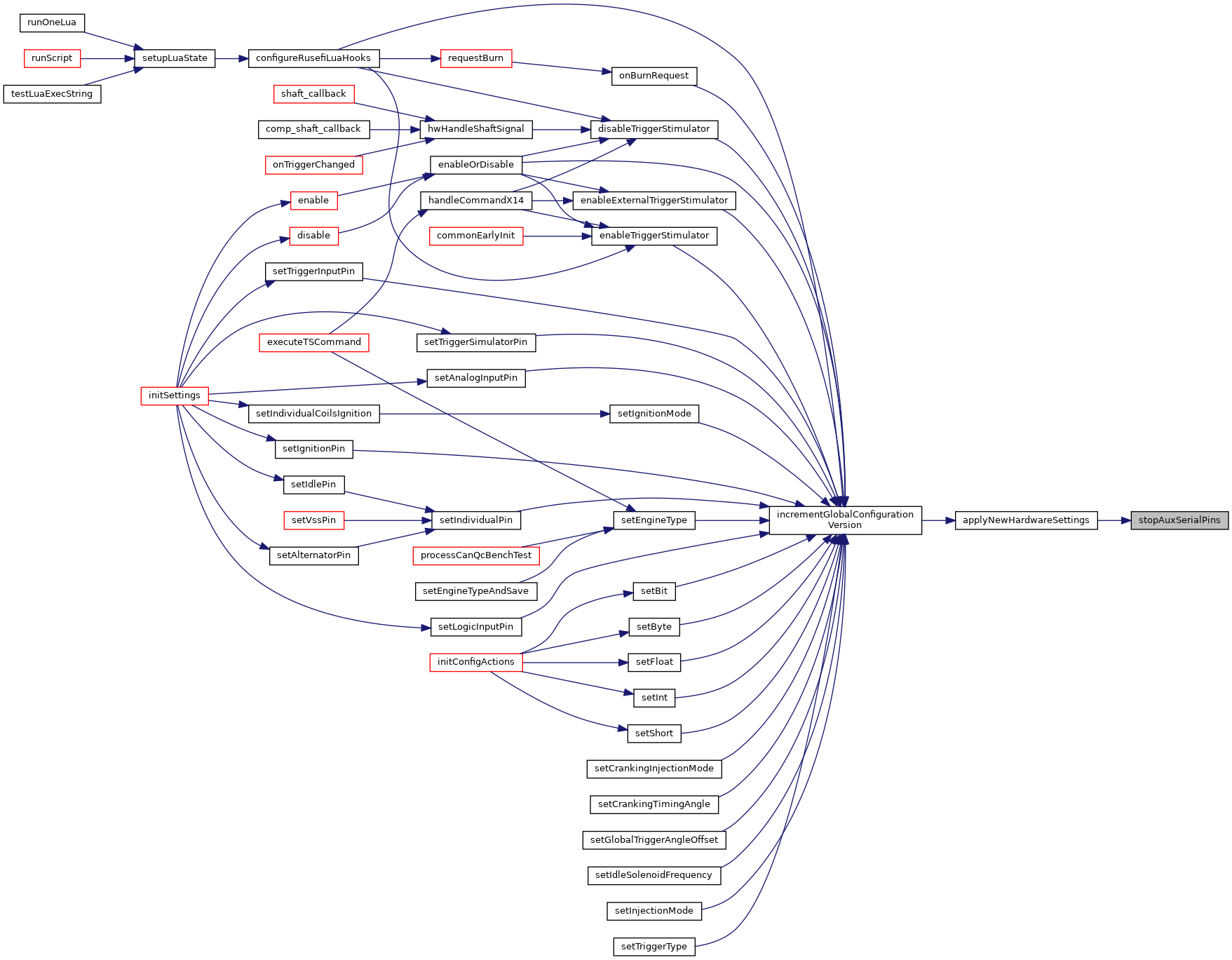

Here is the caller graph for this function:

Go to the source code of this file.
