mercedes.h File Reference

Functions
void	setHellenMercedes128_4_cyl ()
void	setHellenMercedes128_6_cyl ()
void	setHellenMercedes128_8_cyl ()

Function Documentation

setHellenMercedes128_4_cyl()

void setHellenMercedes128_4_cyl

(

)

Definition at line 14 of file mercedes.cpp.

                                  {
    setMercedesM111EngineConfiguration();
#if HW_HELLEN
    engineConfiguration->injectionPins[0] = Gpio::H144_LS_7;
    engineConfiguration->injectionPins[1] = H176_LS_6;
    engineConfiguration->injectionPins[2] = H176_LS_8;
    engineConfiguration->injectionPins[3] = H176_LS_5;
    engineConfiguration->injectionPins[4] = Gpio::Unassigned;
    engineConfiguration->injectionPins[5] = Gpio::Unassigned;
    engineConfiguration->injectionPins[6] = Gpio::Unassigned;
    engineConfiguration->injectionPins[7] = Gpio::Unassigned;
#endif // HW_HELLEN
}

Referenced by applyEngineType().

Here is the call graph for this function:

Here is the caller graph for this function:

setHellenMercedes128_6_cyl()

void setHellenMercedes128_6_cyl

(

)

Definition at line 29 of file mercedes.cpp.

                                  {
    engineConfiguration->cylindersCount = 6;
    // 1-4-2-5-3-6 M104
    engineConfiguration->firingOrder = FO_1_4_3_6_2_5; // M112
}

Referenced by applyEngineType().

Here is the caller graph for this function:

setHellenMercedes128_8_cyl()

void setHellenMercedes128_8_cyl

(

)

Definition at line 36 of file mercedes.cpp.

                                  {
    engineConfiguration->cylindersCount = 8;
    engineConfiguration->firingOrder = FO_1_5_4_2_6_3_7_8;
}

Referenced by applyEngineType().

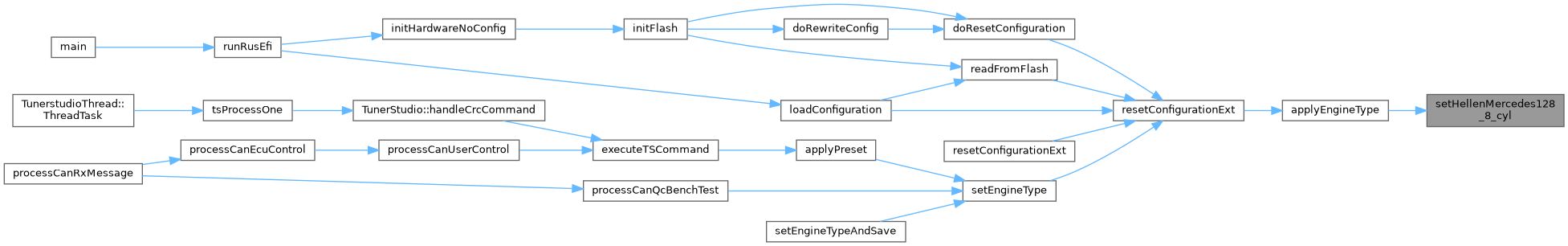

Here is the caller graph for this function:

Go to the source code of this file.
