mazda_miata.h File Reference

Detailed Description

Mazda Miata NA, also 1993 Ford Escort GT engine configuration. The US Escort.

Date

Oct 31, 2013

Author

Andrey Belomutskiy, (c) 2012-2020

http://rusefi.com/forum/viewtopic.php?t=537 Injectors: Denso 195500-2180, 230-265cc (?), tan, 13.9 ohms

Definition in file mazda_miata.h.

Functions
void	common079721_2351 ()

Function Documentation

common079721_2351()

void common079721_2351

(

)

Definition at line 74 of file mazda_miata.cpp.

                         {
    engineConfiguration->cylindersCount = 4;
    engineConfiguration->firingOrder = FO_1_3_4_2;

    engineConfiguration->fuelPumpPin = Gpio::Unassigned; // fuel pump is not controlled by ECU on this engine

    engineConfiguration->crankingInjectionMode = IM_SIMULTANEOUS;
    // set injection_mode 2
    engineConfiguration->injectionMode = IM_BATCH;

    // Frankenstein analog input #1: adc1
    // Frankenstein analog input #2: adc3
    // Frankenstein analog input #3: adc13
    // Frankenstein analog input #4: adc11
    // todo: see https://docs.google.com/spreadsheet/ccc?key=0Arl1FeMZcfisdEdGdUlHdWh6cVBoSzFIbkxqa1QtZ3c
    // Frankenstein analog input #5: adc
    // Frankenstein analog input #6: adc
    // Frankenstein analog input #7: adc
    // Frankenstein analog input #8: adc
    // Frankenstein analog input #9: adc
    // Frankenstein analog input #10: adc
    // Frankenstein analog input #11: adc
    // Frankenstein analog input #12: adc
    engineConfiguration->mafAdcChannel = EFI_ADC_1;
    engineConfiguration->tps1_1AdcChannel = EFI_ADC_3;
    engineConfiguration->clt.adcChannel = EFI_ADC_11;

}

Referenced by setFordEscortGt().

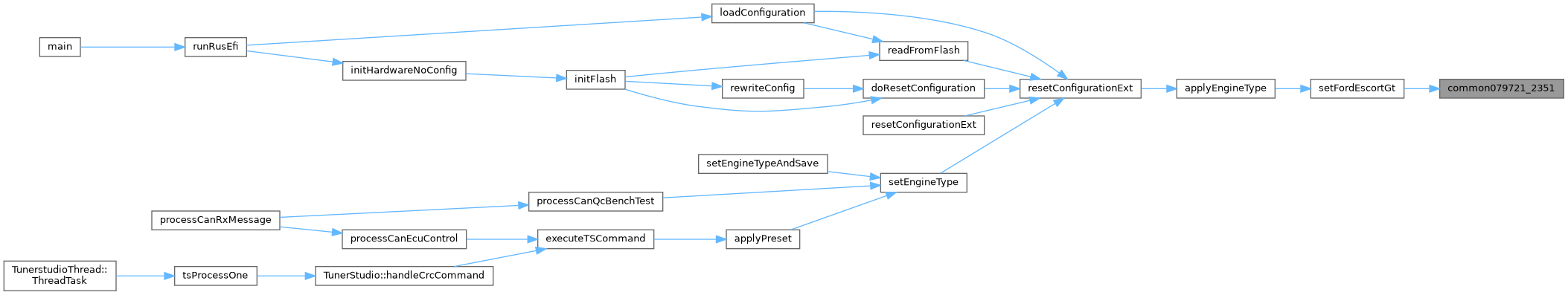

Here is the caller graph for this function:

Go to the source code of this file.
