honda_k_dbc.cpp File Reference

Functions
void	setHondaK ()
void	setProteusHondaOBD2A ()

Function Documentation

setHondaK()

void setHondaK

(

)

K24A4 engine HONDA_K

Definition at line 15 of file honda_k_dbc.cpp.

                 {
    engineConfiguration->cylindersCount = 4;
    engineConfiguration->displacement = 2.4;
    engineConfiguration->firingOrder = FO_1_3_4_2;
    engineConfiguration->engineSyncCam = SC_Exhaust_First;
    engineConfiguration->trigger.type = trigger_type_e::TT_HONDA_K_CRANK_12_1;
    engineConfiguration->camSyncOnSecondCrankRevolution = true;
    int magic = 0; // note that offset and VVT are related
    engineConfiguration->globalTriggerAngleOffset = 303 - magic;

    // VVT is here just single tooth? and we do not even use it!?
    engineConfiguration->vvtMode[0] = VVT_HONDA_K_INTAKE;
    // also known as 'CAM sync'? i am pretty confused at this point
    engineConfiguration->vvtMode[1] = VVT_HONDA_K_EXHAUST;
    engineConfiguration->vvtOffsets[0] = -21;
    engineConfiguration->vvtOffsets[1] = 183 + magic;

    // set cranking_fuel 15
    setTable(config->crankingCycleBaseFuel, 75);

    engineConfiguration->map.sensor.type = MT_DENSO183;
// todo: quote some source?
    engineConfiguration->injector.flow = 270;
    engineConfiguration->injector.flow = 310;
    engineConfiguration->injectorCompensationMode = ICM_FixedRailPressure;
    engineConfiguration->fuelReferencePressure = 350; // TODO: what is real value?!

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS;
    engineConfiguration->crankingInjectionMode = IM_SIMULTANEOUS;
    engineConfiguration->injectionMode = IM_SEQUENTIAL;

    setArrayValues(config->cltCrankingCorr, 70);
    static const uint16_t defaultPostCrankinDurationBins[] = {
        0, 65, 100, 125, 150, 250
    };
    copyArray(config->postCrankingDurationBins, defaultPostCrankinDurationBins);
    setTable(config->postCrankingFactor, 1.25f);
    engineConfiguration->useRunningMathForCranking = true;

    strcpy(engineConfiguration->engineMake, ENGINE_MAKE_HONDA);
    strcpy(engineConfiguration->engineCode, "K24");

    engineConfiguration->tpsMin = 100;
    engineConfiguration->tpsMax = 830;

    engineConfiguration->displayLogicLevelsInEngineSniffer = true;

    gppwm_channel *vtsControl = &engineConfiguration->gppwm[0];
    vtsControl->pwmFrequency = 0;
#if EFI_SIMULATOR
    // simulator canned config XML toolset cares to see perfect empty memory region
    memset(engineConfiguration->gpPwmNote[0], 0, sizeof(gppwm_note_t));
#endif
    strcpy(engineConfiguration->gpPwmNote[0], "VTS");

/**
 * K24A4 engine
 * HONDA_K
 */

#if HW_PROTEUS & EFI_PROD_CODE
    strcpy(engineConfiguration->vehicleName, "test");
//  engineConfiguration->triggerInputPins[0] = PROTEUS_DIGITAL_2; // crank
//  engineConfiguration->camInputs[0] = PROTEUS_DIGITAL_4; // intake
//  engineConfiguration->camInputs[1 * CAMS_PER_BANK] = PROTEUS_DIGITAL_1; // exhaust

    engineConfiguration->triggerInputPins[0] = PROTEUS_DIGITAL_1; // exhaust
    engineConfiguration->camInputs[0] = PROTEUS_DIGITAL_4; // intake
// inverted
    // offset -41


    engineConfiguration->injectionPins[0] = Gpio::PROTEUS_LS_8;
    engineConfiguration->injectionPins[1] = Gpio::PROTEUS_LS_7;
    engineConfiguration->injectionPins[2] = Gpio::PROTEUS_LS_6;
    engineConfiguration->injectionPins[3] = Gpio::PROTEUS_LS_5;

    vtsControl->pin = Gpio::PROTEUS_HS_1;
    engineConfiguration->vvtPins[0] = Gpio::PROTEUS_HS_2;

    engineConfiguration->malfunctionIndicatorPin = Gpio::PROTEUS_LS_10;
    engineConfiguration->idle.solenoidPin = Gpio::PROTEUS_LS_15;
    engineConfiguration->fanPin = Gpio::PROTEUS_LS_1;

    engineConfiguration->iat.adcChannel = PROTEUS_IN_ANALOG_TEMP_1;
    engineConfiguration->clt.adcChannel = PROTEUS_IN_ANALOG_TEMP_2;
    engineConfiguration->tps1_1AdcChannel = PROTEUS_IN_ANALOG_VOLT_3;
    engineConfiguration->map.sensor.hwChannel = PROTEUS_IN_ANALOG_VOLT_6;
    engineConfiguration->fanPin = Gpio::Unassigned;

    engineConfiguration->mainRelayPin = Gpio::PROTEUS_LS_9;
    engineConfiguration->fuelPumpPin = Gpio::PROTEUS_LS_11;

#endif // HW_PROTEUS
}

Referenced by applyEngineType(), and hellen_honda_k_boardDefaultConfiguration().

Here is the call graph for this function:

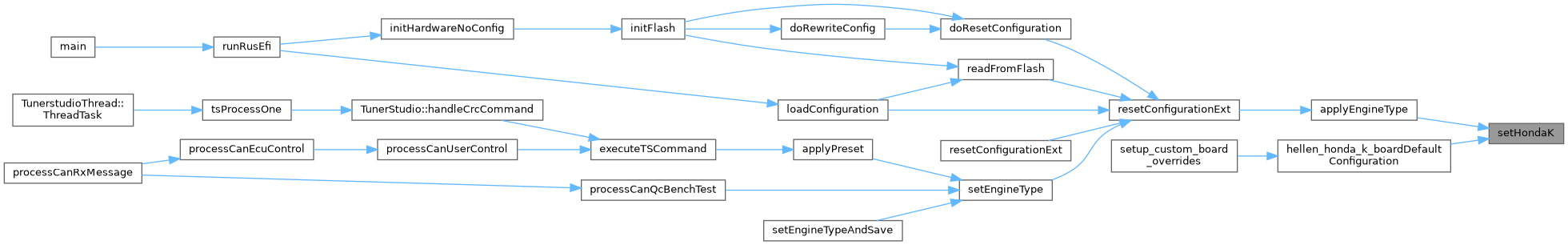

Here is the caller graph for this function:

setProteusHondaOBD2A()

void setProteusHondaOBD2A

(

)

Definition at line 111 of file honda_k_dbc.cpp.

                            {

}

Referenced by applyEngineType().

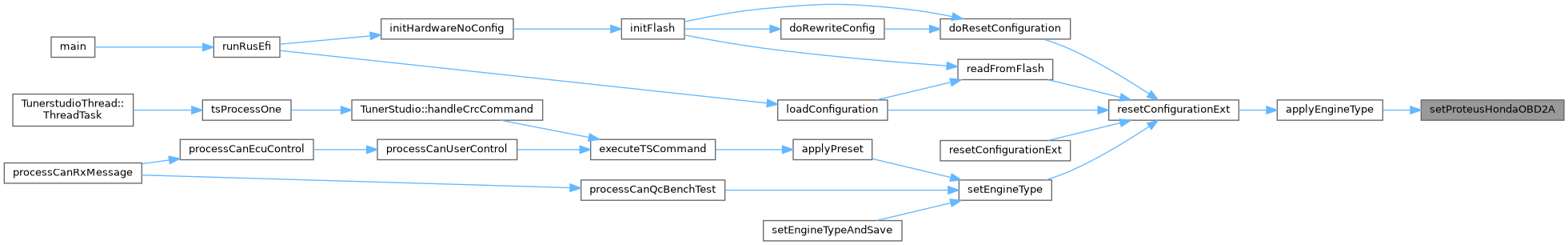

Here is the caller graph for this function:

Go to the source code of this file.
