honda_600.h File Reference

Functions
void	setHonda600 ()

Function Documentation

setHonda600()

void setHonda600

(

)

Definition at line 15 of file honda_600.cpp.

                   {

    engineConfiguration->trigger.type = trigger_type_e::TT_HONDA_CBR_600;


    // set global_trigger_offset_angle 180
    // set global_trigger_offset_angle 540
    engineConfiguration->globalTriggerAngleOffset = 70; // huh why is this here? do we need better tdcPosition in configureHondaCbr600?

    engineConfiguration->crankingInjectionMode = IM_SIMULTANEOUS;
    engineConfiguration->injectionMode = IM_SEQUENTIAL;
    engineConfiguration->cylindersCount = 4;
  engineConfiguration->firingOrder = FO_1_3_4_2;

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS;

}

Referenced by applyEngineType().

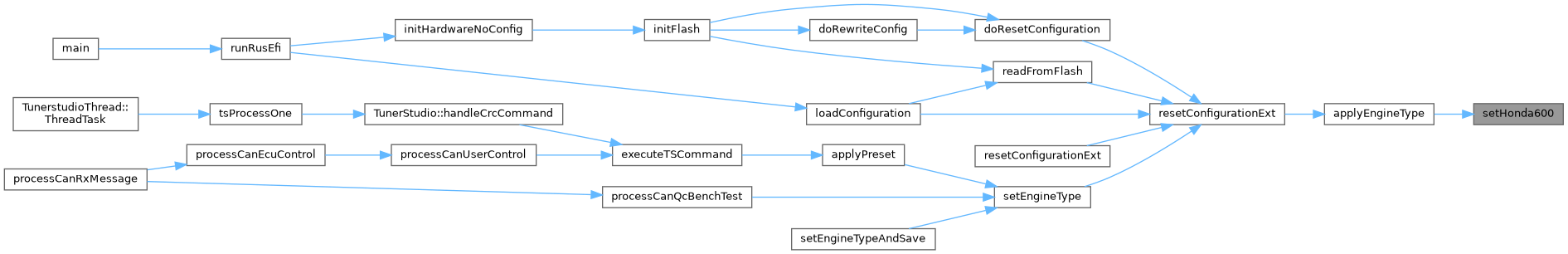

Here is the caller graph for this function:
