Programming operation functions

Programming operation functions. More...

Collaboration diagram for Programming operation functions:

Functions
HAL_StatusTypeDef	HAL_FLASH_Program (uint32_t TypeProgram, uint32_t Address, uint64_t Data)
	Program byte, halfword, word or double word at a specified address.
HAL_StatusTypeDef	HAL_FLASH_Program_IT (uint32_t TypeProgram, uint32_t Address, uint64_t Data)
	Program byte, halfword, word or double word at a specified address with interrupt enabled.
void	HAL_FLASH_IRQHandler (void)
	This function handles FLASH interrupt request.
__weak void	HAL_FLASH_EndOfOperationCallback (uint32_t ReturnValue)
	FLASH end of operation interrupt callback.
__weak void	HAL_FLASH_OperationErrorCallback (uint32_t ReturnValue)
	FLASH operation error interrupt callback.
HAL_StatusTypeDef	HAL_FLASH_Program (uint32_t TypeProgram, uint32_t FlashAddress, uint32_t DataAddress)
	Program flash word at a specified address.
HAL_StatusTypeDef	HAL_FLASH_Program_IT (uint32_t TypeProgram, uint32_t FlashAddress, uint32_t DataAddress)
	Program flash words of 256 bits at a specified address with interrupt enabled.

Detailed Description

Programming operation functions.

 ===============================================================================
                  ##### Programming operation functions #####
 ===============================================================================
    [..]
    This subsection provides a set of functions allowing to manage the FLASH
    program operations.

Function Documentation

HAL_FLASH_EndOfOperationCallback()

void HAL_FLASH_EndOfOperationCallback

(

uint32_t

ReturnValue

)

FLASH end of operation interrupt callback.

Parameters

ReturnValue

The value saved in this parameter depends on the ongoing procedure Mass Erase: Bank number which has been requested to erase Sectors Erase: Sector which has been erased (if 0xFFFFFFFF, it means that all the selected sectors have been erased) Program: Address which was selected for data program

Return values

None

Parameters

ReturnValue

The value saved in this parameter depends on the ongoing procedure Sectors Erase: Sector which has been erased (if 0xFFFFFFFF, it means that all the selected sectors have been erased) Program : Address which was selected for data program Mass Erase : No return value expected

Return values

None

Parameters

ReturnValue

The value saved in this parameter depends on the ongoing procedure Mass Erase: Bank number which has been requested to erase Sectors Erase: Sector which has been erased (if 0xFFFFFFFF, it means that all the selected sectors have been erased) Program: Address which was selected for data program

Return values

None

Definition at line 407 of file stm32f4xx_hal_flash.c.

{
  (void)ReturnValue;
  /* NOTE : This function Should not be modified, when the callback is needed,
            the HAL_FLASH_EndOfOperationCallback could be implemented in the user file
   */
}

Referenced by HAL_FLASH_IRQHandler().

Here is the caller graph for this function:

HAL_FLASH_IRQHandler()

void HAL_FLASH_IRQHandler

(

void

)

This function handles FLASH interrupt request.

Return values

None

Definition at line 289 of file stm32f4xx_hal_flash.c.

{
  uint32_t addresstmp = 0;

  /* Check FLASH operation error flags */
  if(__HAL_FLASH_GET_FLAG((FLASH_FLAG_OPERR | FLASH_FLAG_WRPERR | FLASH_FLAG_PGAERR | \
    FLASH_FLAG_PGPERR | FLASH_FLAG_PGSERR | FLASH_FLAG_RDERR)) != RESET)
  {
    if(pFlash.ProcedureOnGoing == FLASH_PROC_SECTERASE)
    {
      /*return the faulty sector*/
      addresstmp = pFlash.Sector;
      pFlash.Sector = 0xFFFFFFFF;
    }
    else if(pFlash.ProcedureOnGoing == FLASH_PROC_MASSERASE)
    {
      /*return the faulty bank*/
      addresstmp = pFlash.Bank;
    }
    else
    {
      /*return the faulty address*/
      addresstmp = pFlash.Address;
    }

    /*Save the Error code*/
    FLASH_SetErrorCode();

    /* FLASH error interrupt user callback */
    HAL_FLASH_OperationErrorCallback(addresstmp);

    /*Stop the procedure ongoing*/
    pFlash.ProcedureOnGoing = FLASH_PROC_NONE;
  }

  /* Check FLASH End of Operation flag  */
  if(__HAL_FLASH_GET_FLAG(FLASH_FLAG_EOP) != RESET)
  {
    /* Clear FLASH End of Operation pending bit */
    __HAL_FLASH_CLEAR_FLAG(FLASH_FLAG_EOP);

    if(pFlash.ProcedureOnGoing == FLASH_PROC_SECTERASE)
    {
      /*Nb of sector to erased can be decreased*/
      pFlash.NbSectorsToErase--;

      /* Check if there are still sectors to erase*/
      if(pFlash.NbSectorsToErase != 0)
      {
        addresstmp = pFlash.Sector;
        /*Indicate user which sector has been erased*/
        HAL_FLASH_EndOfOperationCallback(addresstmp);

        /*Increment sector number*/
        pFlash.Sector++;
        addresstmp = pFlash.Sector;
        FLASH_Erase_Sector(addresstmp, pFlash.VoltageForErase);
      }
      else
      {
        /*No more sectors to Erase, user callback can be called.*/
        /*Reset Sector and stop Erase sectors procedure*/
        pFlash.Sector = addresstmp = 0xFFFFFFFF;
        pFlash.ProcedureOnGoing = FLASH_PROC_NONE;

        /* Flush the caches to be sure of the data consistency */
        FLASH_FlushCaches() ;

        /* FLASH EOP interrupt user callback */
        HAL_FLASH_EndOfOperationCallback(addresstmp);
      }
    }
    else
    {
      if(pFlash.ProcedureOnGoing == FLASH_PROC_MASSERASE)
      {
        /* MassErase ended. Return the selected bank */
        /* Flush the caches to be sure of the data consistency */
        FLASH_FlushCaches() ;

        /* FLASH EOP interrupt user callback */
        HAL_FLASH_EndOfOperationCallback(pFlash.Bank);
      }
      else
      {
        /*Program ended. Return the selected address*/
        /* FLASH EOP interrupt user callback */
        HAL_FLASH_EndOfOperationCallback(pFlash.Address);
      }
      pFlash.ProcedureOnGoing = FLASH_PROC_NONE;
    }
  }

  if(pFlash.ProcedureOnGoing == FLASH_PROC_NONE)
  {
    /* Operation is completed, disable the PG, SER, SNB and MER Bits */
    CLEAR_BIT(FLASH->CR, (FLASH_CR_PG | FLASH_CR_SER | FLASH_CR_SNB | FLASH_MER_BIT));

    /* Disable End of FLASH Operation interrupt */
    __HAL_FLASH_DISABLE_IT(FLASH_IT_EOP);

    /* Disable Error source interrupt */
    __HAL_FLASH_DISABLE_IT(FLASH_IT_ERR);

    /* Process Unlocked */
    __HAL_UNLOCK(&pFlash);
  }
}

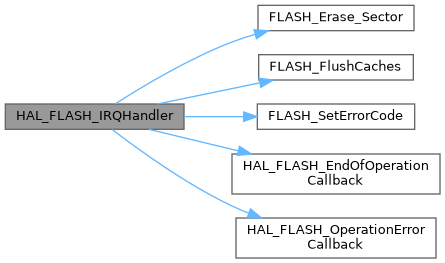

Here is the call graph for this function:

HAL_FLASH_OperationErrorCallback()

void HAL_FLASH_OperationErrorCallback

(

uint32_t

ReturnValue

)

FLASH operation error interrupt callback.

Parameters

ReturnValue

The value saved in this parameter depends on the ongoing procedure Mass Erase: Bank number which has been requested to erase Sectors Erase: Sector number which returned an error Program: Address which was selected for data program

Return values

None

Parameters

ReturnValue

The value saved in this parameter depends on the ongoing procedure Sectors Erase: Sector which has been erased (if 0xFFFFFFFF, it means that all the selected sectors have been erased) Program : Address which was selected for data program Mass Erase : No return value expected

Return values

None

Parameters

ReturnValue

The value saved in this parameter depends on the ongoing procedure Mass Erase: Bank number which has been requested to erase Sectors Erase: Sector number which returned an error Program: Address which was selected for data program

Return values

None

Definition at line 423 of file stm32f4xx_hal_flash.c.

{
  (void)ReturnValue;
  /* NOTE : This function Should not be modified, when the callback is needed,
            the HAL_FLASH_OperationErrorCallback could be implemented in the user file
   */
}

Referenced by HAL_FLASH_IRQHandler().

Here is the caller graph for this function:

HAL_FLASH_Program() [1/2]

HAL_StatusTypeDef HAL_FLASH_Program	(	uint32_t	TypeProgram,
		uint32_t	Address,
		uint64_t	Data
	)

Program byte, halfword, word or double word at a specified address.

Parameters

TypeProgram	Indicate the way to program at a specified address. This parameter can be a value of FLASH Type Program
Address	specifies the address to be programmed.
Data	specifies the data to be programmed

Return values

HAL_StatusTypeDef

HAL Status

Definition at line 184 of file stm32f4xx_hal_flash.c.

{
  HAL_StatusTypeDef status = HAL_ERROR;

  /* Process Locked */
  __HAL_LOCK(&pFlash);

  /* Check the parameters */
  assert_param(IS_FLASH_TYPEPROGRAM(TypeProgram));

  /* Wait for last operation to be completed */
  status = FLASH_WaitForLastOperation((uint32_t)FLASH_TIMEOUT_VALUE);

  if(status == HAL_OK)
  {
    if(TypeProgram == FLASH_TYPEPROGRAM_BYTE)
    {
      /*Program byte (8-bit) at a specified address.*/
      FLASH_Program_Byte(Address, (uint8_t) Data);
    }
    else if(TypeProgram == FLASH_TYPEPROGRAM_HALFWORD)
    {
      /*Program halfword (16-bit) at a specified address.*/
      FLASH_Program_HalfWord(Address, (uint16_t) Data);
    }
    else if(TypeProgram == FLASH_TYPEPROGRAM_WORD)
    {
      /*Program word (32-bit) at a specified address.*/
      FLASH_Program_Word(Address, (uint32_t) Data);
    }
    else
    {
      /*Program double word (64-bit) at a specified address.*/
      FLASH_Program_DoubleWord(Address, Data);
    }

    /* Wait for last operation to be completed */
    status = FLASH_WaitForLastOperation((uint32_t)FLASH_TIMEOUT_VALUE);

    /* If the program operation is completed, disable the PG Bit */
    FLASH->CR &= (~FLASH_CR_PG);
  }

  /* Process Unlocked */
  __HAL_UNLOCK(&pFlash);

  return status;
}

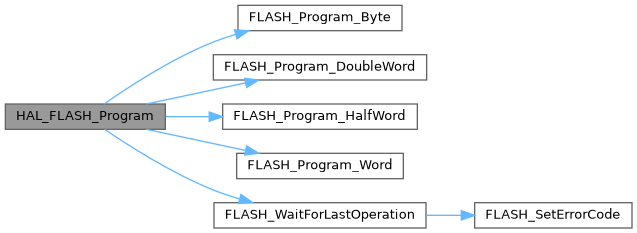

Here is the call graph for this function:

HAL_FLASH_Program() [2/2]

HAL_StatusTypeDef HAL_FLASH_Program	(	uint32_t	TypeProgram,
		uint32_t	FlashAddress,
		uint32_t	DataAddress
	)

Program flash word at a specified address.

Parameters

TypeProgram	Indicate the way to program at a specified address. This parameter can be a value of FLASH Type Program
FlashAddress	specifies the address to be programmed.
DataAddress	specifies the address of data to be programmed

Return values

HAL_StatusTypeDef

HAL Status

Definition at line 151 of file stm32h7xx_hal_flash.c.

{
  HAL_StatusTypeDef status;
  __IO uint32_t *dest_addr = (__IO uint32_t *)FlashAddress;
  __IO uint32_t *src_addr = (__IO uint32_t*)DataAddress;
  uint32_t bank;
  uint8_t row_index = FLASH_NB_32BITWORD_IN_FLASHWORD;

  /* Check the parameters */
  assert_param(IS_FLASH_TYPEPROGRAM(TypeProgram));
  assert_param(IS_FLASH_PROGRAM_ADDRESS(FlashAddress));

  /* Process Locked */
  __HAL_LOCK(&pFlash);

#if defined (FLASH_OPTCR_PG_OTP)
  if((IS_FLASH_PROGRAM_ADDRESS_BANK1(FlashAddress)) || (IS_FLASH_PROGRAM_ADDRESS_OTP(FlashAddress)))
#else
  if(IS_FLASH_PROGRAM_ADDRESS_BANK1(FlashAddress))
#endif /* FLASH_OPTCR_PG_OTP */
  {
    bank = FLASH_BANK_1;
  }
#if defined (DUAL_BANK)
  else if(IS_FLASH_PROGRAM_ADDRESS_BANK2(FlashAddress))
  {
    bank = FLASH_BANK_2;
  }
#endif /* DUAL_BANK */
  else
  {
    return HAL_ERROR;
  }

  /* Reset error code */
  pFlash.ErrorCode = HAL_FLASH_ERROR_NONE;

  /* Wait for last operation to be completed */
  status = FLASH_WaitForLastOperation((uint32_t)FLASH_TIMEOUT_VALUE, bank);

  if(status == HAL_OK)
  {
#if defined (DUAL_BANK)
    if(bank == FLASH_BANK_1)
    {
#if defined (FLASH_OPTCR_PG_OTP)
      if (TypeProgram == FLASH_TYPEPROGRAM_OTPWORD)
      {
        /* Set OTP_PG bit */
        SET_BIT(FLASH->OPTCR, FLASH_OPTCR_PG_OTP);
      }
      else
#endif /* FLASH_OPTCR_PG_OTP */
      {
        /* Set PG bit */
        SET_BIT(FLASH->CR1, FLASH_CR_PG);
      }
    }
    else
    {
      /* Set PG bit */
      SET_BIT(FLASH->CR2, FLASH_CR_PG);
    }
#else /* Single Bank */
#if defined (FLASH_OPTCR_PG_OTP)
      if (TypeProgram == FLASH_TYPEPROGRAM_OTPWORD)
      {
        /* Set OTP_PG bit */
        SET_BIT(FLASH->OPTCR, FLASH_OPTCR_PG_OTP);
      }
      else
#endif /* FLASH_OPTCR_PG_OTP */
      {
        /* Set PG bit */
        SET_BIT(FLASH->CR1, FLASH_CR_PG);
      }
#endif /* DUAL_BANK */

    __ISB();
    __DSB();

#if defined (FLASH_OPTCR_PG_OTP)
    if (TypeProgram == FLASH_TYPEPROGRAM_OTPWORD)
    {
      /* Program an OTP word (16 bits) */
      *(__IO uint16_t *)FlashAddress = *(__IO uint16_t*)DataAddress;
    }
    else
#endif /* FLASH_OPTCR_PG_OTP */
    {
      /* Program the flash word */
      do
      {
        *dest_addr = *src_addr;
        dest_addr++;
        src_addr++;
        row_index--;
     } while (row_index != 0U);
    }

    __ISB();
    __DSB();

    /* Wait for last operation to be completed */
    status = FLASH_WaitForLastOperation((uint32_t)FLASH_TIMEOUT_VALUE, bank);

#if defined (DUAL_BANK)
#if defined (FLASH_OPTCR_PG_OTP)
    if (TypeProgram == FLASH_TYPEPROGRAM_OTPWORD)
    {
      /* If the program operation is completed, disable the OTP_PG */
      CLEAR_BIT(FLASH->OPTCR, FLASH_OPTCR_PG_OTP);
    }
    else
#endif /* FLASH_OPTCR_PG_OTP */
    {
      if(bank == FLASH_BANK_1)
      {
        /* If the program operation is completed, disable the PG */
        CLEAR_BIT(FLASH->CR1, FLASH_CR_PG);
      }
      else
      {
        /* If the program operation is completed, disable the PG */
        CLEAR_BIT(FLASH->CR2, FLASH_CR_PG);
      }
    }
#else /* Single Bank */
#if defined (FLASH_OPTCR_PG_OTP)
    if (TypeProgram == FLASH_TYPEPROGRAM_OTPWORD)
    {
      /* If the program operation is completed, disable the OTP_PG */
      CLEAR_BIT(FLASH->OPTCR, FLASH_OPTCR_PG_OTP);
    }
    else
#endif /* FLASH_OPTCR_PG_OTP */
    {
      /* If the program operation is completed, disable the PG */
      CLEAR_BIT(FLASH->CR1, FLASH_CR_PG);
    }
#endif /* DUAL_BANK */
  }

  /* Process Unlocked */
  __HAL_UNLOCK(&pFlash);

  return status;
}

Here is the call graph for this function:

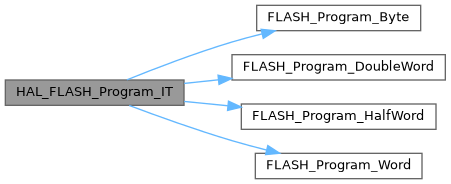

HAL_FLASH_Program_IT() [1/2]

HAL_StatusTypeDef HAL_FLASH_Program_IT	(	uint32_t	TypeProgram,
		uint32_t	Address,
		uint64_t	Data
	)

Program byte, halfword, word or double word at a specified address with interrupt enabled.

Parameters

TypeProgram	Indicate the way to program at a specified address. This parameter can be a value of FLASH Type Program
Address	specifies the address to be programmed.
Data	specifies the data to be programmed

Return values

HAL

Status

Definition at line 242 of file stm32f4xx_hal_flash.c.

{
  HAL_StatusTypeDef status = HAL_OK;

  /* Process Locked */
  __HAL_LOCK(&pFlash);

  /* Check the parameters */
  assert_param(IS_FLASH_TYPEPROGRAM(TypeProgram));

  /* Enable End of FLASH Operation interrupt */
  __HAL_FLASH_ENABLE_IT(FLASH_IT_EOP);

  /* Enable Error source interrupt */
  __HAL_FLASH_ENABLE_IT(FLASH_IT_ERR);

  pFlash.ProcedureOnGoing = FLASH_PROC_PROGRAM;
  pFlash.Address = Address;

  if(TypeProgram == FLASH_TYPEPROGRAM_BYTE)
  {
    /*Program byte (8-bit) at a specified address.*/
      FLASH_Program_Byte(Address, (uint8_t) Data);
  }
  else if(TypeProgram == FLASH_TYPEPROGRAM_HALFWORD)
  {
    /*Program halfword (16-bit) at a specified address.*/
    FLASH_Program_HalfWord(Address, (uint16_t) Data);
  }
  else if(TypeProgram == FLASH_TYPEPROGRAM_WORD)
  {
    /*Program word (32-bit) at a specified address.*/
    FLASH_Program_Word(Address, (uint32_t) Data);
  }
  else
  {
    /*Program double word (64-bit) at a specified address.*/
    FLASH_Program_DoubleWord(Address, Data);
  }

  return status;
}

Here is the call graph for this function:

HAL_FLASH_Program_IT() [2/2]

HAL_StatusTypeDef HAL_FLASH_Program_IT	(	uint32_t	TypeProgram,
		uint32_t	FlashAddress,
		uint32_t	DataAddress
	)

Program flash words of 256 bits at a specified address with interrupt enabled.

Parameters

TypeProgram	Indicate the way to program at a specified address. This parameter can be a value of FLASH Type Program
FlashAddress	specifies the address to be programmed.
DataAddress	specifies the address of data (256 bits) to be programmed

Return values

HAL

Status

Definition at line 309 of file stm32h7xx_hal_flash.c.

{
  HAL_StatusTypeDef status;
  __IO uint32_t *dest_addr = (__IO uint32_t*)FlashAddress;
  __IO uint32_t *src_addr = (__IO uint32_t*)DataAddress;
  uint32_t bank;
  uint8_t row_index = FLASH_NB_32BITWORD_IN_FLASHWORD;

  /* Check the parameters */
  assert_param(IS_FLASH_TYPEPROGRAM(TypeProgram));
  assert_param(IS_FLASH_PROGRAM_ADDRESS(FlashAddress));

  /* Process Locked */
  __HAL_LOCK(&pFlash);

  /* Reset error code */
  pFlash.ErrorCode = HAL_FLASH_ERROR_NONE;

#if defined (FLASH_OPTCR_PG_OTP)
  if((IS_FLASH_PROGRAM_ADDRESS_BANK1(FlashAddress)) || (IS_FLASH_PROGRAM_ADDRESS_OTP(FlashAddress)))
#else
  if(IS_FLASH_PROGRAM_ADDRESS_BANK1(FlashAddress))
#endif /* FLASH_OPTCR_PG_OTP */
  {
    bank = FLASH_BANK_1;
  }
#if defined (DUAL_BANK)
  else if(IS_FLASH_PROGRAM_ADDRESS_BANK2(FlashAddress))
  {
    bank = FLASH_BANK_2;
  }
#endif /* DUAL_BANK */
  else
  {
    return HAL_ERROR;
  }

  /* Wait for last operation to be completed */
  status = FLASH_WaitForLastOperation((uint32_t)FLASH_TIMEOUT_VALUE, bank);

  if (status != HAL_OK)
  {
    /* Process Unlocked */
    __HAL_UNLOCK(&pFlash);
  }
  else
  {
    pFlash.Address = FlashAddress;

#if defined (DUAL_BANK)
    if(bank == FLASH_BANK_1)
    {
      /* Set internal variables used by the IRQ handler */
      pFlash.ProcedureOnGoing = FLASH_PROC_PROGRAM_BANK1;

#if defined (FLASH_OPTCR_PG_OTP)
      if (TypeProgram == FLASH_TYPEPROGRAM_OTPWORD)
      {
        /* Set OTP_PG bit */
        SET_BIT(FLASH->OPTCR, FLASH_OPTCR_PG_OTP);
      }
      else
#endif /* FLASH_OPTCR_PG_OTP */
      {
        /* Set PG bit */
        SET_BIT(FLASH->CR1, FLASH_CR_PG);
      }

      /* Enable End of Operation and Error interrupts for Bank 1 */
#if defined (FLASH_CR_OPERRIE)
      __HAL_FLASH_ENABLE_IT_BANK1(FLASH_IT_EOP_BANK1     | FLASH_IT_WRPERR_BANK1 | FLASH_IT_PGSERR_BANK1 | \
                                  FLASH_IT_STRBERR_BANK1 | FLASH_IT_INCERR_BANK1 | FLASH_IT_OPERR_BANK1);
#else
      __HAL_FLASH_ENABLE_IT_BANK1(FLASH_IT_EOP_BANK1     | FLASH_IT_WRPERR_BANK1 | FLASH_IT_PGSERR_BANK1 | \
                                  FLASH_IT_STRBERR_BANK1 | FLASH_IT_INCERR_BANK1);
#endif /* FLASH_CR_OPERRIE */
    }
    else
    {
      /* Set internal variables used by the IRQ handler */
      pFlash.ProcedureOnGoing = FLASH_PROC_PROGRAM_BANK2;

      /* Set PG bit */
      SET_BIT(FLASH->CR2, FLASH_CR_PG);

      /* Enable End of Operation and Error interrupts for Bank2 */
#if defined (FLASH_CR_OPERRIE)
      __HAL_FLASH_ENABLE_IT_BANK2(FLASH_IT_EOP_BANK2     | FLASH_IT_WRPERR_BANK2 | FLASH_IT_PGSERR_BANK2 | \
                                  FLASH_IT_STRBERR_BANK2 | FLASH_IT_INCERR_BANK2 | FLASH_IT_OPERR_BANK2);
#else
      __HAL_FLASH_ENABLE_IT_BANK2(FLASH_IT_EOP_BANK2     | FLASH_IT_WRPERR_BANK2 | FLASH_IT_PGSERR_BANK2 | \
                                  FLASH_IT_STRBERR_BANK2 | FLASH_IT_INCERR_BANK2);
#endif /* FLASH_CR_OPERRIE */
    }
#else /* Single Bank */
    /* Set internal variables used by the IRQ handler */
    pFlash.ProcedureOnGoing = FLASH_PROC_PROGRAM_BANK1;

#if defined (FLASH_OPTCR_PG_OTP)
    if (TypeProgram == FLASH_TYPEPROGRAM_OTPWORD)
    {
      /* Set OTP_PG bit */
      SET_BIT(FLASH->OPTCR, FLASH_OPTCR_PG_OTP);
    }
    else
#endif /* FLASH_OPTCR_PG_OTP */
    {
      /* Set PG bit */
      SET_BIT(FLASH->CR1, FLASH_CR_PG);
    }

      /* Enable End of Operation and Error interrupts for Bank 1 */
#if defined (FLASH_CR_OPERRIE)
      __HAL_FLASH_ENABLE_IT_BANK1(FLASH_IT_EOP_BANK1     | FLASH_IT_WRPERR_BANK1 | FLASH_IT_PGSERR_BANK1 | \
                                  FLASH_IT_STRBERR_BANK1 | FLASH_IT_INCERR_BANK1 | FLASH_IT_OPERR_BANK1);
#else
      __HAL_FLASH_ENABLE_IT_BANK1(FLASH_IT_EOP_BANK1     | FLASH_IT_WRPERR_BANK1 | FLASH_IT_PGSERR_BANK1 | \
                                  FLASH_IT_STRBERR_BANK1 | FLASH_IT_INCERR_BANK1);
#endif /* FLASH_CR_OPERRIE */
#endif /* DUAL_BANK */

    __ISB();
    __DSB();

#if defined (FLASH_OPTCR_PG_OTP)
    if (TypeProgram == FLASH_TYPEPROGRAM_OTPWORD)
    {
      /* Program an OTP word (16 bits) */
      *(__IO uint16_t *)FlashAddress = *(__IO uint16_t*)DataAddress;
    }
    else
#endif /* FLASH_OPTCR_PG_OTP */
    {
      /* Program the flash word */
      do
      {
        *dest_addr = *src_addr;
        dest_addr++;
        src_addr++;
        row_index--;
      } while (row_index != 0U);
    }

    __ISB();
    __DSB();
  }

  return status;
}

Here is the call graph for this function:
