Typedefs | Enumerations | Functions | Variables
ADC

Typedefs

typedef uint16_t adcsample_t
 ADC sample data type.

typedef uint16_t adc_channels_num_t
 Channels number in a conversion group.

typedef void(* adcerrorcallback_t) (ADCDriver *adcp, adcerror_t err)
 ADC error callback type.


Enumerations

enum  adcerror_t { ADC_ERR_DMAFAILURE = 0 , ADC_ERR_OVERFLOW = 1 }
 Possible ADC failure causes. More...


Functions

static void calibrate (ADCDriver *adcp)

static void adc_lld_irq_handler (ADCDriver *adcp)
 ADC interrupt handler.

 OSAL_IRQ_HANDLER (KINETIS_ADC0_IRQ_VECTOR)

 OSAL_IRQ_HANDLER (KINETIS_ADC1_IRQ_VECTOR)

 OSAL_IRQ_HANDLER (KINETIS_ADC2_IRQ_VECTOR)

void adc_lld_init (void)
 Low level ADC driver initialization.

void adc_lld_start (ADCDriver *adcp)
 Configures and activates the ADC peripheral.

void adc_lld_stop (ADCDriver *adcp)
 Deactivates the ADC peripheral.

void adc_lld_start_conversion (ADCDriver *adcp)
 Starts an ADC conversion.

void adc_lld_stop_conversion (ADCDriver *adcp)
 Stops an ongoing conversion.


Variables

ADCDriver ADCD1
 ADC1 driver identifier.

ADCDriver ADCD2
 ADC2 driver identifier.

ADCDriver ADCD3
 ADC3 driver identifier.

uint32_t channel_mask
 Bitmask of channels for ADC conversion.

uint32_t cfg1
 ADC CFG1 register initialization data.

uint32_t sc3
 ADC SC3 register initialization data.

ADCDriver ADCD1
 ADC1 driver identifier.

ADCDriver ADCD2
 ADC2 driver identifier.

ADCDriver ADCD3
 ADC3 driver identifier.


Detailed Description

Typedef Documentation

◆ adc_channels_num_t

typedef uint16_t adc_channels_num_t

Channels number in a conversion group.

Definition at line 195 of file hal_adc_lld.h.

◆ adcerrorcallback_t

typedef void(* adcerrorcallback_t) (ADCDriver *adcp, adcerror_t err)

ADC error callback type.

Parameters
[in]adcppointer to the ADCDriver object triggering the callback
[in]errADC error code

Definition at line 214 of file hal_adc_lld.h.

◆ adcsample_t

typedef uint16_t adcsample_t

ADC sample data type.

Definition at line 190 of file hal_adc_lld.h.

Enumeration Type Documentation

◆ adcerror_t

enum adcerror_t

Possible ADC failure causes.

Note
Error codes are architecture dependent and should not relied upon.
Enumerator
ADC_ERR_DMAFAILURE

DMA operations failure.

ADC_ERR_OVERFLOW

ADC overflow condition.

Definition at line 202 of file hal_adc_lld.h.

202 {
203 ADC_ERR_DMAFAILURE = 0, /**< DMA operations failure. */
204 ADC_ERR_OVERFLOW = 1 /**< ADC overflow condition. */
205} adcerror_t;
adcerror_t
Possible ADC failure causes.
@ ADC_ERR_DMAFAILURE
@ ADC_ERR_OVERFLOW

Function Documentation

◆ adc_lld_init()

void adc_lld_init ( void  )

Low level ADC driver initialization.

@notapi

Definition at line 195 of file hal_adc_lld.c.

195 {
196
197#if KINETIS_ADC_USE_ADC0
198 /* Driver initialization.*/
199 adcObjectInit(&ADCD1);
200 /* The shared vector is initialized on driver initialization and never
201 disabled.*/
202 nvicEnableVector(ADC0_IRQn, KINETIS_ADC_IRQ_PRIORITY);
203#endif
204
205#if KINETIS_ADC_USE_ADC1
206 /* Driver initialization.*/
207 adcObjectInit(&ADCD2);
208 /* The shared vector is initialized on driver initialization and never
209 disabled.*/
210 nvicEnableVector(ADC1_IRQn, KINETIS_ADC_IRQ_PRIORITY);
211#endif
212
213#if KINETIS_ADC_USE_ADC2
214 /* Driver initialization.*/
215 adcObjectInit(&ADCD3);
216 /* The shared vector is initialized on driver initialization and never
217 disabled.*/
218 nvicEnableVector(ADC2_IRQn, KINETIS_ADC_IRQ_PRIORITY);
219#endif
220
221}
ADCDriver ADCD3
ADC3 driver identifier.
Definition hal_adc_lld.c:54
ADCDriver ADCD2
ADC2 driver identifier.
Definition hal_adc_lld.c:49
ADCDriver ADCD1
ADC1 driver identifier.
Definition hal_adc_lld.c:44

◆ adc_lld_irq_handler()

static void adc_lld_irq_handler ( ADCDriver *  adcp)
static

ADC interrupt handler.

@isr

Definition at line 106 of file hal_adc_lld.c.

106 {
107#ifdef KE1xF
108 /* Disable Interrupt, Disable Channel */
109 adcp->adc12ChannelCfg.channelNumber = ADCx_SC1n_ADCH_DISABLED;
110 adcp->adc12ChannelCfg.enableInterruptOnConversionCompleted = false;
111 ADC12_SetChannelConfig(adcp->adc, adcp->channelGroup, &adcp->adc12ChannelCfg);
112 /* Read the sample into the buffer */
113 adcp->samples[adcp->current_index++] = ADC12_GetChannelConversionValue(adcp->adc, adcp->channelGroup);
114#else
115 /* Disable Interrupt, Disable Channel */
116 adcp->adc->SC1A = ADCx_SC1n_ADCH(ADCx_SC1n_ADCH_DISABLED);
117
118 /* Read the sample into the buffer */
119 adcp->samples[adcp->current_index++] = adcp->adc->RA;
120#endif /* KE1xF */
121
122 bool more = true;
123
124 /* At the end of the buffer then we may be finished */
125 if (adcp->current_index == adcp->number_of_samples) {
126 /* We are never finished in circular mode */
127 more = adcp->grpp->circular;
128
129 _adc_isr_full_code(adcp);
130
131 adcp->current_index = 0;
132
133 }
134
135 if (more) {
136
137 /* Signal half completion in circular mode. */
138 if (adcp->grpp->circular &&
139 (adcp->current_index == (adcp->number_of_samples / 2))) {
140
141 _adc_isr_half_code(adcp);
142 }
143
144#ifdef KE1xF
145 adcp->current_channel = (adcp->current_channel + 1) % adcp->grpp->num_channels;
146 adcp->adc12ChannelCfg.channelNumber = adcp->channelIndices[adcp->current_channel];
147 adcp->adc12ChannelCfg.enableInterruptOnConversionCompleted = true;
148 /* Enable Interrupt, Select the Channel */
149 ADC12_SetChannelConfig(adcp->adc, adcp->channelGroup, &adcp->adc12ChannelCfg);
150#else
151 /* Skip to the next channel */
152 do {
153 adcp->current_channel = (adcp->current_channel + 1) & ADC_CHANNEL_MASK;
154 } while (((1 << adcp->current_channel) & adcp->channel_mask) == 0);
155
156 /* Enable Interrupt, Select the Channel */
157 adcp->adc->SC1A = ADCx_SC1n_AIEN | ADCx_SC1n_ADCH(adcp->current_channel);
158#endif /* KE1xF */
159 }
160}
void ADC12_SetChannelConfig(ADC_Type *base, uint32_t channelGroup, const adc12_channel_config_t *config)
Configure the conversion channel.
Definition fsl_adc12.c:237
static uint32_t ADC12_GetChannelConversionValue(ADC_Type *base, uint32_t channelGroup)
Get the conversion value.
Definition fsl_adc12.h:228

Referenced by OSAL_IRQ_HANDLER(), OSAL_IRQ_HANDLER(), and OSAL_IRQ_HANDLER().

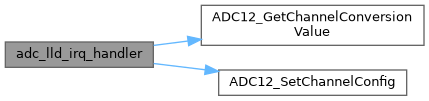

Here is the call graph for this function:

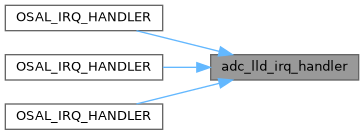

Here is the caller graph for this function:

◆ adc_lld_start()

void adc_lld_start ( ADCDriver *  adcp)

Configures and activates the ADC peripheral.

Parameters
[in]adcppointer to the ADCDriver object

@notapi

Definition at line 230 of file hal_adc_lld.c.

230 {
231
232 /* If in stopped state then enables the ADC clock.*/
233 if (adcp->state == ADC_STOP) {
234#if KINETIS_ADC_USE_ADC0
235 if (&ADCD1 == adcp) {
236#ifndef KE1xF
237 SIM->SCGC6 |= SIM_SCGC6_ADC0;
238#endif /* KE1xF */
239 adcp->adc = ADC0;
240 }
241#endif /* KINETIS_ADC_USE_ADC0 */
242
243#if KINETIS_ADC_USE_ADC1
244 if (&ADCD2 == adcp) {
245#ifndef KE1xF
246 SIM->SCGC6 |= SIM_SCGC6_ADC1;
247#endif /* KE1xF */
248 adcp->adc = ADC1;
249 }
250#endif /* KINETIS_ADC_USE_ADC1 */
251
252#if KINETIS_ADC_USE_ADC2
253 if (&ADCD3 == adcp) {
254#ifndef KE1xF
255 SIM->SCGC6 |= SIM_SCGC6_ADC2;
256#endif /* KE1xF */
257 adcp->adc = ADC2;
258 }
259#endif /* KINETIS_ADC_USE_ADC2 */
260 }
261
262#ifdef KE1xF
263 adcp->channelGroup = 0; // software-triggered
264 adcp->adc12ChannelCfg.channelNumber = 0; // we'll set it later, in adc_lld_start_conversion()
265 adcp->adc12ChannelCfg.enableInterruptOnConversionCompleted = true;
266
267 ADC12_GetDefaultConfig(&adcp->adc12Cfg);
268 adcp->adc12Cfg.resolution = kADC12_Resolution12Bit;
269 ADC12_Init(adcp->adc, &adcp->adc12Cfg);
270#else
271 adcp->channel_mask = adcp->grpp->channel_mask;
272#endif /* KE1xF */
273
274 if (adcp->config->calibrate) {
275 calibrate(adcp);
276 }
277
278
279}
static void calibrate(ADCDriver *adcp)
Definition hal_adc_lld.c:65
void ADC12_GetDefaultConfig(adc12_config_t *config)
Gets an available pre-defined settings for converter's configuration.
Definition fsl_adc12.c:198
void ADC12_Init(ADC_Type *base, const adc12_config_t *config)
Initialize the ADC12 module.
Definition fsl_adc12.c:133
@ kADC12_Resolution12Bit
Definition fsl_adc12.h:59

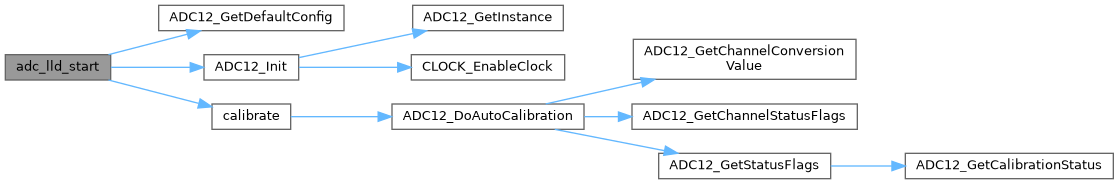

Here is the call graph for this function:

◆ adc_lld_start_conversion()

void adc_lld_start_conversion ( ADCDriver *  adcp)

Starts an ADC conversion.

Parameters
[in]adcppointer to the ADCDriver object

@notapi

Definition at line 309 of file hal_adc_lld.c.

309 {
310 const ADCConversionGroup *grpp = adcp->grpp;
311
312#ifdef KE1xF
313 // select first 16 channels
314 int chn;
315 adcp->channelIndices[0] = ADCx_SC1n_ADCH_DISABLED;
316 for (chn = 0; chn < grpp->num_channels; chn++) {
317 /*
318 if (chn < 10 && ((grpp->smpr2 >> (chn * 3)) & 7) == 0) // ADC_SMPR1_SMP_ANx(n)
319 continue;
320 if (chn >= 10 && ((grpp->smpr1 >> ((chn - 10) * 3)) & 7) == 0) // ADC_SMPR1_SMP_ANx(n)
321 continue;
322 */
323 if (chn < 6) {
324 adcp->channelIndices[chn] = (grpp->sqr3 >> (chn * 5)) & 31;
325 } else if (chn < 12) {
326 adcp->channelIndices[chn] = (grpp->sqr2 >> ((chn - 6) * 5)) & 31;
327 } else {
328 adcp->channelIndices[chn] = (grpp->sqr1 >> ((chn - 12) * 5)) & 31;
329 }
330 }
331
332 bool hw = (grpp->cr2 & ADC_CR2_SWSTART) ? false : true;
333
334 ADC12_EnableHardwareTrigger(adcp->adc, hw); /* enable software trigger mode */
335
336#else
337 /* Enable the Bandgap Buffer if channel mask includes BANDGAP */
338 if (adcp->channel_mask & ADC_BANDGAP) {
339 PMC->REGSC |= PMC_REGSC_BGBE;
340 }
341#endif /* KE1xF */
342
343 adcp->number_of_samples = adcp->depth * grpp->num_channels;
344 adcp->current_index = 0;
345
346 /* Skip to the next channel */
347 adcp->current_channel = 0;
348#ifdef KE1xF
349 adcp->adc12ChannelCfg.channelNumber = adcp->channelIndices[adcp->current_channel];
350 adcp->adc12ChannelCfg.enableInterruptOnConversionCompleted = true;
351 ADC12_SetChannelConfig(adcp->adc, adcp->channelGroup, &adcp->adc12ChannelCfg);
352#else
353 while (((1 << adcp->current_channel) & adcp->channel_mask) == 0) {
354 adcp->current_channel = (adcp->current_channel + 1) & ADC_CHANNEL_MASK;
355 }
356
357 /* Set clock speed and conversion size */
358 adcp->adc->CFG1 = grpp->cfg1;
359
360 /* Set averaging */
361 adcp->adc->SC3 = grpp->sc3;
362
363 /* Enable Interrupt, Select Channel */
364 adcp->adc->SC1A = ADCx_SC1n_AIEN | ADCx_SC1n_ADCH(adcp->current_channel);
365#endif /* KE1xF */
366}
static void ADC12_EnableHardwareTrigger(ADC_Type *base, bool enable)
Enable of disable the hardware trigger mode.
Definition fsl_adc12.h:322

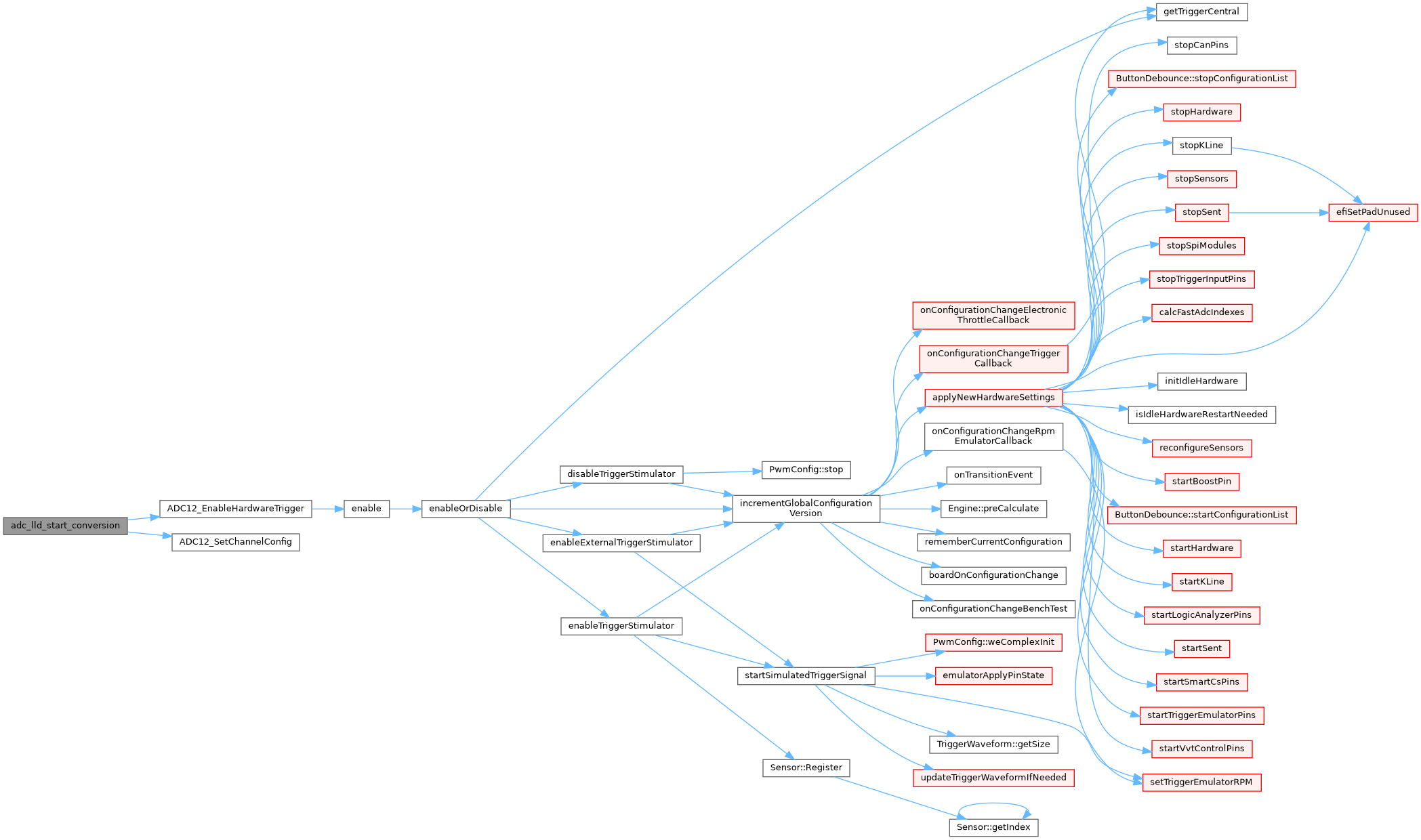

Here is the call graph for this function:

◆ adc_lld_stop()

void adc_lld_stop ( ADCDriver *  adcp)

Deactivates the ADC peripheral.

Parameters
[in]adcppointer to the ADCDriver object

@notapi

Definition at line 288 of file hal_adc_lld.c.

288 {
289
290 /* If in ready state then disables the ADC clock.*/
291 if (adcp->state == ADC_READY) {
292#ifdef KE1xF
293 ADC12_Deinit(adcp->adc);
294#else
295 SIM->SCGC6 &= ~SIM_SCGC6_ADC0;
296 /* Disable Interrupt, Disable Channel */
297 adcp->adc->SC1A = ADCx_SC1n_ADCH(ADCx_SC1n_ADCH_DISABLED);
298#endif /* KE1xF */
299 }
300}
void ADC12_Deinit(ADC_Type *base)
De-initialize the ADC12 module.
Definition fsl_adc12.c:174
Here is the call graph for this function:

◆ adc_lld_stop_conversion()

void adc_lld_stop_conversion ( ADCDriver *  adcp)

Stops an ongoing conversion.

Parameters
[in]adcppointer to the ADCDriver object

@notapi

Definition at line 375 of file hal_adc_lld.c.

375 {
376#ifndef KE1xF
377 const ADCConversionGroup *grpp = adcp->grpp;
378 /* Disable the Bandgap buffer if channel mask includes BANDGAP */
379 if (adcp->channel_mask & ADC_BANDGAP) {
380 /* Clear BGBE, ACKISO is w1c, avoid setting */
381 PMC->REGSC &= ~(PMC_REGSC_BGBE | PMC_REGSC_ACKISO);
382 }
383#endif /* KE1xF */
384}

◆ calibrate()

static void calibrate ( ADCDriver *  adcp)
static

Definition at line 65 of file hal_adc_lld.c.

65 {
66#ifdef KE1xF
67 ADC12_DoAutoCalibration(adcp->adc);
68#else
69 /* Clock Divide by 8, Use Bus Clock Div 2 */
70 /* At 48MHz this results in ADCCLK of 48/8/2 == 3MHz */
71 adcp->adc->CFG1 = ADCx_CFG1_ADIV(ADCx_CFG1_ADIV_DIV_8) |
72 ADCx_CFG1_ADICLK(ADCx_CFG1_ADIVCLK_BUS_CLOCK_DIV_2);
73
74 /* Use software trigger and disable DMA etc. */
75 adcp->adc->SC2 = 0;
76
77 /* Enable Hardware Average, Average 32 Samples, Calibrate */
78 adcp->adc->SC3 = ADCx_SC3_AVGE |
79 ADCx_SC3_AVGS(ADCx_SC3_AVGS_AVERAGE_32_SAMPLES) |
80 ADCx_SC3_CAL;
81
82 /* FIXME: May take several ms. Use an interrupt instead of busy wait */
83 /* Wait for calibration completion */
84 while (!(adcp->adc->SC1A & ADCx_SC1n_COCO))
85 ;
86
87 uint16_t gain = ((adcp->adc->CLP0 + adcp->adc->CLP1 + adcp->adc->CLP2 +
88 adcp->adc->CLP3 + adcp->adc->CLP4 + adcp->adc->CLPS) / 2) | 0x8000;
89 adcp->adc->PG = gain;
90
91 gain = ((adcp->adc->CLM0 + adcp->adc->CLM1 + adcp->adc->CLM2 +
92 adcp->adc->CLM3 + adcp->adc->CLM4 + adcp->adc->CLMS) / 2) | 0x8000;
93 adcp->adc->MG = gain;
94#endif /* KE1xF */
95}
status_t ADC12_DoAutoCalibration(ADC_Type *base)
Automate the hardware calibration.
Definition fsl_adc12.c:292

Referenced by adc_lld_start().

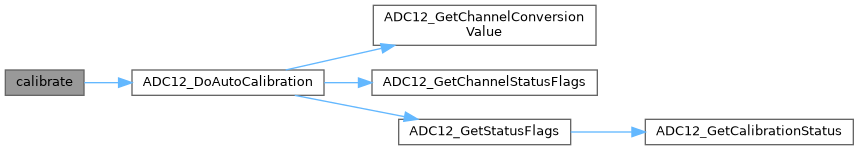

Here is the call graph for this function:
Here is the caller graph for this function:

◆ OSAL_IRQ_HANDLER() [1/3]

OSAL_IRQ_HANDLER ( KINETIS_ADC0_IRQ_VECTOR  )

Definition at line 163 of file hal_adc_lld.c.

163 {
164 OSAL_IRQ_PROLOGUE();
166 OSAL_IRQ_EPILOGUE();
167}
static void adc_lld_irq_handler(ADCDriver *adcp)
ADC interrupt handler.

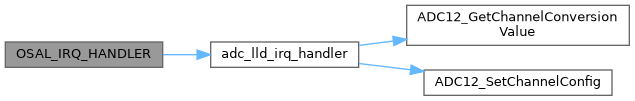

Here is the call graph for this function:

◆ OSAL_IRQ_HANDLER() [2/3]

OSAL_IRQ_HANDLER ( KINETIS_ADC1_IRQ_VECTOR  )

Definition at line 171 of file hal_adc_lld.c.

171 {
172 OSAL_IRQ_PROLOGUE();
174 OSAL_IRQ_EPILOGUE();
175}
Here is the call graph for this function:

◆ OSAL_IRQ_HANDLER() [3/3]

OSAL_IRQ_HANDLER ( KINETIS_ADC2_IRQ_VECTOR  )

Definition at line 179 of file hal_adc_lld.c.

179 {
180 OSAL_IRQ_PROLOGUE();
182 OSAL_IRQ_EPILOGUE();
183}
Here is the call graph for this function:

Variable Documentation

◆ ADCD1 [1/2]

ADCDriver ADCD1

ADC1 driver identifier.

Definition at line 44 of file hal_adc_lld.c.

Referenced by adc_lld_init(), adc_lld_start(), getMcuTemperature(), OSAL_IRQ_HANDLER(), portInitAdc(), readBatch(), and readSlowAnalogInputs().

◆ ADCD1 [2/2]

ADCDriver ADCD1
extern

ADC1 driver identifier.

Definition at line 44 of file hal_adc_lld.c.

Referenced by adc_lld_init(), adc_lld_start(), getMcuTemperature(), OSAL_IRQ_HANDLER(), portInitAdc(), readBatch(), and readSlowAnalogInputs().

◆ ADCD2 [1/2]

ADCDriver ADCD2

ADC2 driver identifier.

Definition at line 49 of file hal_adc_lld.c.

Referenced by adc_lld_init(), adc_lld_start(), OSAL_IRQ_HANDLER(), and portInitAdc().

◆ ADCD2 [2/2]

ADCDriver ADCD2
extern

ADC2 driver identifier.

Definition at line 49 of file hal_adc_lld.c.

Referenced by adc_lld_init(), adc_lld_start(), OSAL_IRQ_HANDLER(), and portInitAdc().

◆ ADCD3 [1/2]

ADCDriver ADCD3

ADC3 driver identifier.

Definition at line 54 of file hal_adc_lld.c.

Referenced by adc_lld_init(), adc_lld_start(), initTriggerScope(), OSAL_IRQ_HANDLER(), and portInitAdc().

◆ ADCD3 [2/2]

ADCDriver ADCD3
extern

ADC3 driver identifier.

Definition at line 54 of file hal_adc_lld.c.

Referenced by adc_lld_init(), adc_lld_start(), initTriggerScope(), OSAL_IRQ_HANDLER(), and portInitAdc().

◆ cfg1

uint32_t cfg1

ADC CFG1 register initialization data.

Note
All the required bits must be defined into this field.

Definition at line 264 of file hal_adc_lld.h.

◆ channel_mask

uint32_t channel_mask

Bitmask of channels for ADC conversion.

Definition at line 259 of file hal_adc_lld.h.

◆ sc3

uint32_t sc3

ADC SC3 register initialization data.

Note
All the required bits must be defined into this field.

Definition at line 269 of file hal_adc_lld.h.
