gppwm_channel_reader.h File Reference

Functions
expected< float >	readGppwmChannel (gppwm_channel_e channel)

Function Documentation

readGppwmChannel()

expected< float > readGppwmChannel

(

gppwm_channel_e

channel

)

Definition at line 9 of file gppwm_channel_reader.cpp.

                                                          {
    switch (channel) {
    case GPPWM_Zero:
        return 0;
    case GPPWM_Rpm:
        return Sensor::get(SensorType::Rpm);
    case GPPWM_Tps:
        return Sensor::get(SensorType::Tps1);
    case GPPWM_Map:
        return Sensor::get(SensorType::Map);
    case GPPWM_Clt:
        return Sensor::get(SensorType::Clt);
    case GPPWM_Iat:
        return Sensor::get(SensorType::Iat);
    case GPPWM_LuaGauge1:
        return Sensor::get(SensorType::LuaGauge1);
    case GPPWM_LuaGauge2:
        return Sensor::get(SensorType::LuaGauge2);
    case GPPWM_FuelLoad:
        return getFuelingLoad();
    case GPPWM_IgnLoad:
        return getIgnitionLoad();
    case GPPWM_AuxTemp1:
        return Sensor::get(SensorType::AuxTemp1);
    case GPPWM_AuxTemp2:
        return Sensor::get(SensorType::AuxTemp2);
    case GPPWM_AccelPedal:
        return Sensor::get(SensorType::AcceleratorPedal);
    case GPPWM_Vbatt:
        return Sensor::get(SensorType::BatteryVoltage);
#if EFI_SHAFT_POSITION_INPUT
    case GPPWM_VVT_1I:
        return engine->triggerCentral.getVVTPosition(/*bankIndex*/0, /*camIndex*/0);
    case GPPWM_VVT_1E:
        return engine->triggerCentral.getVVTPosition(/*bankIndex*/0, /*camIndex*/1);
    case GPPWM_VVT_2I:
        return engine->triggerCentral.getVVTPosition(/*bankIndex*/1, /*camIndex*/0);
    case GPPWM_VVT_2E:
        return engine->triggerCentral.getVVTPosition(/*bankIndex*/1, /*camIndex*/1);
#else
    case GPPWM_VVT_1I:
    case GPPWM_VVT_1E:
    case GPPWM_VVT_2I:
    case GPPWM_VVT_2E:
        return 0;
#endif // EFI_SHAFT_POSITION_INPUT
    case GPPWM_EthanolPercent:
        return Sensor::get(SensorType::FuelEthanolPercent);
    case GPPWM_AuxLinear1:
        return Sensor::get(SensorType::AuxLinear1);
    case GPPWM_AuxLinear2:
        return Sensor::get(SensorType::AuxLinear2);
    case GPPWM_AuxLinear3:
        return Sensor::get(SensorType::AuxLinear3);
    case GPPWM_AuxLinear4:
        return Sensor::get(SensorType::AuxLinear4);
    case GPPWM_GppwmOutput1:
        return (float)engine->outputChannels.gppwmOutput[0];
    case GPPWM_GppwmOutput2:
        return (float)engine->outputChannels.gppwmOutput[1];
    case GPPWM_GppwmOutput3:
        return (float)engine->outputChannels.gppwmOutput[2];
    case GPPWM_GppwmOutput4:
        return (float)engine->outputChannels.gppwmOutput[3];
    case GPPWM_DetectedGear:
#if EFI_VEHICLE_SPEED
        return Sensor::get(SensorType::DetectedGear);
#else
        return 0;
#endif // EFI_VEHICLE_SPEED
    case GPPWM_BaroPressure:
        return Sensor::get(SensorType::BarometricPressure);
    case GPPWM_Egt1:
        return Sensor::get(SensorType::EGT1);
    case GPPWM_Egt2:
        return Sensor::get(SensorType::EGT2);
    case GPPWM_VehicleSpeed:
        return Sensor::get(SensorType::VehicleSpeed);
    case GPPWM_OilPressure:
        return Sensor::get(SensorType::OilPressure);
    case GPPWM_OilTemp:
        return Sensor::get(SensorType::OilTemperature);
    case GPPWM_FuelPressure:
        return Sensor::get(SensorType::FuelPressureInjector);
    case GPPWM_ThrottleRatio:
        return getThrottlePressureRatio(Sensor::getOrZero(SensorType::Map));
    }
    return unexpected;
}

Referenced by calculateBlend(), BoostController::getOpenLoop(), GppwmChannel::getOutput(), ShiftTorqueReductionController::getSparkSkipRatio(), ShiftTorqueReductionController::getTorqueReductionIgnitionRetard(), and ShiftTorqueReductionController::updateTimeConditionSatisfied().

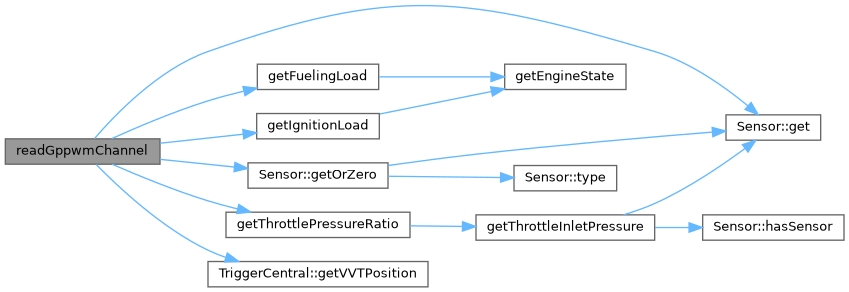

Here is the call graph for this function:

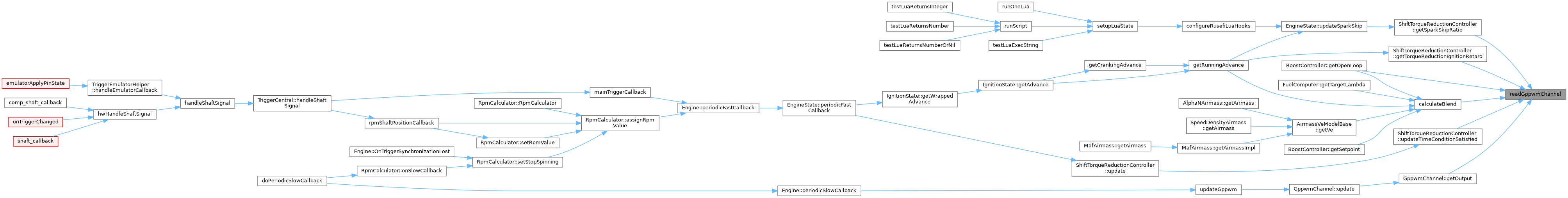

Here is the caller graph for this function:

Go to the source code of this file.
