dac.h File Reference

Data Structures
class	Dac

Functions
void	initDac ()
void	setDacVoltage (int channel, float voltage)

Function Documentation

initDac()

void initDac

(

)

Definition at line 42 of file dac.cpp.

               {
    bool dacIsUsed = false;
    for (size_t i = 0;i<DAC_OUTPUT_COUNT;i++) {
        Gpio pin = engineConfiguration->dacOutputPins[i];
        if (isBrainPinValid(pin)) {
            // setting up the output pin as analog as suggested by the Reference Manual.
            efiSetPadMode("dac", pin, PAL_MODE_INPUT_ANALOG);
            dacIsUsed = true;
        }
    }
    if (dacIsUsed) {
        // DAC peripheral changes associated pin behaviour regardless of actual pin mode
        dacs[0].Start(dacConfig);
        dacs[1].Start(dacConfig);
    }
}

Referenced by initHardware().

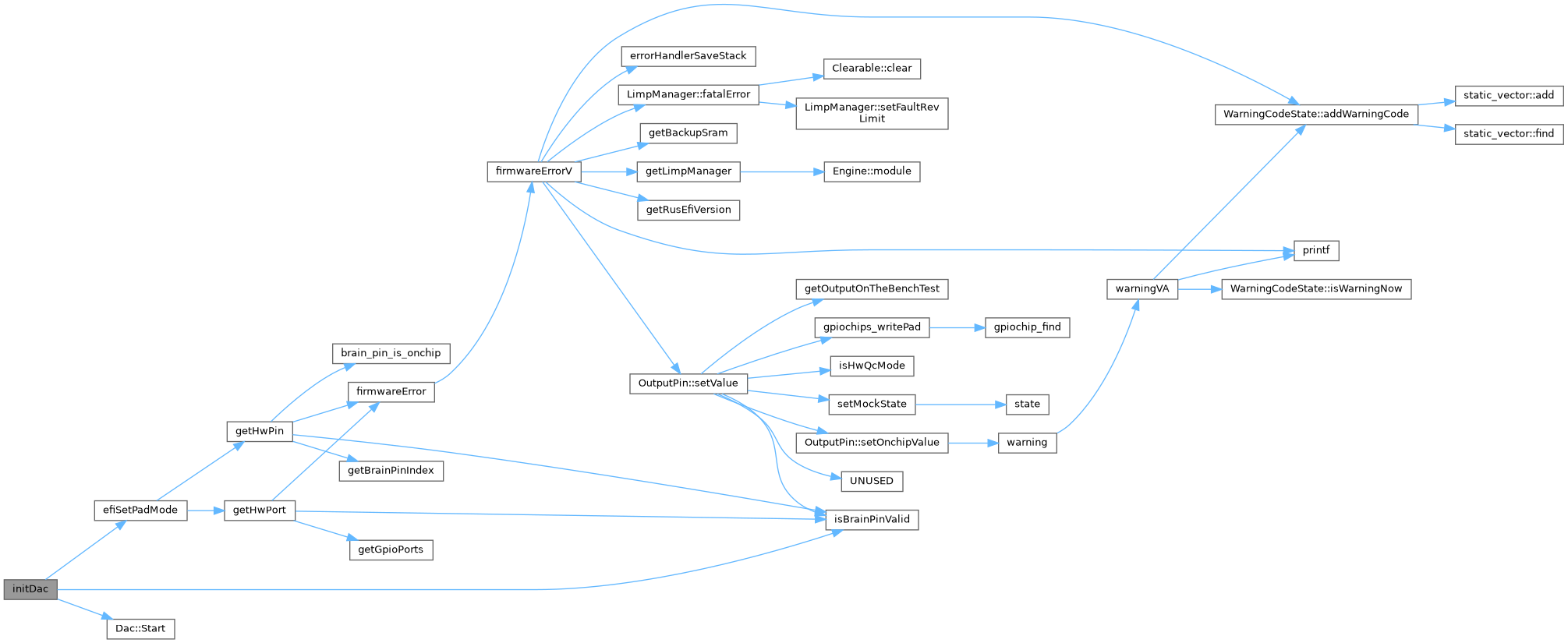

Here is the call graph for this function:

Here is the caller graph for this function:

setDacVoltage()

void setDacVoltage	(	int	channel,
		float	voltage
	)

Definition at line 59 of file dac.cpp.

                                               {
    dacs[channel].SetVoltage(0, voltage);
}

Referenced by configureRusefiLuaHooks().

Here is the call graph for this function:

Here is the caller graph for this function:

Go to the source code of this file.
