TunerstudioThread Class Reference

#include <tunerstudio.h>

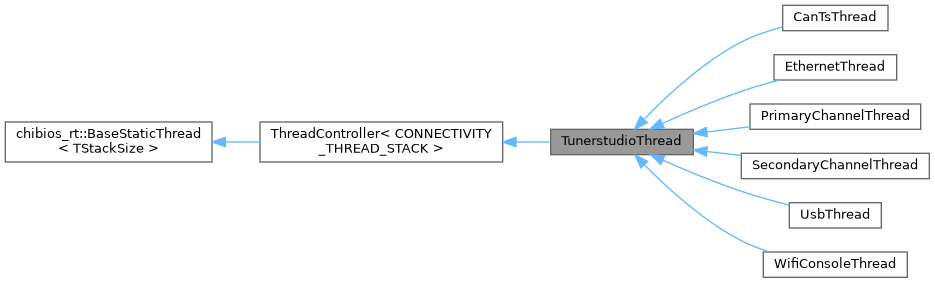

Inheritance diagram for TunerstudioThread:

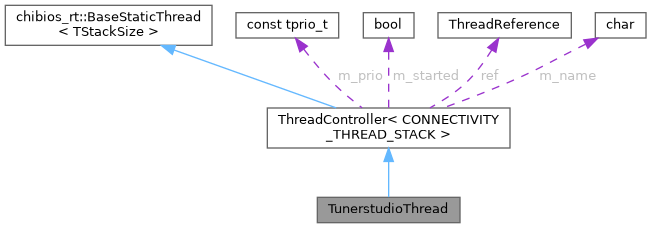

Collaboration diagram for TunerstudioThread:

Public Member Functions
	TunerstudioThread (const char *name)
virtual TsChannelBase *	setupChannel ()=0
void	ThreadTask () override
Public Member Functions inherited from ThreadController< CONNECTIVITY_THREAD_STACK >
	ThreadController (const char *name, tprio_t priority)
void	start ()
	Start the thread.
void	stop ()
	Request thread termination and waits for termination.

Additional Inherited Members
Protected Member Functions inherited from ThreadController< CONNECTIVITY_THREAD_STACK >
void	main () override
Protected Attributes inherited from ThreadController< CONNECTIVITY_THREAD_STACK >
const char *const	m_name

Detailed Description

Definition at line 79 of file tunerstudio.h.

Constructor & Destructor Documentation

TunerstudioThread()

TunerstudioThread::TunerstudioThread ( const char *  name )

inline

Definition at line 81 of file tunerstudio.h.

        : ThreadController(name, PRIO_CONSOLE)
    {
    }

Member Function Documentation

setupChannel()

virtual TsChannelBase * TunerstudioThread::setupChannel ( )

pure virtual

Referenced by ThreadTask().

Here is the caller graph for this function:

ThreadTask()

void TunerstudioThread::ThreadTask ( )

overridevirtual

Implements ThreadController< CONNECTIVITY_THREAD_STACK >.

Definition at line 741 of file tunerstudio.cpp.

                                   {
    auto channel = setupChannel();

    // No channel configured for this thread, cancel.
    if (!channel || !channel->isConfigured()) {
        return;
    }

    // Until the end of time, process incoming messages.
    while (true) {
        if (tsProcessOne(channel) == 0) {
            onDataArrived(true);
        } else {
            onDataArrived(false);
        }
    }
}

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• console/binary/tunerstudio.h
• console/binary/tunerstudio.cpp
