binary_logging.cpp File Reference

Functions
int	getSdCardFieldsCount ()
static constexpr uint16_t	computeFieldsRecordLength ()
static size_t	writeFileHeader (Writer &outBuffer)
static size_t	writeSdBlock (Writer &outBuffer)
size_t	writeSdLogLine (Writer &bufferedWriter)
void	resetFileLogging ()

Variables
static scaled_channel< uint32_t, TIME_PRECISION >	packedTime
static uint64_t	binaryLogCount = 0
static const uint16_t	recordLength = computeFieldsRecordLength()
static uint8_t	blockRollCounter = 0

Function Documentation

computeFieldsRecordLength()

static constexpr uint16_t computeFieldsRecordLength ( )

staticconstexpr

Definition at line 34 of file binary_logging.cpp.

                                                      {
    uint16_t recLength = 0;
    for (size_t i = 0; i < efi::size(fields); i++) {
        recLength += fields[i].getSize();
    }

    return recLength;
}

Here is the call graph for this function:

getSdCardFieldsCount()

int getSdCardFieldsCount

(

)

Definition at line 30 of file binary_logging.cpp.

                           {
    return efi::size(fields);
}

Referenced by sdStatistics().

Here is the caller graph for this function:

resetFileLogging()

void resetFileLogging

(

)

Definition at line 171 of file binary_logging.cpp.

                        {
    binaryLogCount = 0;
    blockRollCounter = 0;
}

Referenced by sdLogger().

Here is the caller graph for this function:

writeFileHeader()

static size_t writeFileHeader ( Writer &  outBuffer )

static

Definition at line 47 of file binary_logging.cpp.

                                                 {
    size_t writen = 0;
    char buffer[MLQ_HEADER_SIZE];
    // File format: MLVLG\0
    strncpy(buffer, "MLVLG", 6);

    // Format version = 02
    buffer[6] = 0;
    buffer[7] = 2;

    // Timestamp
    buffer[8] = 0;
    buffer[9] = 0;
    buffer[10] = 0;
    buffer[11] = 0;

    // Info data start
    buffer[12] = 0;
    buffer[13] = 0;
    buffer[14] = 0;
    buffer[15] = 0;

    size_t headerSize = MLQ_HEADER_SIZE + efi::size(fields) * MLQ_FIELD_HEADER_SIZE;

    // Data begin index: begins immediately after the header
    buffer[16] = (headerSize >> 24) & 0xFF;
    buffer[17] = (headerSize >> 16) & 0xFF;
    buffer[18] = (headerSize >> 8) & 0xFF;
    buffer[19] = headerSize & 0xFF;

    // Record length - length of a single data record: sum size of all fields
    buffer[20] = recordLength >> 8;
    buffer[21] = recordLength & 0xFF;

    // Number of logger fields
    int fieldsCount = efi::size(fields);
    buffer[22] = fieldsCount >> 8;
    buffer[23] = fieldsCount;

    outBuffer.write(buffer, MLQ_HEADER_SIZE);
    writen += MLQ_HEADER_SIZE;

    // Write the actual logger fields, offset 22
    for (size_t i = 0; i < efi::size(fields); i++) {
        writen += fields[i].writeHeader(outBuffer);
    }

    return writen;
}

Referenced by writeSdLogLine().

Here is the call graph for this function:

Here is the caller graph for this function:

writeSdBlock()

static size_t writeSdBlock ( Writer &  outBuffer )

static

Definition at line 99 of file binary_logging.cpp.

                                              {
    size_t writen = 0;
    static char buffer[16];

    // Offset 0 = Block type, standard data block in this case
    buffer[0] = 0;

    // Offset 1 = rolling counter sequence number
    buffer[1] = blockRollCounter++;

    // Offset 2, size 2 = Timestamp at 10us resolution
    efitimeus_t nowUs = getTimeNowUs();
    uint16_t timestamp = nowUs / 10;
    buffer[2] = timestamp >> 8;
    buffer[3] = timestamp & 0xFF;

    // TODO: check ret value!
    outBuffer.write(buffer, 4);
    writen += 4;

    // todo: add a log field for SD card period
//  prevSdCardLineTime = nowUs;

    packedTime = getTimeNowMs() * 1.0 / TIME_PRECISION;

    uint8_t sum = 0;
    for (size_t fieldIndex = 0; fieldIndex < efi::size(fields); fieldIndex++) {
        #if EFI_UNIT_TEST
            // dark magic: most elements of log_fields_generated.h were const-evaluated against 'nullptr' engine, let's add it!
            void *offset = fields[fieldIndex].needsEngineOffsetHack(sizeof(*engine)) ? engine : nullptr;
        #else
            void *offset = nullptr;
        #endif

        size_t entrySize = fields[fieldIndex].writeData(buffer, offset);

        for (size_t byteIndex = 0; byteIndex < entrySize; byteIndex++) {
            // "CRC" at the end is just the sum of all bytes
            sum += buffer[byteIndex];
        }
        // TODO: check ret value!
        outBuffer.write(buffer, entrySize);
        writen += entrySize;
    }

    buffer[0] = sum;
    // 1 byte checksum footer
    outBuffer.write(buffer, 1);
    writen += 1;

    return writen;
}

Referenced by writeSdLogLine().

Here is the call graph for this function:

Here is the caller graph for this function:

writeSdLogLine()

size_t writeSdLogLine

(

Writer &

bufferedWriter

)

Definition at line 152 of file binary_logging.cpp.

                                              {
#if EFI_PROD_CODE
extern bool main_loop_started;
    if (!main_loop_started)
        return 0;
#endif //EFI_PROD_CODE

    if (binaryLogCount == 0) {
        binaryLogCount++;

        return writeFileHeader(bufferedWriter);
    } else {
        binaryLogCount++;

        updateTunerStudioState();
        return writeSdBlock(bufferedWriter);
    }
}

Referenced by mlgLogger().

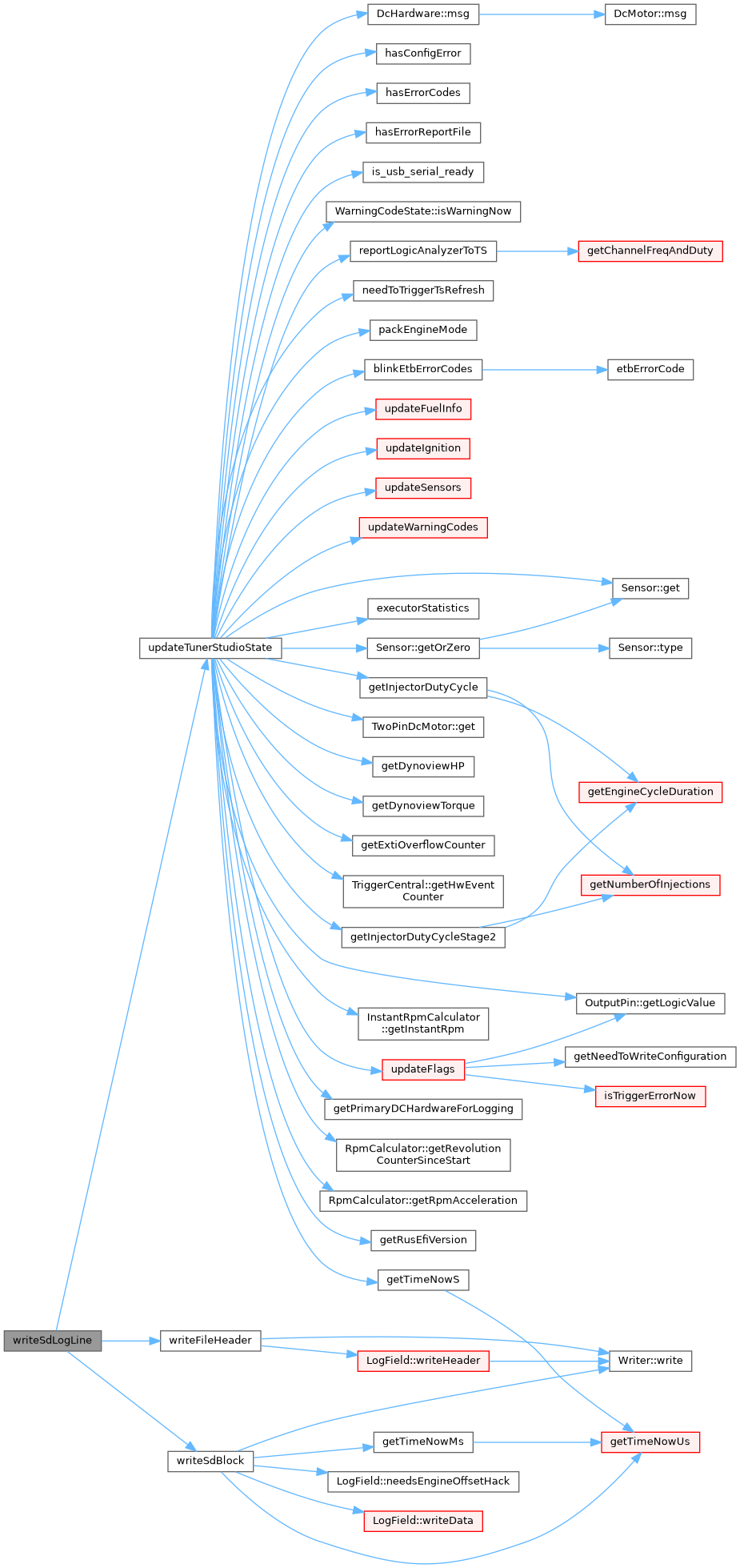

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

binaryLogCount

uint64_t binaryLogCount = 0

static

Definition at line 43 of file binary_logging.cpp.

Referenced by resetFileLogging(), and writeSdLogLine().

blockRollCounter

uint8_t blockRollCounter = 0

static

Definition at line 97 of file binary_logging.cpp.

Referenced by resetFileLogging(), and writeSdBlock().

packedTime

scaled_channel<uint32_t, TIME_PRECISION> packedTime

static

Definition at line 23 of file binary_logging.cpp.

Referenced by writeSdBlock().

recordLength

const uint16_t recordLength = computeFieldsRecordLength()

static

Definition at line 45 of file binary_logging.cpp.

Referenced by writeFileHeader().
